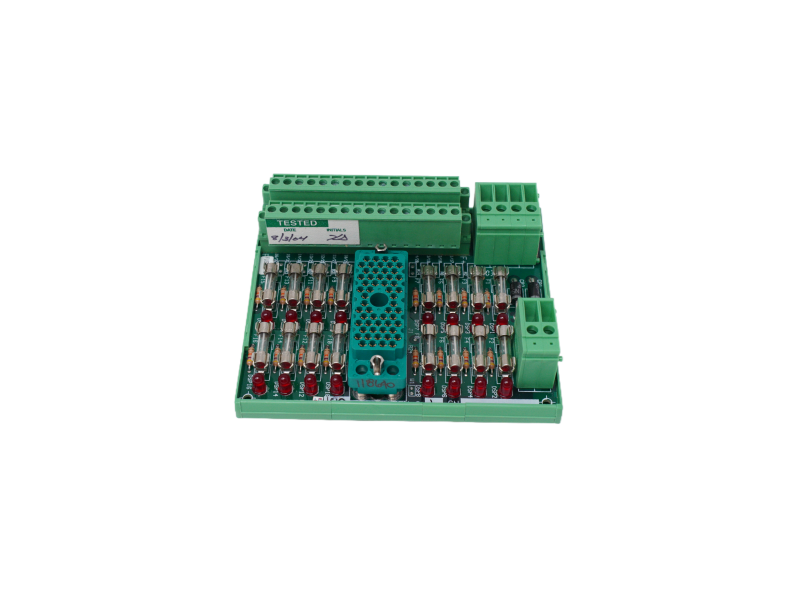

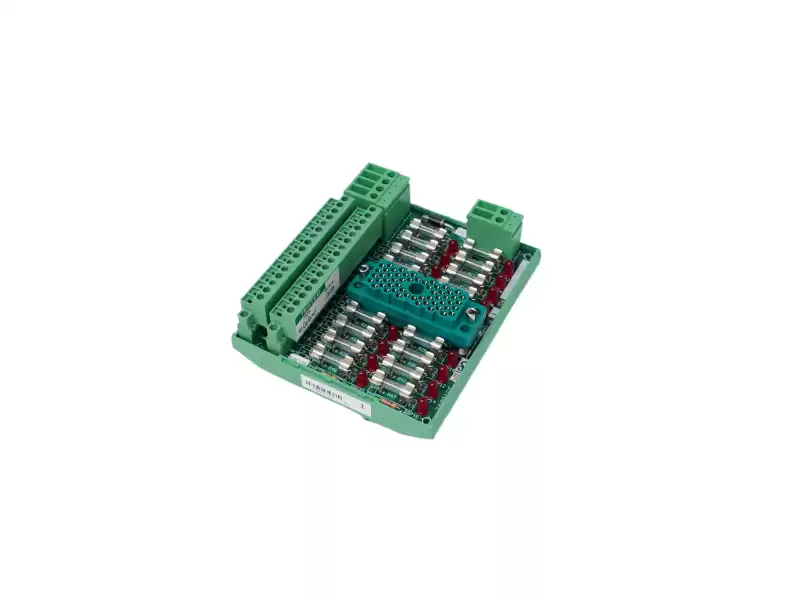

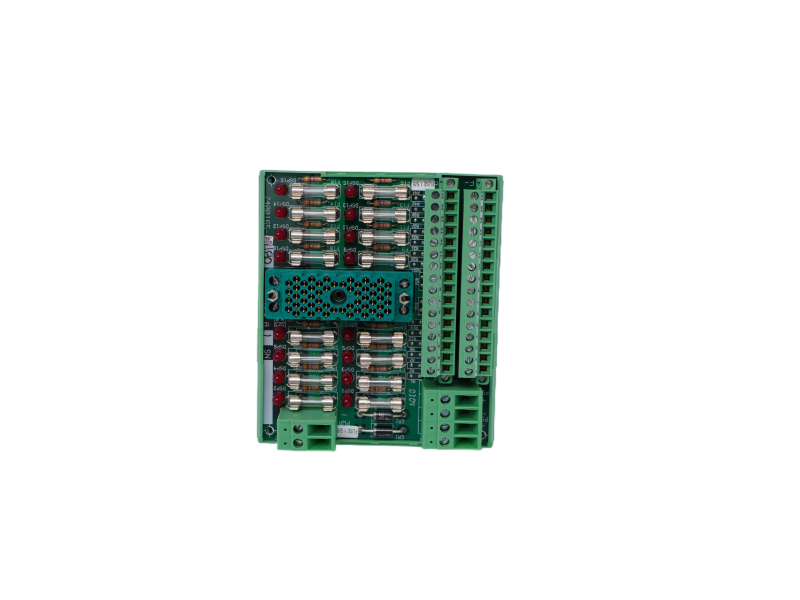

1. Function: Front-removable, high-density termination strip for 60 I/O signals (2 × 30 points)
2. Tricon Use: mates with 3500/E, 3600/E, 3700/A, 3800/E and all "long" I/O modules (3533E, 3625, 3721, etc.)
3. Part Number: 3000510-180 (also printed on side label "510-180")
4. Poles: 60 screw-clamp terminals, captive rising cage, 3 mm screwdriver
5. Wire Range: 0.2 – 4 mm² (24 – 12 AWG) single or ferrule
6. Rating: 300 V / 15 A per point; 105 °C max UL94-V0 housing
7. Keying: yellow plastic guide pegs, matches yellow module latch—impossible to insert on analogue modules
Wiring Plan (top view)
|
Row A (1-30)
|
Row B (31-60)
|
|
|
Odd = signal (S)
|
Even = return (R)
|
factory default, reversible by jumper.
|
Cover inside prints mirror-image label—readable when door is 90° open.
l Installation Steps
1. Power-off zone; verify zero-energy
2. Pull module forward 30 mm (keys still engaged)
3. Slide block straight down until latches click
4. Torque screws 0.5 N·m; tug test each conductor
5. Snap clear plastic shield to protect live parts
6. Push module fully home; lock front screw
Hot-swap: block can be changed without removing the module—only the zone must be de-energised.
l Cross-Reference & Substitutes
1. 3000510-160: 48-pole version for 40-channel cards (3664, 4351B)
2. 3000510-220: 90-pole for dual 64-channel modules on RXM rack
3. 510-180 cannot replace above; keying pegs differ.
