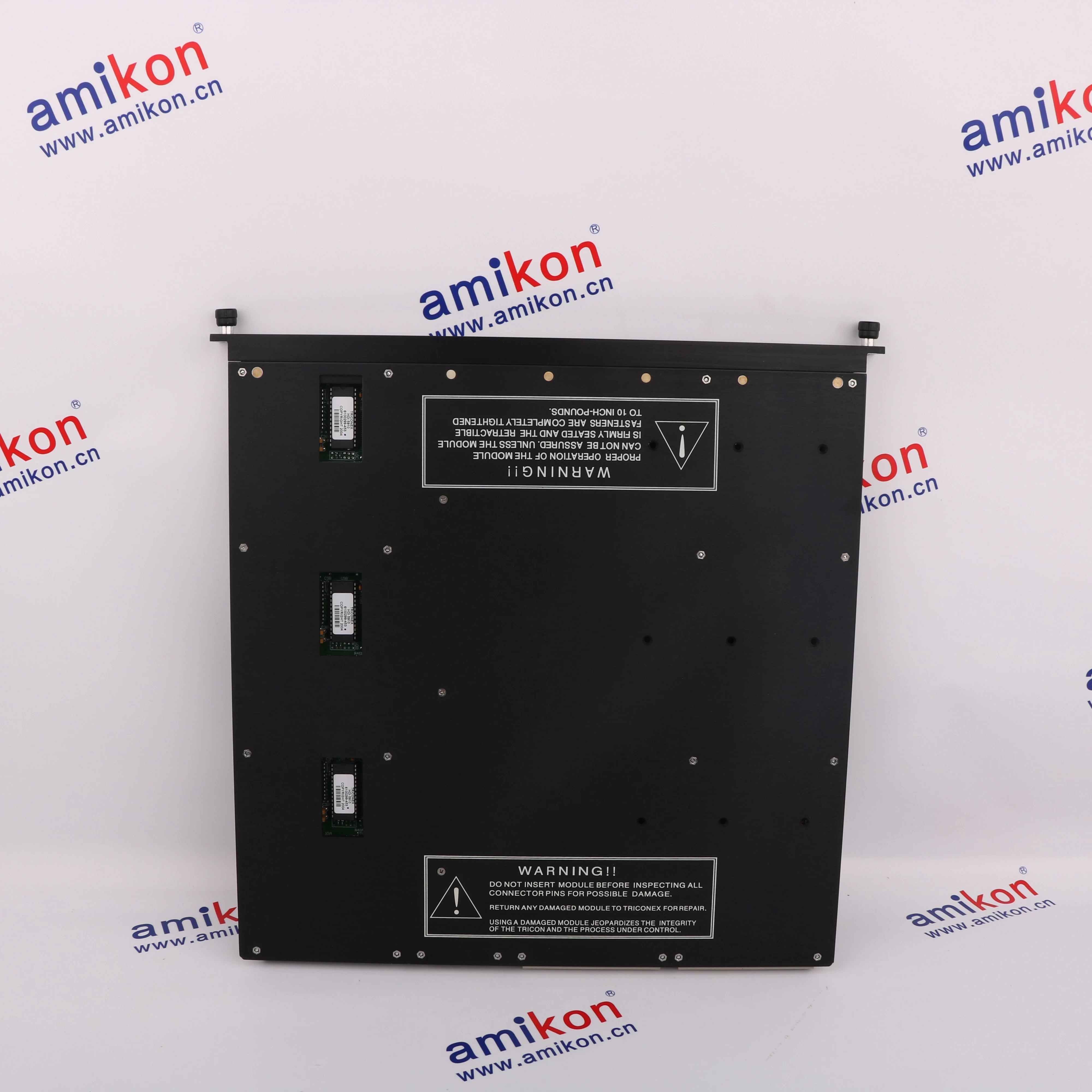

Triconex 3504E 24/48Vdc Digital Input
Email: sales@amikon.cn
64-Point Digital Input
Modules
Each 64-point Digital Input (DI)
module has three isolated channels
which independently process all data
input to the module. A microprocessor
on each channel scans each input point,
compiles data and transmits it to the
Main Processors on demand. Then
input data is voted at the Main Proces-
sors just prior to processing to ensure
the highest integrity.
All Digital Input Modules sustain
complete, ongoing diagnostics for each
channel. A failure on any channel acti-
vates the Fault indicator which in turn
activates the chassis alarm. A TMR
module is guaranteed to operate prop-
erly in the presence of a single fault and may operate properly with certain kinds
of multiple faults.
All Digital Input Modules support hot-
spare modules and require a separate
external termination panel (ETP) with a
cable interface to the Tricon backplane.
Each module is mechanically keyed to
prevent improper installation in a
chassis.
The Model 3504E High-Density
Digital Input Module continuously
verifies the ability of the Tricon to
detect transitions to the opposite state.
On this TMR module, all critical signal
paths are 100 percent triplicated for
guaranteed safety and maximum avail-
ability. Each channel conditions signals
independently between the field and the
Tricon.
The Model 3564 Single Digital Input
Module is optimized for safety-critical
applications where low cost is more
important than maximum availability.
On single modules, only those portions
of the signal path which are required to
ensure safe operation are triplicated.
Special self-test circuitry detects all
stuck-On and stuck-Off fault conditions
in less than half a second. If a single
module detects an input fault, it reports
that point as Off, which may cause a
glitch during switch-over to a hot-spare
module.
INFORMATION
|
Model Number
|
3504E
|
|
Type
|
TMR, DI
|
|
Voltage
|
24 or 48 VDC
|
|
Points
|
64, commoned, DC coupled
|
|
DC Range
|
20-72 VDC
|
|
Maximum Voltage
|
72 VDC
|
|
Nominal Turn-On
|
negligible
|
|
Typical Hysteresis
|
4 VDC/7 VDC
|
|
Minimum Point Isolation
|
n/a
|
|
Input Status
|
1 per point
|
|
Module Status
|
PASS, FAULT, ACTIVE
|
|
Color Code
|
Dark Red
|
