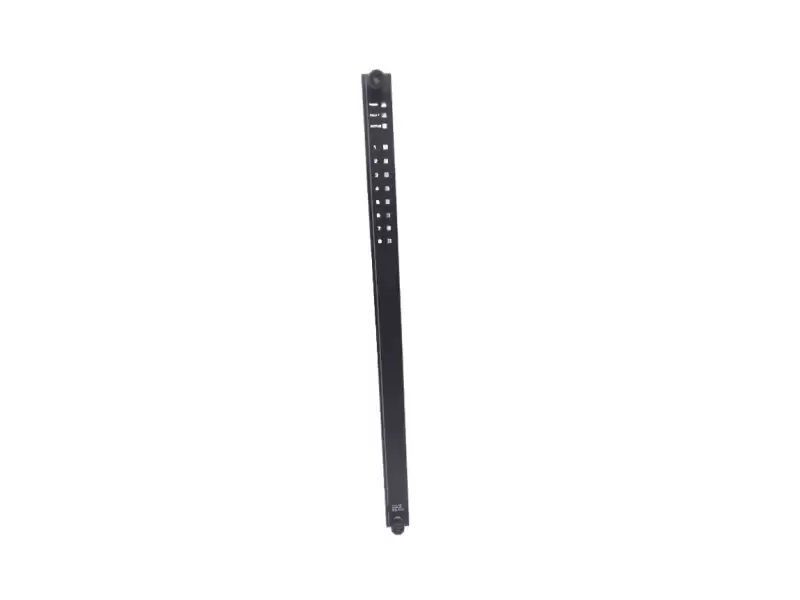

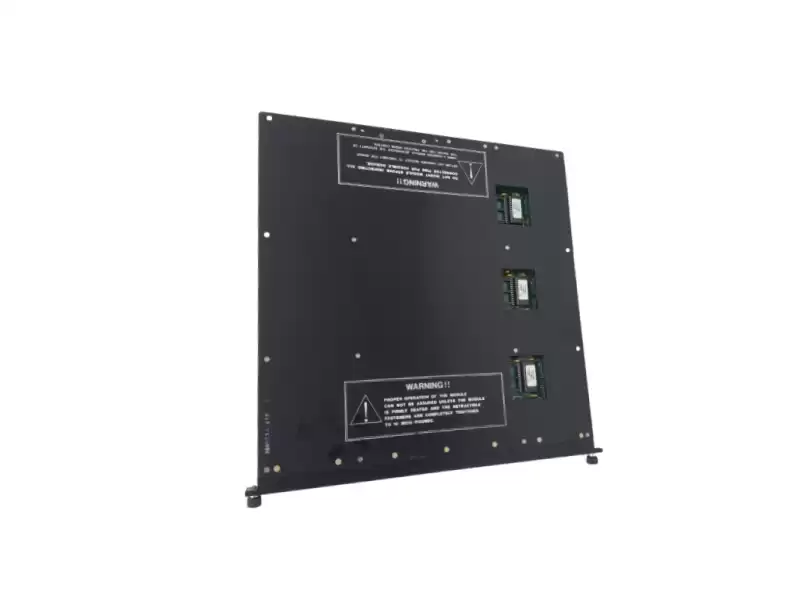

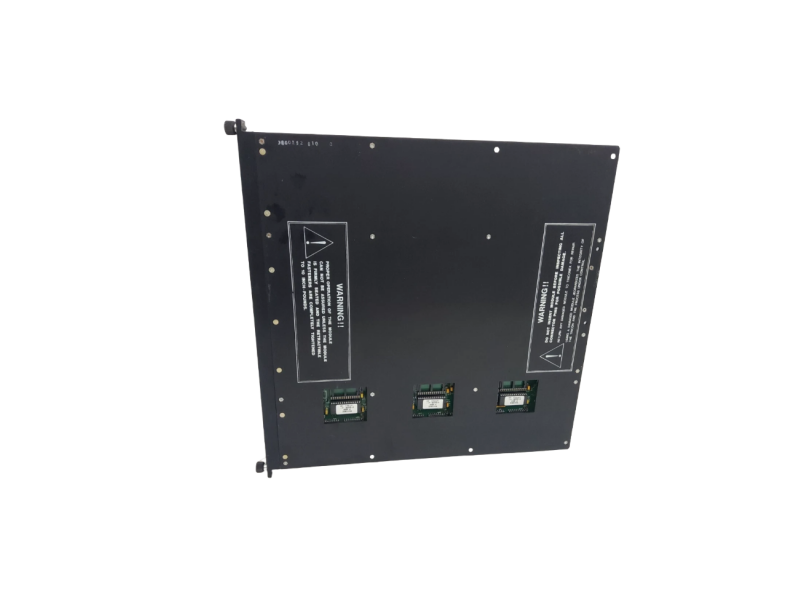

Model 3510 is Tricon’s TMR Pulse Input card designed for 20 Hz – 20 kHz signals from passive magnetic pickups on compressors, turbines, pumps or flow-meters.
Eight non-commoned, fully-differential channels deliver 1 µs resolution and 0.01 % accuracy at 1 kHz+, while triple-channel voting keeps SIL-3 integrity intact.
Typical uses include speed control, overspeed-trip verification, anti-surge logic and flow-rate calculation in oil & gas, chemical and power plants.
Core specification (25 °C unless noted)
|
Feature
|
Value
|
|
Channels
|
8, individually isolated
|
|
Input range
|
1.5 – 200 V p-p (20 Hz – 15 kHz)
|
|
Frequency span
|
20 – 20 000 Hz (operates to 40 kHz with relaxed accuracy)
|
|
Counter resolution
|
1 µs
|
|
Accuracy
|
±0.01 % (1 – 20 kHz); ±0.1 % (100 – 999 Hz); ±1 % (20 – 99 Hz)
|
|
Min. pulse width
|
25 µs
|
|
Over-voltage
|
±150 VDC continuous
|
|
Update / voting
|
50 ms typical
|
|
Logic power
|
< 20 W
|
|
Isolation
|
1 500 VDC channel-to-bus
|
|
Hot-spare
|
supported
|
|
Colour code
|
Light-purple label
|
Sales contact
PLC Autocontroller
Email: ab@mooreplc.com | Phone/Whatsapp: +86-18106909650 | WeChat: dcsfcs
Attn: Sales Manager May
Top-selling TRICONEX modules we regularly ship
|
Model
|
Description
|
Notes
|
|
3008
|
Main Processor (v10)
|
Drop-in for v9.6+
|
|
8311
|
24 VDC Power Module
|
175 W @ 60 °C
|
|
3503E
|
32-pt TMR DI, 24 VDC
|
Enhanced diagnostics
|
|
3625
|
32-pt TMR DO, 24 VDC
|
0.5 A/point
|
|
3664
|
64-pt DO, 24 VDC
|
Cost-efficient
|
|
3700A
|
64-ch AI, 0–5/10 V
|
16-bit resolution
|
|
3721
|
64-ch AI, 4–20 mA
|
Differential
|
|
3805E
|
8-ch AO, 4–20 mA
|
HART ready
|
|
4351B
|
Communication Module
|
RS-485 / Modbus
|
|
8111
|
RXM Remote Extender
|
Fibre up to 4 km
|
|
4211
|
Remote Expander
|
Copper/fibre hybrid
|
