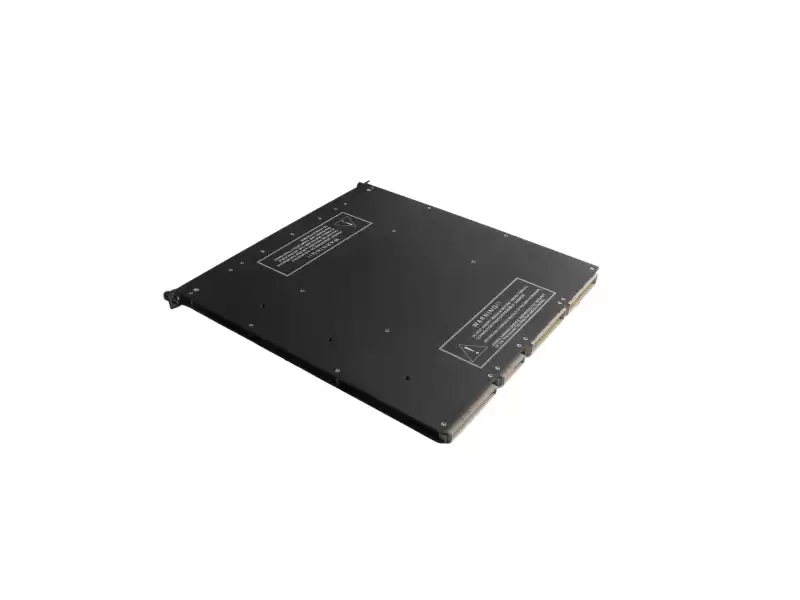

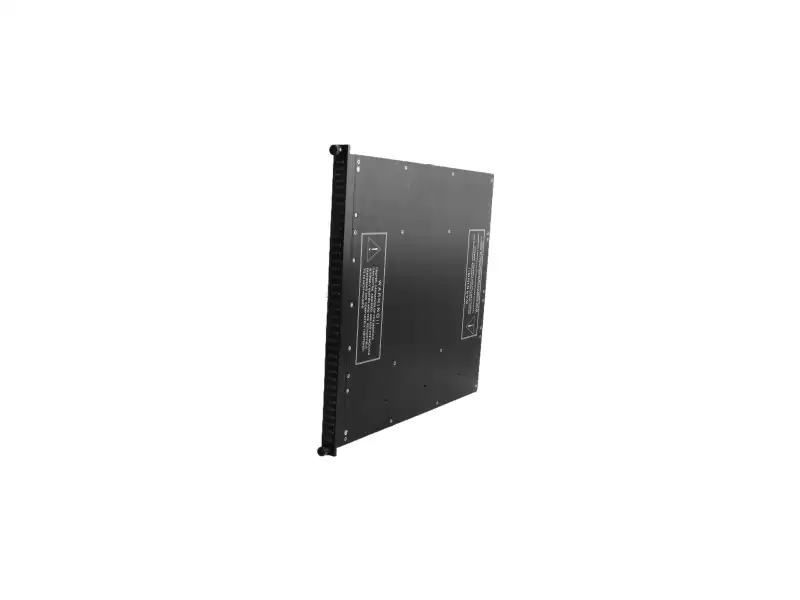

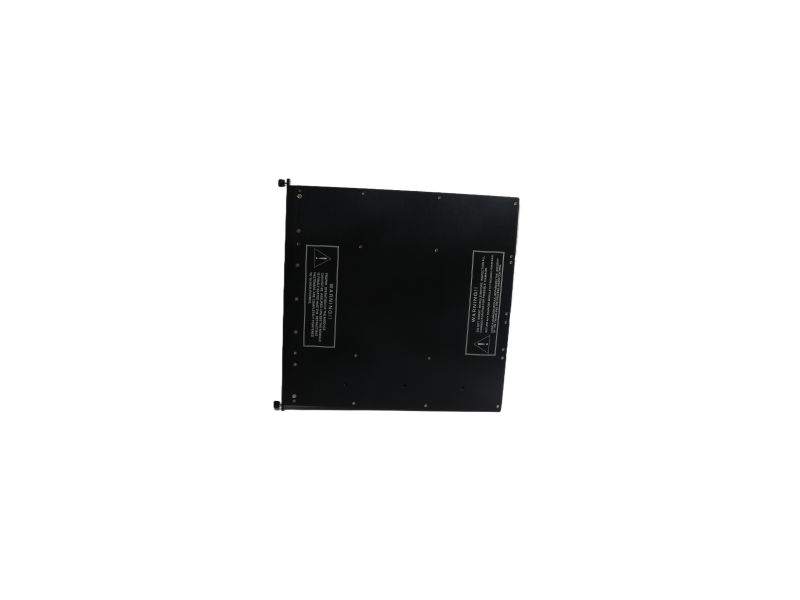

Triconex 3625A – 24 VDC, 32-point, channel-isolated, TÜV SIL3 certified
When your safety logic demands solid proof-testing, the 3625A remains the “gold-standard” DO card of the Tricon family.
Buyers’ most-asked specs are condensed in Table 1.
Table 1 – 3625A quick spec
|
Item
|
Value
|
|
Part number
|
3625A
|
|
Rated voltage
|
24 VDC (operates 20–32 V)
|
|
Channels
|
32, fully isolated
|
|
Load per pt
|
0.5 A; 4 A max per module
|
|
Surge
|
1 A for 20 ms
|
|
Isolation
|
250 Vrms ch-ch & ch-grd
|
|
Response
|
1 ms typical ON / 1 ms OFF
|
|
Internal fuse
|
Electronic, self-limiting
|
|
Safety
|
SIL3 IEC 61508, TÜV 968/EZ 799
|
|
Temperature
|
-40 °C … +70 °C (G3 coating)
|
|
Compatibility
|
Tricon v10–v11, hot-spare ready
|
Why 3625A instead of 3625N?
The “A” revision ships with G3 conformal coating and a wider VDC tolerance—ideal for offshore or desert skids where battery float can hit 30 V.
Applications
The TRICONEX 3625A is commonly used in:
Emergency Shutdown Systems (ESD)
Fire & Gas Safety Systems
Turbine and Compressor Control
Refinery and Chemical Plant Safety
