1. Module at a Glance

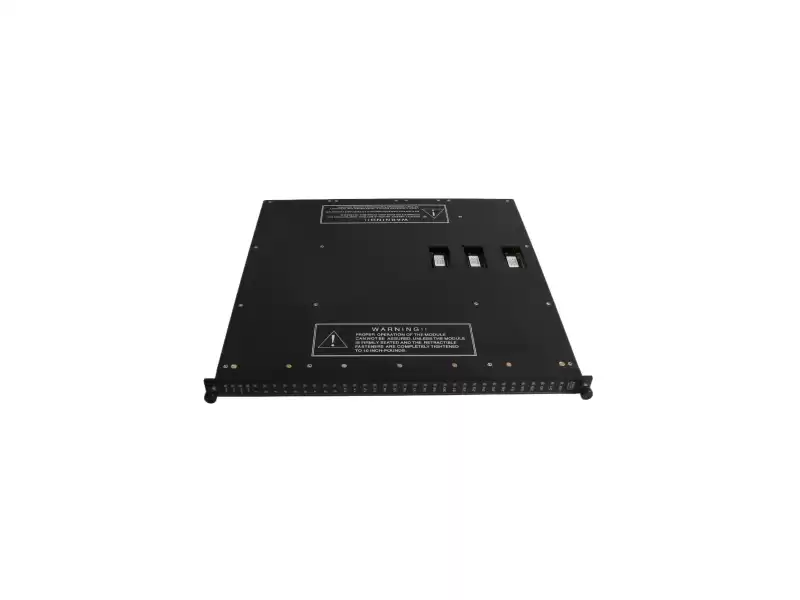

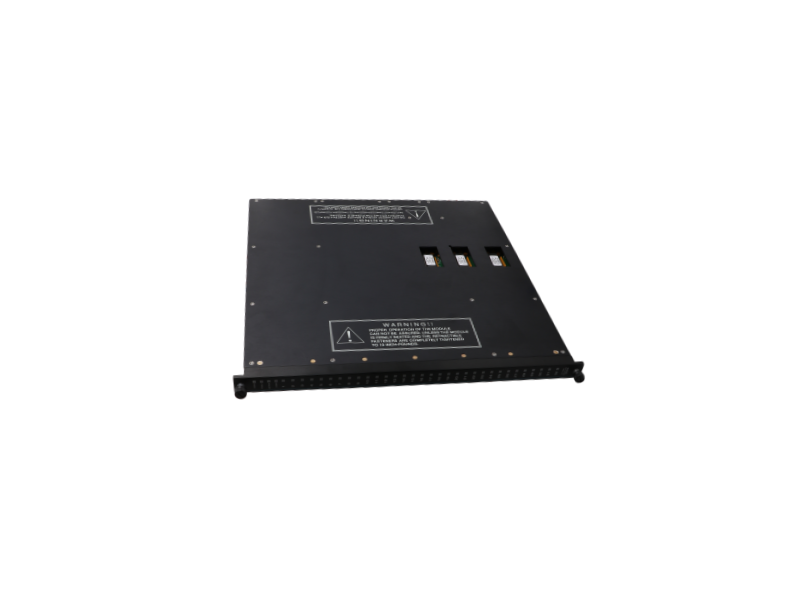

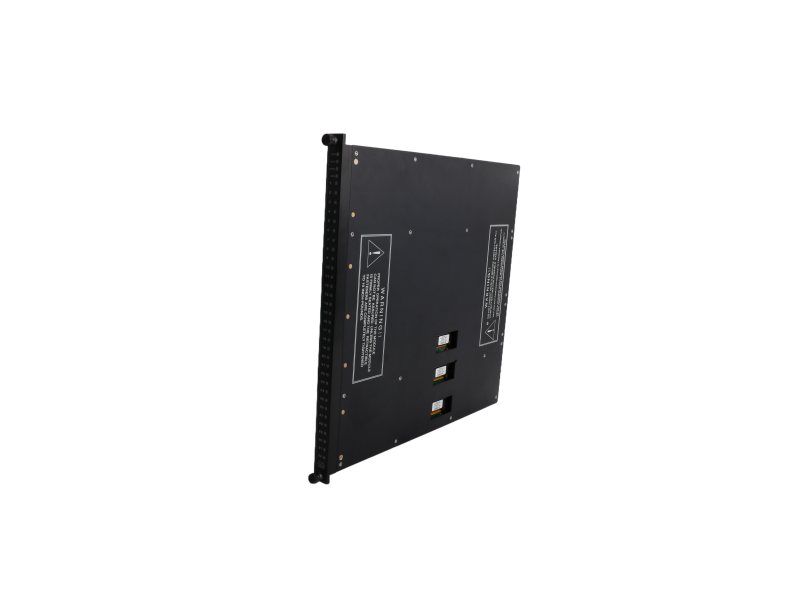

ü 32-channel dual digital output, SIL 3 certified for Tricon TMR systems
ü 2 A continuous / 10 A surge per channel, 24 VDC transistor sink
ü 2 ms typical response, hot-swappable for on-line replacement
2. Key Electrical Data
|
Item
|
Value (per channel)
|
|
Output type
|
Transistor current-sink
|
|
Rated voltage
|
24 VDC (16…30 V)
|
|
Rated current
|
2 A continuous, 10 A 100 ms surge
|
|
Off-state leakage
|
≤ 0.5 mA @ 24 V
|
|
On-state drop
|
≤ 0.3 V @ 2 A
|
|
Isolation
|
2 500 Vrms channel-to-backplane
|
|
Response time
|
≤ 2 ms
|
|
Protection
|
short-circuit, overload, over-temp, surge
|
3. TMR Safety Architecture
ü Internal 2oo3 voting, keeps running on single fault
ü MTBF > 100 years, meets IEC 61508 SIL 3
ü Channel-level diagnostics with LED & system log alarms
4. Typical Applications
ü ESD emergency shutdown, F&G fire & gas systems
ü Offshore wells, refineries, power-plant auxiliary control
ü High-speed driving of valves, pumps, sirens & beacons
