What it is

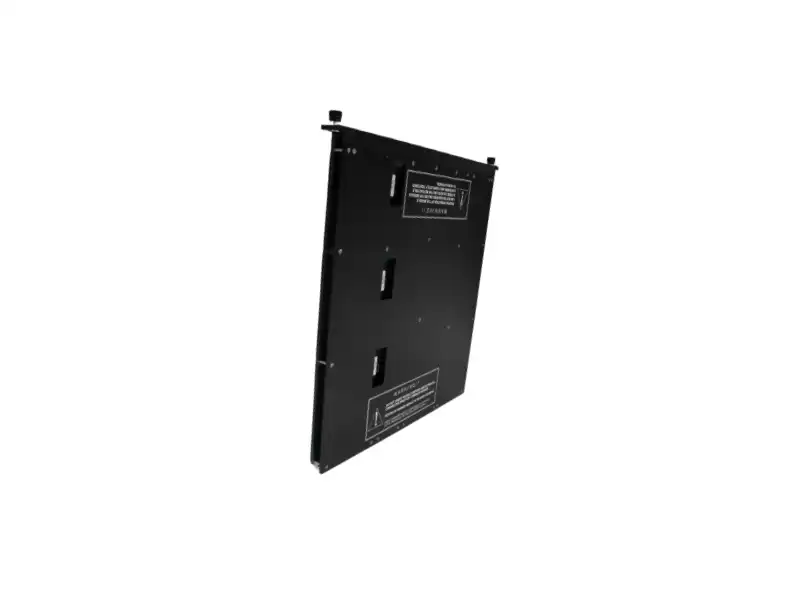

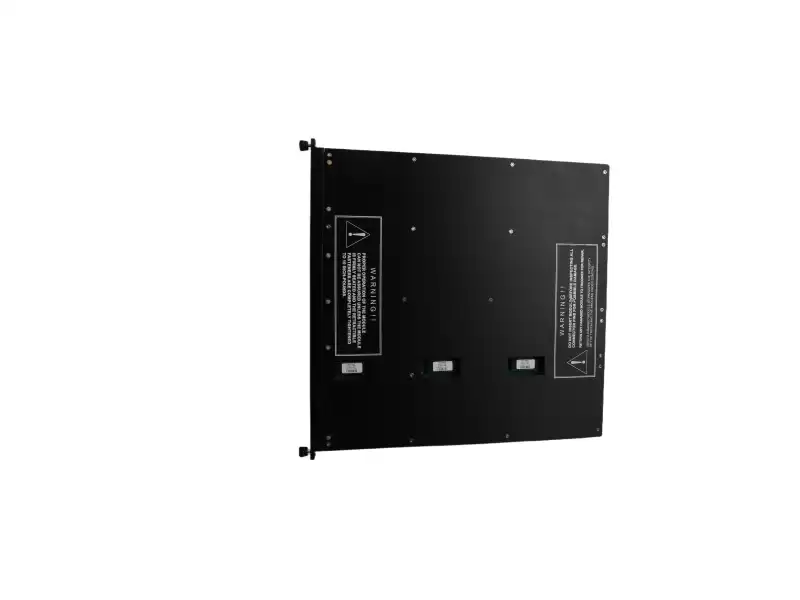

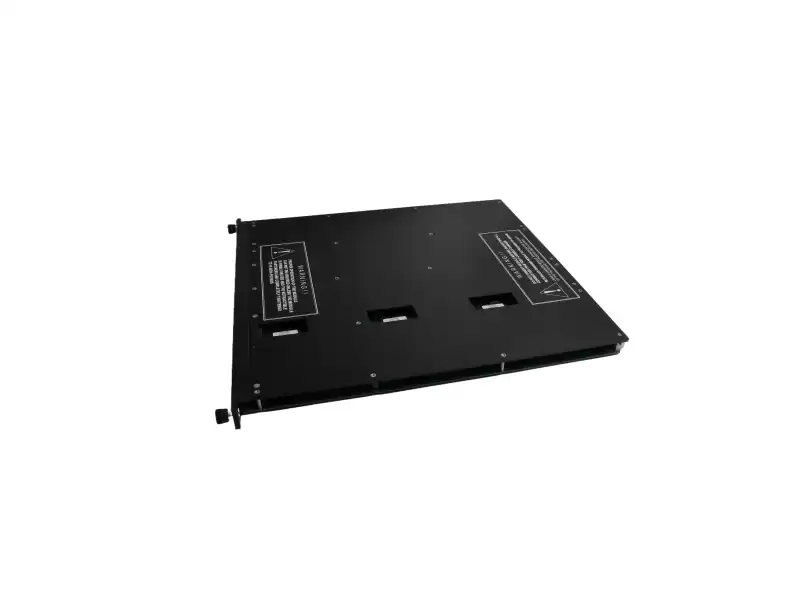

32-channel TMR thermocouple input card.
Accepts J, K, T, E, N, B, R, S types directly; 16-bit resolution; 1 ms scan; 2 500 V channel-to-ground isolation; SIL 3 certified.
Internal 2oo3 vote, wire-break/short/over-range alarms per channel; cold-junction compensation (CJC) on-board or remote.
Related models
|
Model
|
Ch
|
Input type
|
Key difference
|
|
3706A
|
32
|
Thermocouple
|
TMR, built-in CJC, 1 ms scan
|
|
3708E
|
16
|
Thermocouple
|
16-ch compact, same CJC
|
|
3700A
|
32
|
0–5 V / 4–20 mA
|
Universal DC analog
|
|
3701
|
32
|
0–10 V / 4–20 mA
|
10 V upper span
|
|
3703E
|
16
|
0–5 / 0–10 V
|
Mid-density voltage
|
|
3704E
|
64
|
0–5 / 0–10 V
|
High-density voltage
|
|
3707A
|
32
|
RTD (3-/4-wire Pt100)
|
Resistance bridge, Cu/Ni ok
|
|
3709A
|
16
|
Strain / mV
|
±62 mV diff, bridge excitation
|
|
3711A
|
16
|
Iso-TC
|
Per-channel isolation, 500 V CM
|
|
3713E
|
8
|
High-speed TC
|
0.1 ms sample, bearing transients
|
Selection notes
Points > 30 & cabinet tight → 3706A (32 ch)
Fewer points but need isolation → 3711A (16 ch, ch-ch isolated)
Bearing/turbine transients → 3713E (0.1 ms speed)
