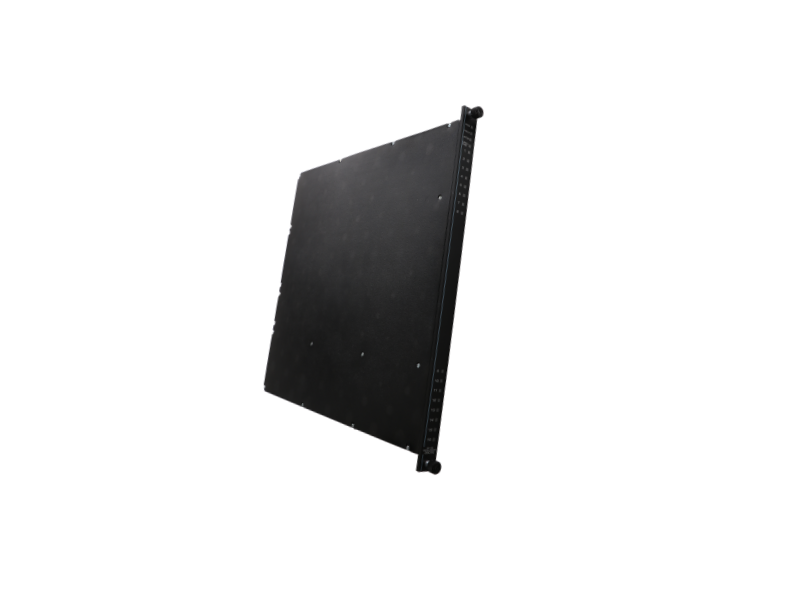

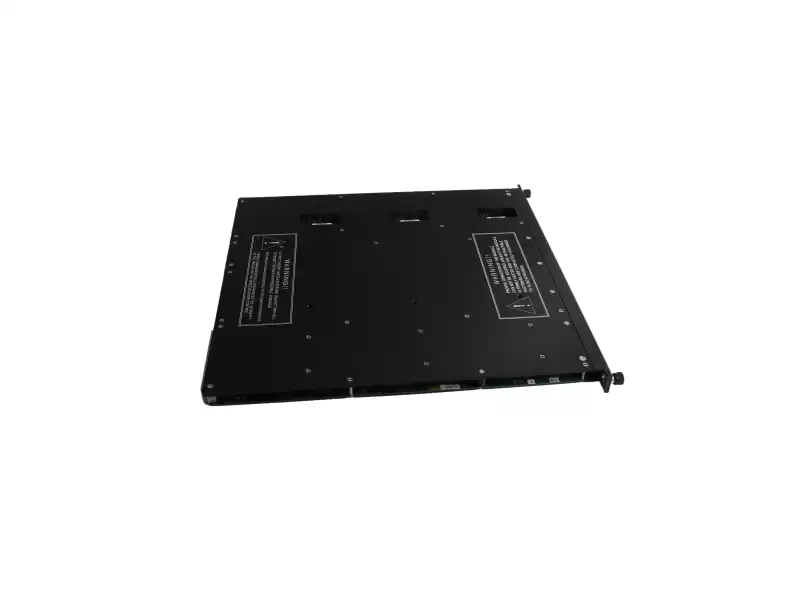

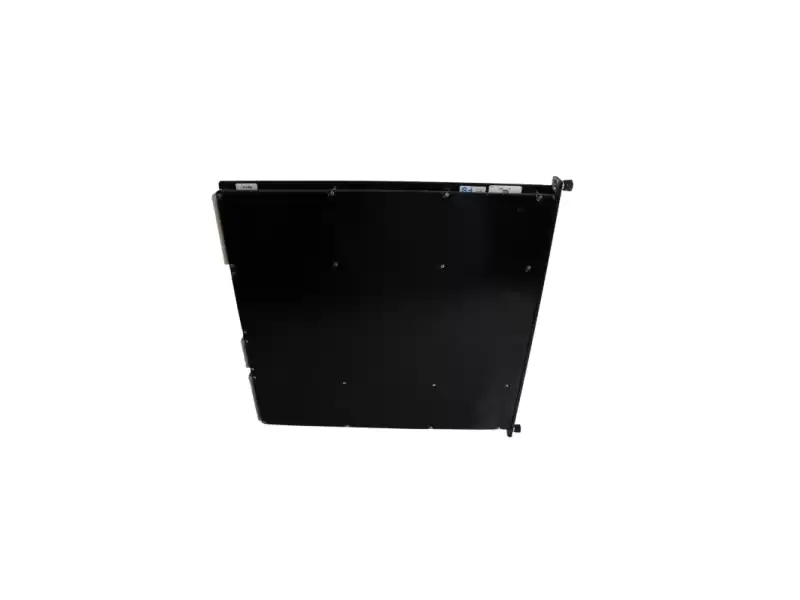

The TRICONEX 3805EN is a DC-coupled analog output module designed for Triconex TMR (Triple Modular Redundant) systems, delivering precise, fault-tolerant analog control signals for actuators, control valves, and process loops. It is engineered to meet the demanding requirements of safety and critical control systems in industries such as petrochemicals, power, and process automation.
Key Features & Highlights
1. 8 analog output channels (4–20 mA) with overrange support (≈ +6 %)
2. 12-bit resolution, with high accuracy (< 0.25 % FSR in normal range)
3. DC-coupled, common return configuration (no isolated return lines)
4. Over-range protection: continuous up to +42.5 VDC
5. Fast switch / failover on leg failure: < 10 ms typical
6. Diagnostic indicators: PASS, FAULT, ACTIVE, LOAD, PWR1, PWR2
7. Hot-spare / online replacement capability (in many applications)
8. Color code: pea-green (for analog output modules)
