4000093-320 | Interface Cable
PLC Autocontroller | Sales Manager May| Wechat id: dcsfcs
Overview

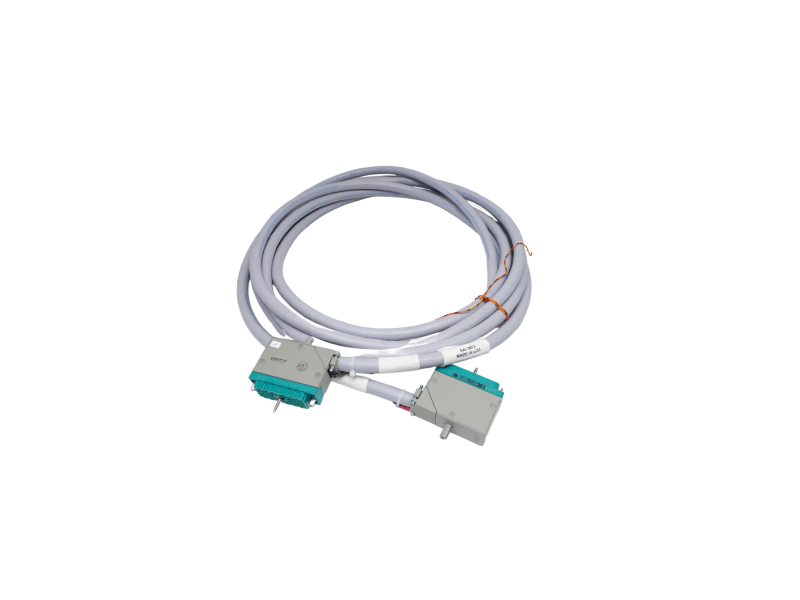

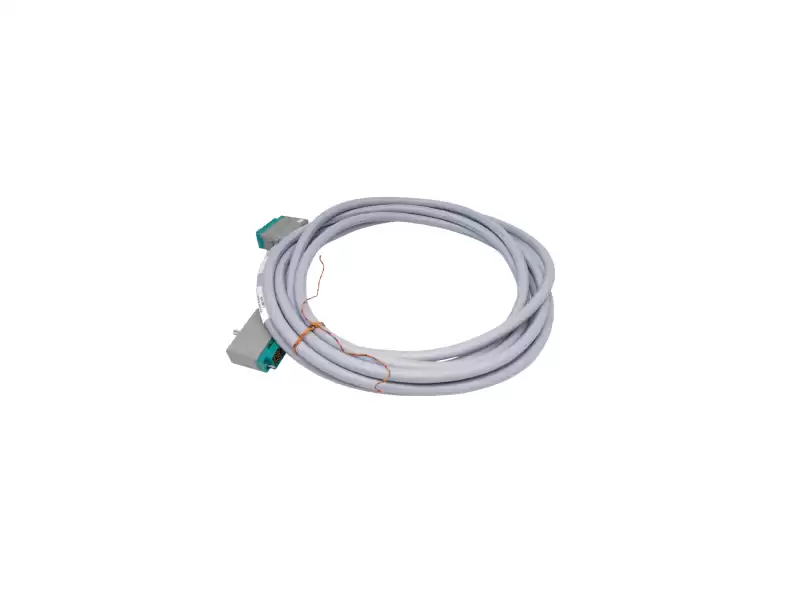

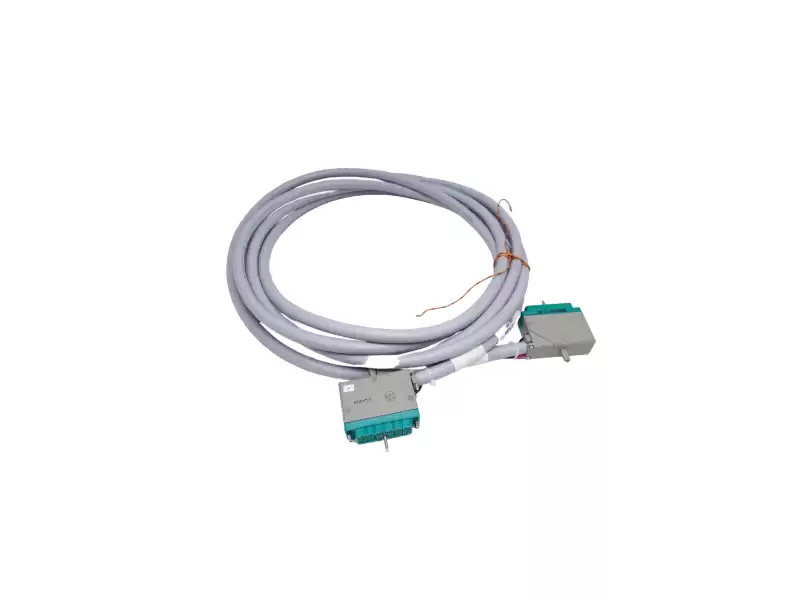

4000093-320 is a factory-moulded 32-point DI ribbon cable that plugs straight from Triconex terminal board
9853-610 (or 9563-810) into the 3503E/3504E digital input module. No hand-wiring, no ferrules, no cold-joints
—just IP-67 reliability in a 3 m coil that weighs only 240 g.
Core Specifications
|
Electrical
|
Value
|
|
Conductors
|
32 × 24 AWG tinned copper
|
|
Pairs
|
16, individually shielded
|
|
Isolation
|
500 VDC conductor-to-shield
|
|
Impedance
|
100 Ω ±5 % @ 1 MHz
|
|
Delay
|
<1 ns m⁻¹ (Triconex lab)
|
Why it matters
For over two decades, loose DIY wiring has been the leading cause of nuisance trips during field calls.
The 4000093-320 eliminates this risk with the following features:
l 100% continuity and 500 VDC withstand voltage testing
l Twisted-pair layout for 50 kHz crosstalk suppression
l Overmolded DB-37/IDC connectors rated for -40 to +85°C temperatures
l One cable part number replaces 32 individual wires → 85% faster commissioning with no rework required.
Other models of the same brand
|
Part-number
|
Length
|
Weight
|
|
4000093-310
|
1 m
|
180 g
|
|
4000093-320
|
3 m
|
240 g
|
|
4000093-510
|
5 m
|
320 g
|
|
4000093-710
|
10 m
|
480 g
|
All products are brand new and original,with a 12-month warranty.
