1. Product snapshot

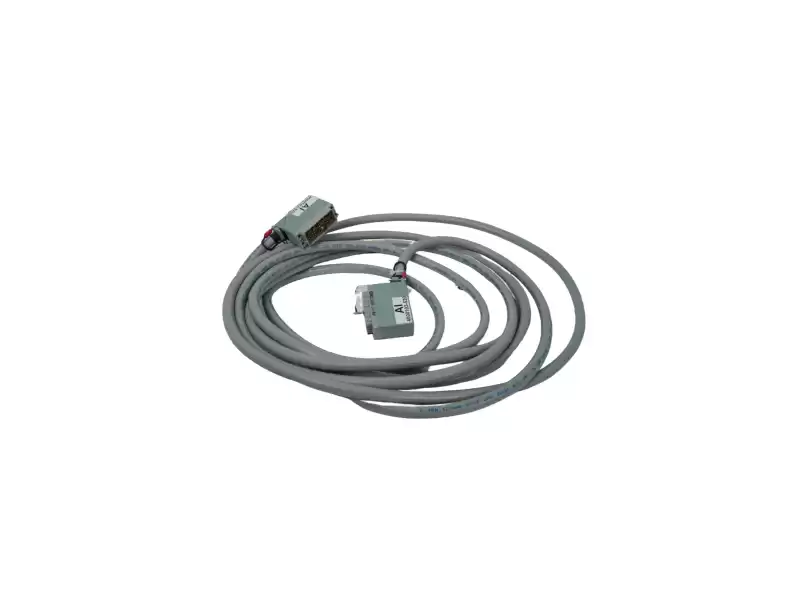

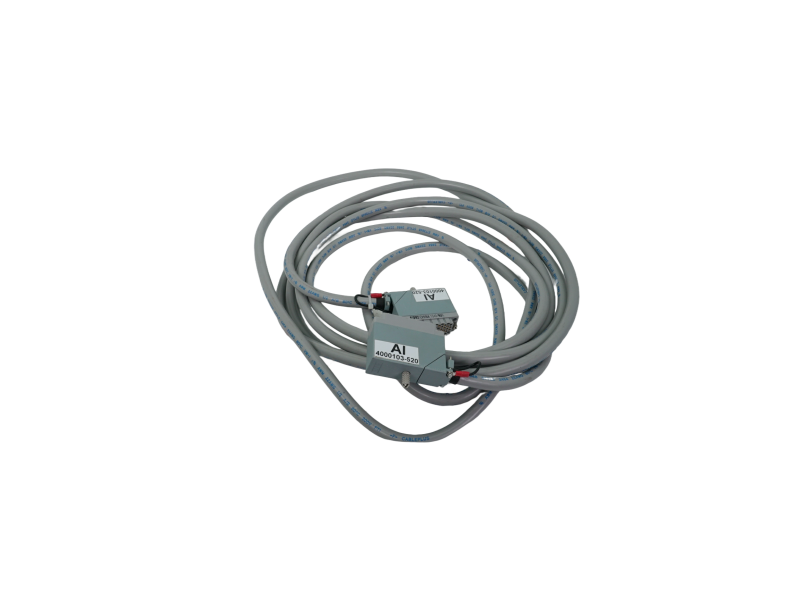

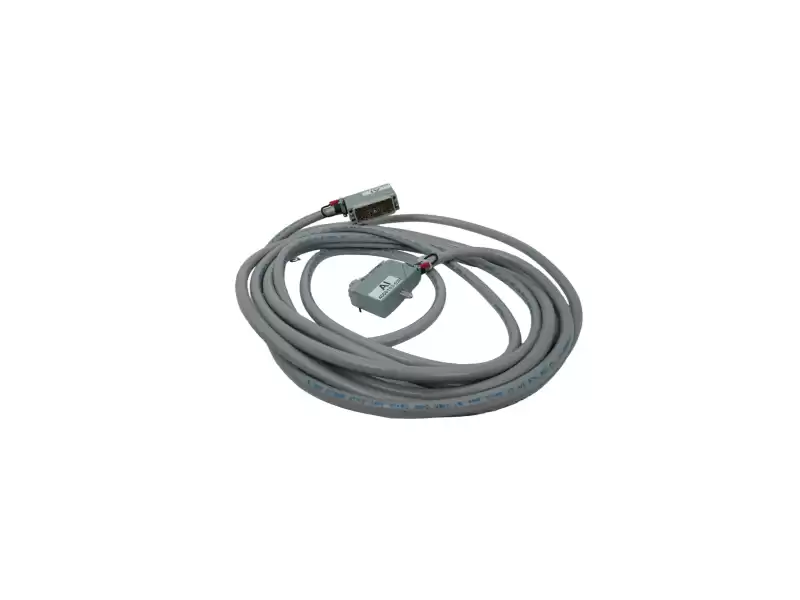

4000103-520 is the factory-built Extension-Termination-Assembly cable that ties any TRICONEX main rack to its first expansion chassis over a 50 m run.
Rugged M12 connectors, IP67-rated, double-shielded for 100 % EMI coverage in high-humidity or high-vibration plants. Length fixed at 50 m—cannot be field-cut without voiding SIL certification.
2. Technical data
|
Parameter
|
Value / note
|
|
Part number
|
4000103-520
|
|
Length
|
50 m (164 ft) fixed
|
|
Connector style
|
M12, 5-pin, A-coded, male / female, IP67 threaded
|
|
Wire gauge
|
24 AWG stranded tinned copper
|
|
Insulation
|
XLPE, 0.7 mm wall, 105 °C rated
|
|
Shielding
|
100 % foil + 85 % braid, 360° shell clamp
|
|
Data rate
|
RS-485 bus up to 1 MHz (Tricon expansion)
|
|
Temperature (op.)
|
–40 … +85 °C
|
|
Short-term max
|
+105 °C
|
|
Certifications
|
CE, UL AWM 2586, FCC Part 15, RoHS
|
|
Min. bend radius
|
10 × OD (OD = 12 mm)
|
|
Compatible racks
|
Tricon V9-V11, Trident, MP3008, RXM remote
|
3. Typical applications
· Offshore ESD systems: IP67 eliminates extra glands in salt-spray zones
· Coal-chemical remote I/O: single 50 m run from safe-area rack to Ex e box
· Drop-in upgrade from 4000103-510: swap chassis bulkhead adapter only
