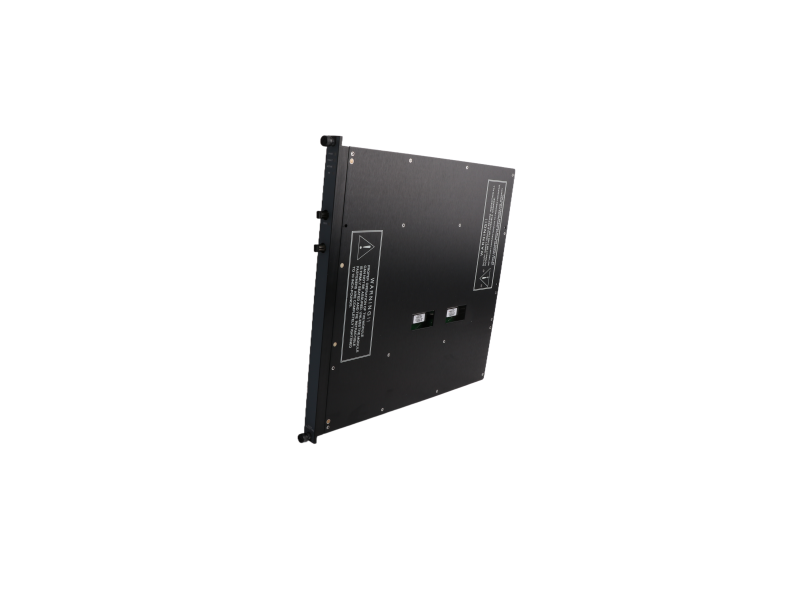

✅ Basic Function
1. Purpose: Extends the communication distance between Tricon controllers and remote I/O modules, enabling remote installation of I/O racks.
2. Communication Method: Fiber-optic communication using multimode fiber, providing electrical isolation and strong interference immunity.
3. Typical Applications: Safety-critical systems in oil & gas, chemical plants, and nuclear power, including Emergency Shutdown (ESD), Fire & Gas (F&G) detection systems.
✅ Technical Specifications
|
Item
|
Parameter
|
|
Model
|
4201 / 4201N
|
|
Communication Medium
|
Multimode fiber (ST connector)
|
|
Maximum Communication Distance
|
2 km (~1.2 miles)
|
|
Communication Rate
|
375 kbaud
|
|
Supported Remote Sites
|
Up to 3 remote racks
|
|
Connectors
|
6 fiber ST connectors
|
|
Power Supply
|
24V DC (18–30V DC)
|
|
Power Consumption
|
Max 30W
|
|
Operating Temperature
|
-40°C to +70°C
|
|
Storage Temperature
|
-40°C to +85°C
|
|
Humidity Range
|
10%–95%, non-condensing
|
|
Dimensions (approx.)
|
410 x 280 x 160 mm
|
|
Weight (approx.)
|
6.8 kg
|
✅ Module Features
1. Redundancy: Hot-swappable support with automatic failover to improve system availability.
2. Diagnostics: Status LEDs include PASS, FAULT, ACTIVE, TX, RX1/2/3, simplifying maintenance and fault detection.
3. High Reliability: Suitable for SIL3 safety systems; compliant with TMR (Triple Modular Redundancy) architecture.
✅ Typical Applications
1. Safety Instrumented Systems (SIS)
2. Emergency Shutdown Systems (ESD)
3. Fire & Gas (F&G) Detection Systems
4. High Integrity Pressure Protection Systems (HIPPS)
✅ Replacement Models & Compatibility
Compatible with Tricon main stations, 4200N, 4201-3N, and similar modules.
Possible replacements include 4200, 4201-3, 4201N; final selection depends on system version and communication configuration.
