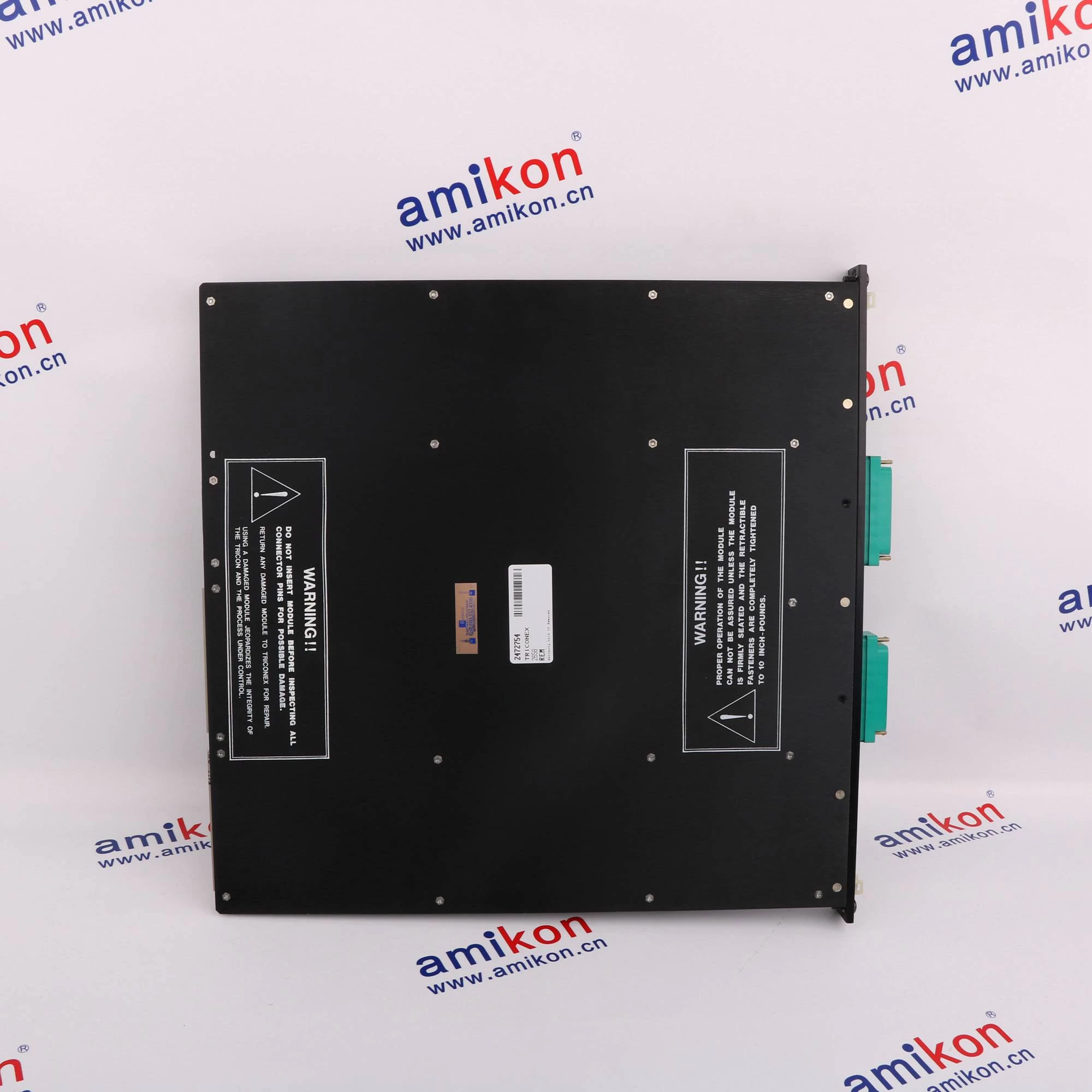

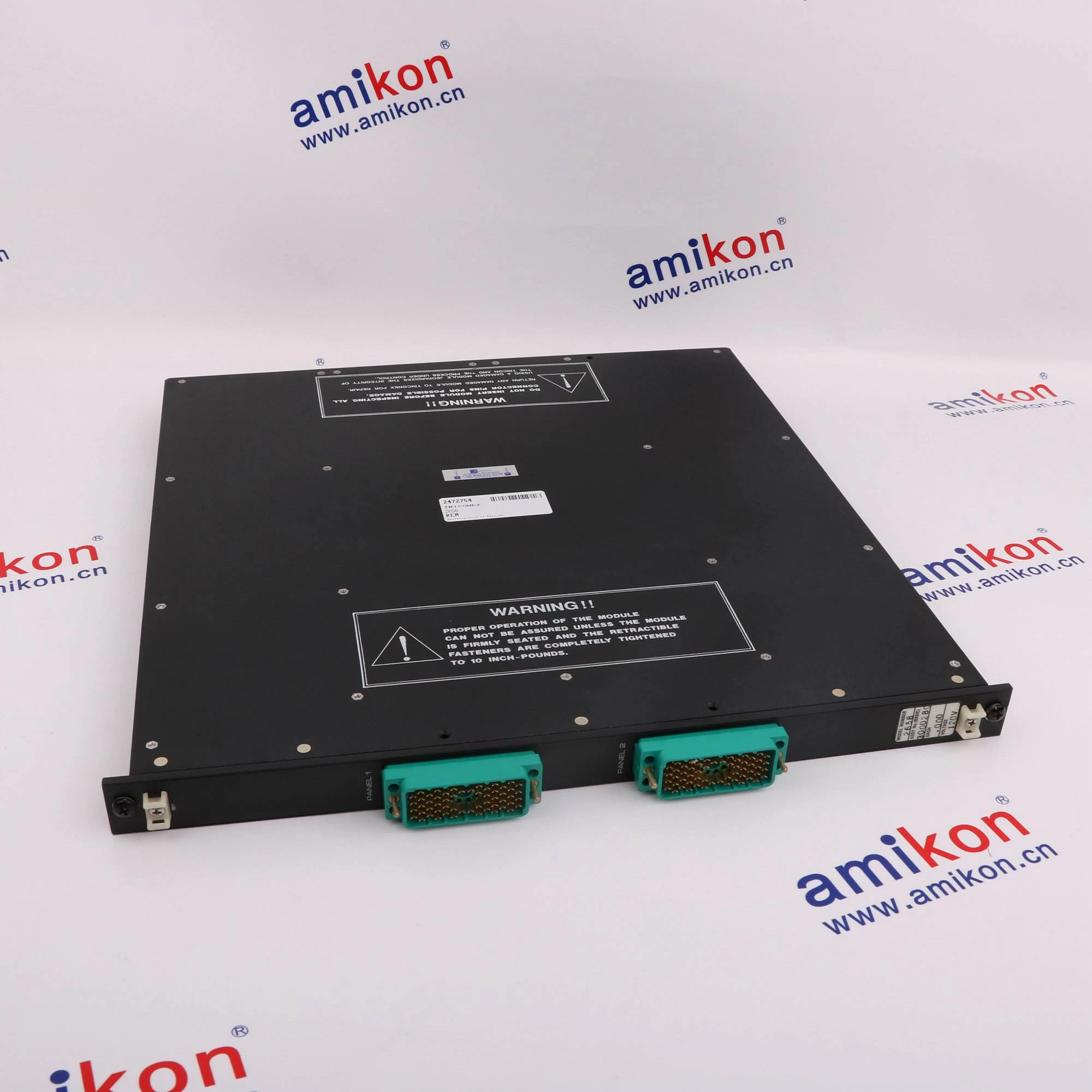

TRICONEX 4354 Tricon Communication Module
Contact: Sunny Guo
Email:sales2@amikon.cn (click!)
Skype:live:ariatang111 (click!)
Mb(Whatsapp):+86-18020776791
Wechat:18020776791
QQ:2851195478
Tel:86-592-5321698
Model Number4354
Serial ports 4, RS-232/RS-485 ports, DB-9 connectors
Network ports 2, 10/100BaseT Ethernet ports,
2, fiber-optic mode Ethernet ports, MT-RJ connectors with 62.5/125
um fiber cables
Port isolation 500 VDC
Protocols TriStation, Modbus, TCP/IP, ICMP, SNTP, TSAA (with support for IP
Multicast), Trimble GPS, Embedded OPC Server , Peer-to-Peer (UDP/IP), Peer-to-Peer Time Synchronization, Jet
Direct (network printing)
Modbus functions
supported
01 — Read Coil Status 06 — Modify Register Content
02 — Read Input Status 07 — Read Exception Status
03 — Read Holding Registers 08 — Loopback Diagnostic Test
04 — Read Input Registers 15 — Force Multiple Coils
05 — Modify Coil Status 16 — Preset Multiple Registers
Communication speed
Copper Ethernet ports: 10/100 Mbps
Fiber Ethernet ports: 100 Mbps
Serial ports: up to 115.2 Kbps per port
Status Indicators PASS, FAULT, ACTIVE, FIRM
LINK— 1 per network port, TX (Transmit) — 1 per port,
RX (Receive) — 1 per port
