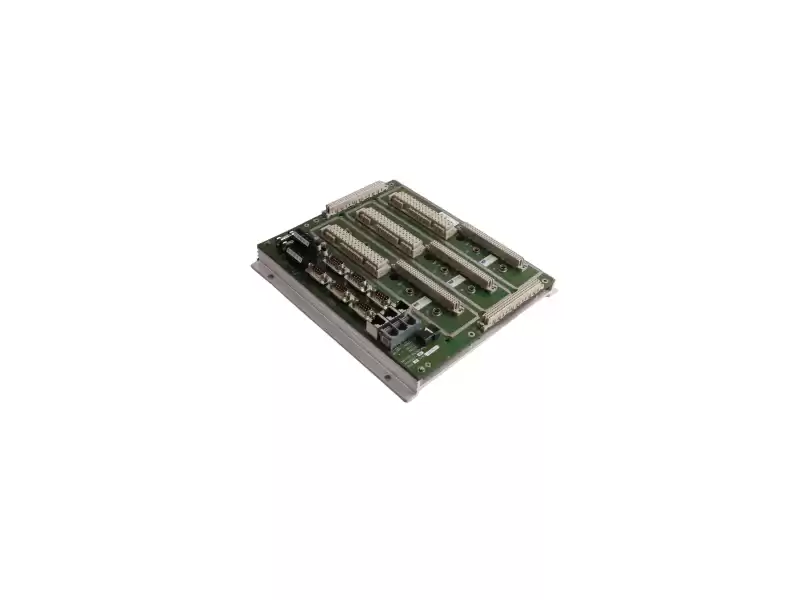

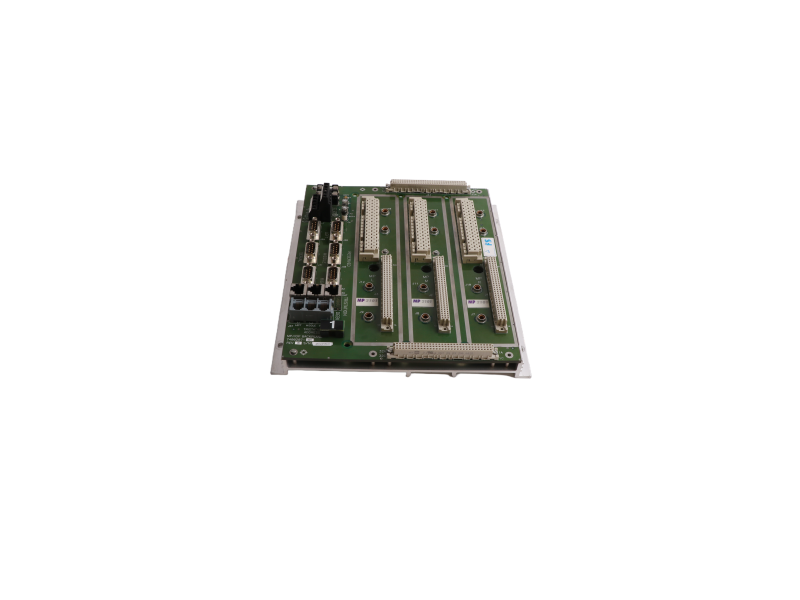

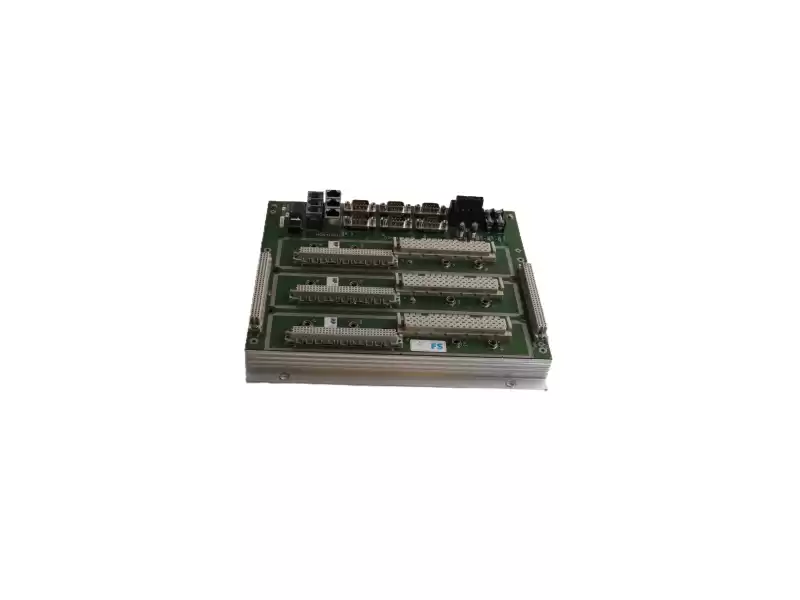

TRICONEX 7400207-001 main-processor baseplate

1.What the 7400207-001 Really Is
The 7400207-001 is the passive, 19-inch rack-mount baseplate that hosts Tricon v10 main processors (3009 / 3009X) plus the first eight I/O modules of a safety rack. No active logic – it is the high-density backplane that delivers +5 V, ±12 V, field-power buses and the TriBus triple-modular-redundant (TMR) interconnect. If your Tricon rack cannot “see” the MPU, 90 % of field cases trace back to bent back-plane pins or burnt power blades on this very board.

2.One Glance Spec Table

3.Functionality & Integration

The MP2101 baseplate integrates seamlessly with Tricon systems, connecting the main processor and various I/O modules to facilitate data exchange and system control.

It supports up to 16 I/O modules, offering flexibility in system configuration. The modular design allows for easy integration and replacement of components, enhancing system flexibility and maintainability.

4.Reliability & Diagnostics

Designed for safety-critical applications, the MP2101 ensures continuous operation through built-in diagnostics that monitor system health and detect faults.

This proactive approach reduces unexpected downtime and enhances system reliability. Its wide operating temperature range makes it suitable for diverse industrial environments.

5.Availability & Support

PLC Autocontroller, located in Xiamen, China, offers the TRICONEX 7400207-001 MP2101 Main Processor Baseplate.

We provide 100% original and brand-new units, ready to ship. Our products come with a 12-month warranty, ensuring quality and reliability.
