1.Module Role

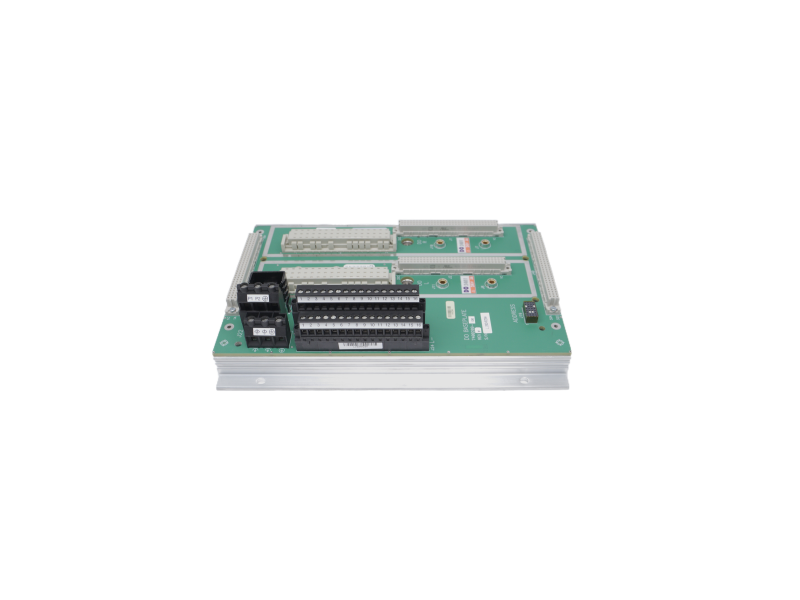

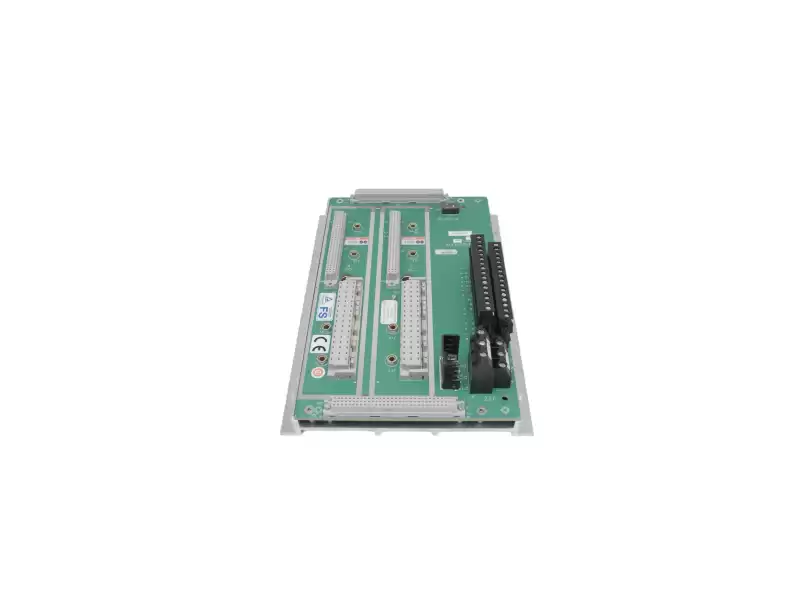

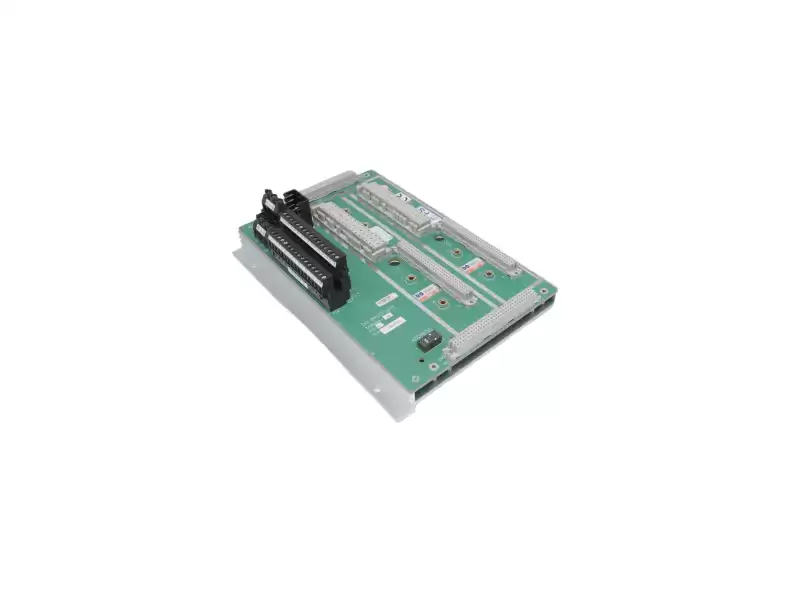

7400209-030 is the 32-point digital output base for Tricon TMR.
Works with DO3401 output card to deliver SIL 3 “last-mile” driving.
Each channel is galvanically isolated and protected against over-current, short-circuit and ground fault.
Can drive solenoids, relays and sounders directly.
2.Key Performance (typical @ 25 °C)
|
Parameter
|
Value
|
Note
|
|
Output channels
|
32 × 24 VDC
|
High-side switch, isolated
|
|
Rated current
|
0.5 A/pt; 4 A/module
|
2 A peak (<100 ms)
|
|
ON-state drop
|
≤0.3 V @ 0.5 A
|
Low loss, less heat
|
|
OFF-state leakage
|
≤10 µA
|
Prevents relay false pick-up
|
|
Response time
|
≤1 ms resistive
|
Meets ESD fast-trip demand
|
|
Max cable length
|
500 m (AWG18)
|
Shielded pair, surge drain
|
|
Diagnostic coverage
|
≥99 %
|
Open, short, over-temp, comms reported
|
3.TMR Hardware Voting
Triple DO cards calculate in parallel → 2oo3 vote on base → FET drives load.
Any single slice fault is auto-isolated; MTBF > 300 000 h.
4.Environmental Ratings
Temp –40…+70 °C; RH 5…95 % non-condensing;
Vibration 4 g, shock 15 g; EMC IEC 61000-4-3 Level 3.
