1.What it is

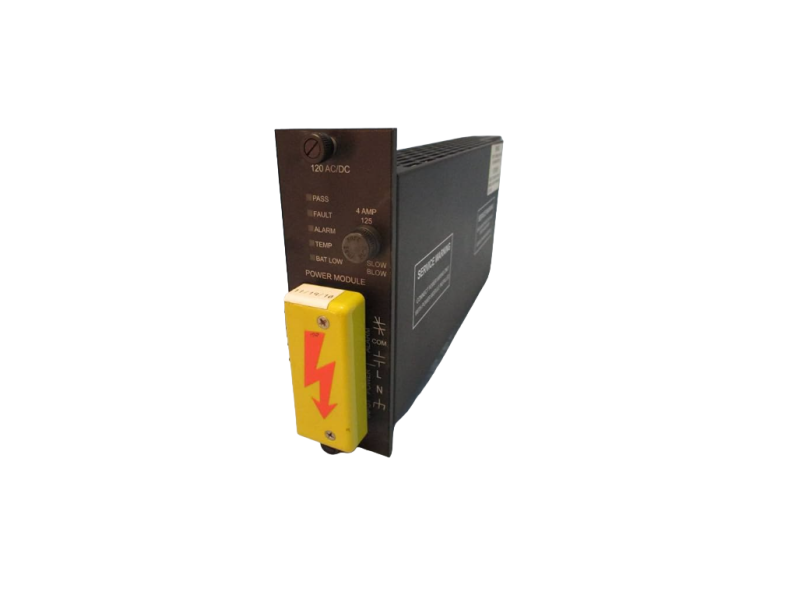

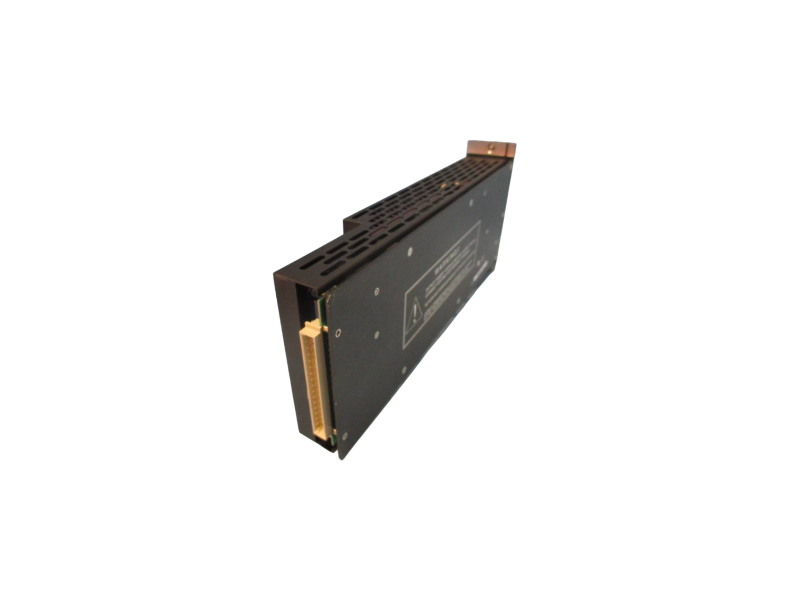

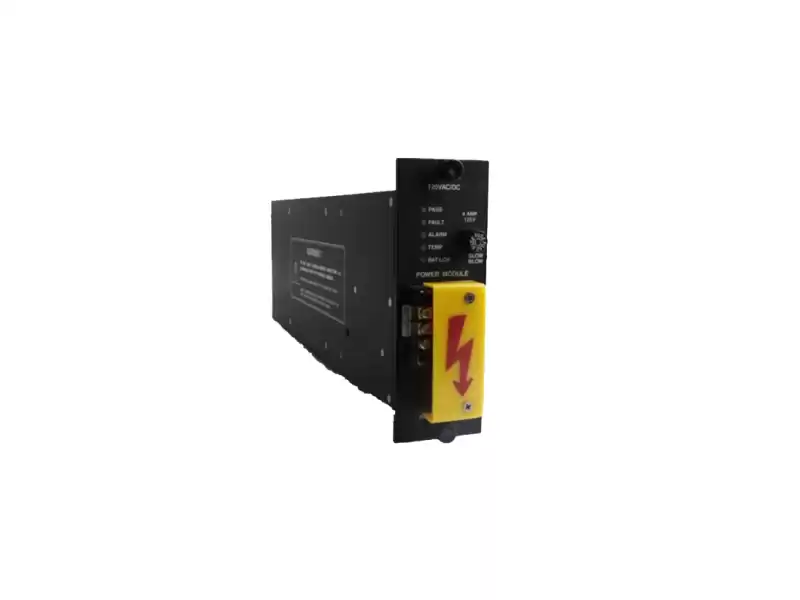

The 8300A is the “power heart” of the Tricon safety platform.
Built on TMR (Triple Modular Redundancy) power architecture, it delivers three independent, real-time voted 24 VDC rails to every logic and I/O module inside an 8110/8120 main chassis. One leg can fail and the system still meets SIL-3 – ideal for ESD, F&G, HIPPS and other critical loops.
2.Key data at a glance
|
Electrical specs
|
Value
|
|
Input voltage
|
120 VAC / 110 VDC dual-range (±15 %)
|
|
Output voltage
|
24 VDC ±1 % (three TMR rails)
|
|
Rated power
|
400 W (550 W peak for 5 s)
|
|
Redundancy
|
3×24 VDC in parallel, 2oo3 voted
|
|
Isolation
|
1 500 V RMS input-output-ground
|
|
Efficiency
|
> 88 % @ 230 VAC full load
|
|
Protection
|
OVP, OCP, short-circuit, OTP, auto-recovery
|
|
Diagnostics
|
LEDs + relay dry-contact (NC fault)
|
|
Temperature
|
20 … +60 °C operating, 5 … 95 % RH non-condensing
|
|
Certifications
|
SIL 3 per IEC 61508, ATEX Zone 2, CE, UL/cUL
|
3.Typical applications
•On-/off-shore platform ESD
•LNG terminal fire & gas protection
•Chemical plant HIPPS loops
•Power-boiler flame safeguard trip
•Pipeline compressor-station safety interlocks
User benefits
• Same brand as CPU & I/O – zero compatibility risk
• 2oo3 voted rails – online replacement with zero process interruption
• Temperature-compensated – full load down to –20 °C
• Global inventory – fast turnaround during turnarounds
Xiamen stock & support (PLC Autocontroller)
|
Supply terms
|
Details
|
|
Stock
|
In stock, ready to ship
|
|
Condition
|
Factory-sealed or new-surplus, 12-month warranty
|
|
Shipment
|
DHL/FedEx/air, worldwide 3-5 days door-to-door
|
