Quick-glance specifications
|
Model
|

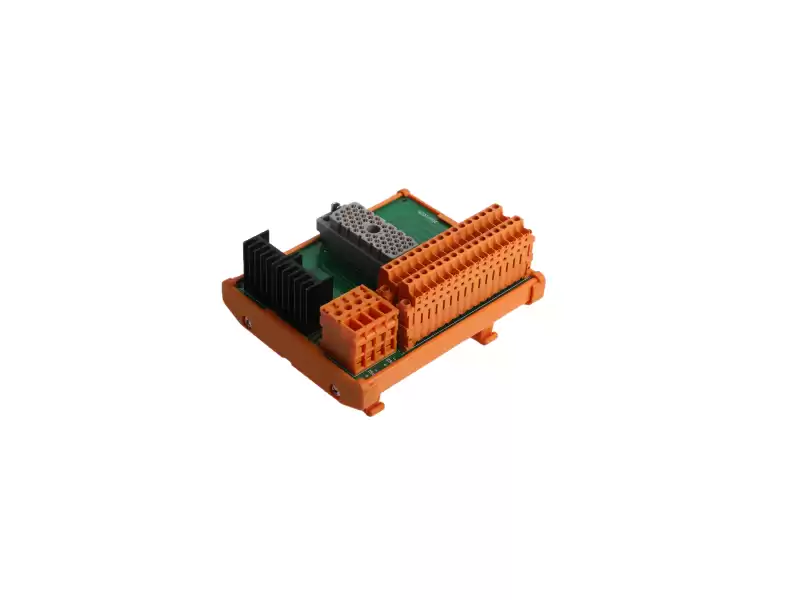

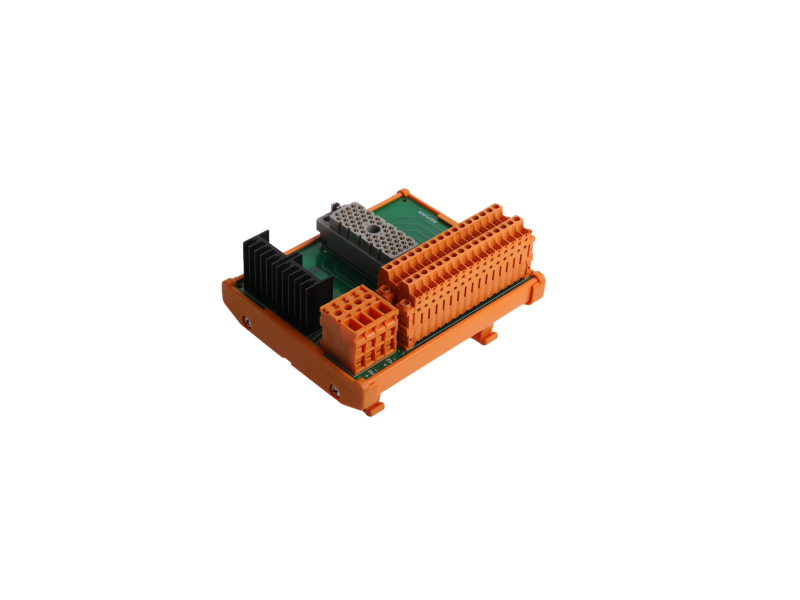

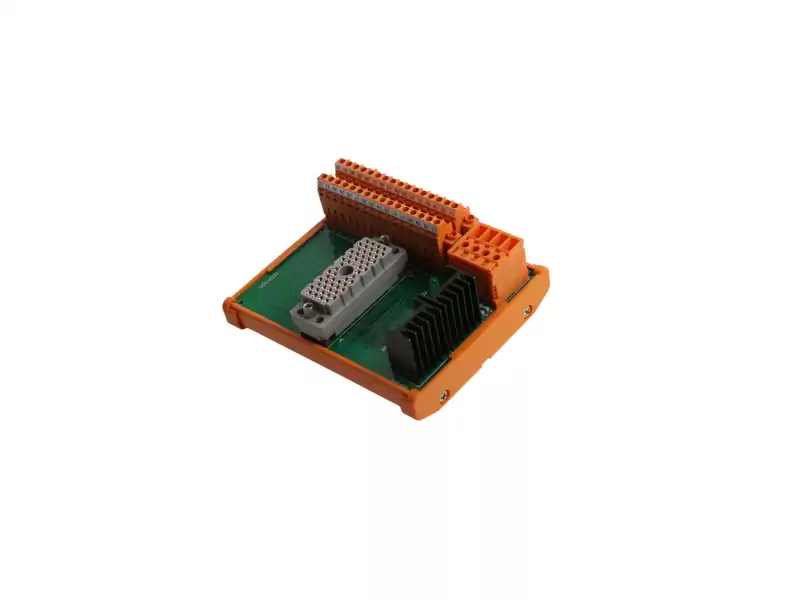

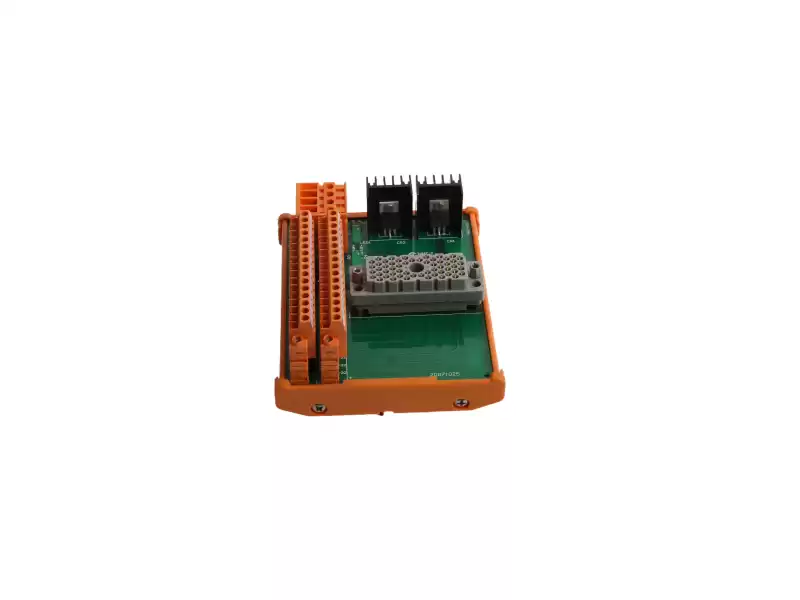

9662-610 DO Termination Panel
|
|
Architecture
|
Triple Modular Redundant (TMR)
|
|
Safety rating
|
SIL 3 per IEC 61508
|
|
Channels
|
16 DO, source or sink selectable
|
|
Output voltage
|
24 VDC ±10 %
|
|
Max continuous current
|
2 A per channel, 16 A total
|
|
Response time
|
< 2 ms typical
|
|
Isolation
|
1 500 Vrms field-to-logic, 250 V channel-to-channel
|
|
Protection
|
short-circuit, over-temp, overload & self-healing
|
|
Diagnostics
|
command/read-back mismatch, V/I monitoring per channel
|
|
Hot-swap
|
yes, rack remains powered
|
|
Operating temp
|
–40 °C to +85 °C
|
|
Enclosure rating
|
IP67 with cover closed
|
|
Dimensions / weight
|
100 × 50 × 20 mm, 250 g
|
|
Mounting
|
35 mm DIN-rail or panel
|
Typical plant fit
ESD systems: solenoid valves, relays, beacons.
Compressor / pump skids: unload valves, motor contactors.
Fire & gas: deluge valves, fire-damper actuators, foam pumps.
Why engineers like it
Triple-output driver chips—one fails, the board keeps the load energised.
Replaceable 5 × 20 mm 2 A fuses; swap in seconds without touching wires.
Built-in freewheeling diodes—drive inductive loads directly, no external suppressor.
Top-mounted bi-colour LED: green = commanded ON, red = read-back fault.
