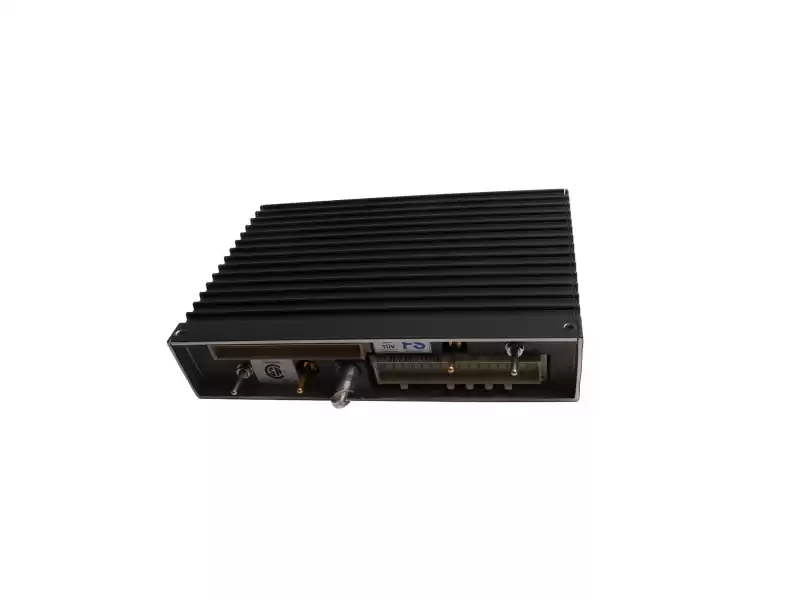

1.Module snapshot
Model: DI3301
Series: Tricon MP (Main-Processor) 3000
Function: 32-channel, isolated, 24 VDC digital input (sink/source)
Safety rating: TÜV-certified to IEC 61508 SIL 3 / AK 6
Hot-spare: yes – replace without dropping the Tricon triple-modular-redundant vote
Typical scan: ≤ 1 ms per 32 pts; fault reaction < 2 ms
Isolation: 1 500 V channel-to-bus; 250 V channel-to-channel
Power draw: 4.5 W max (from Tricon back-plane)
Connector: two 50-pin D-sub, keyed (cable kit 9562-610)
Firmware: V10.3 or later (backward-compatible to Tricon V9)
2.Where it fits

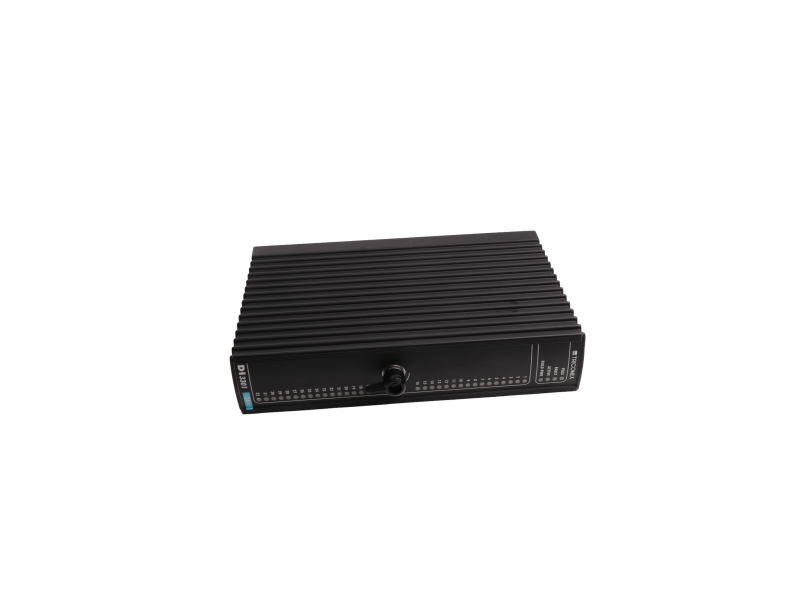

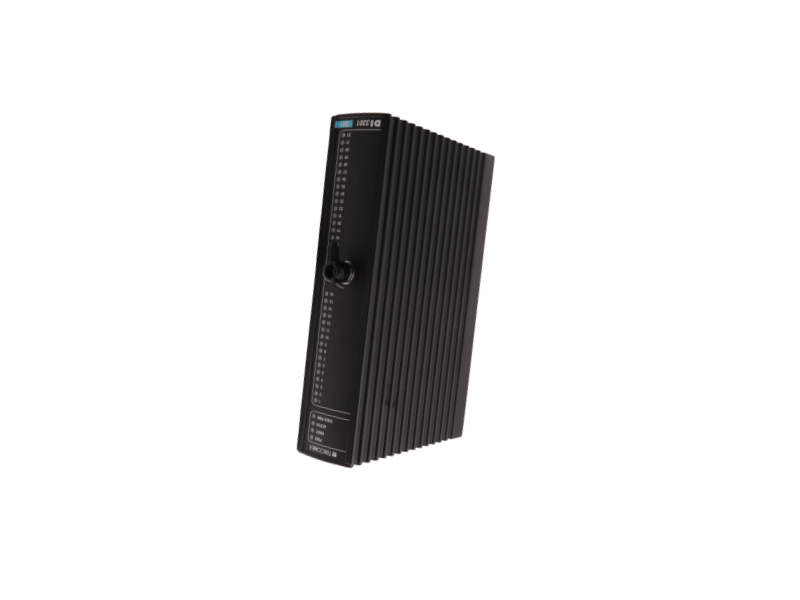

DI3301 occupies any non-safe-slot in a Tricon chassis. Pair it with DO3401 for ESD valve logic, or AI3509 for pressure-trip comparators. All 32 LEDs mirror the field status in real time—no laptop required on the plant floor.
3.“Can I connect my field device?”
|
Device Type
|
Rated Voltage
|
Min ON Current / Voltage
|
Max OFF Current / Voltage
|
DI3301 Conclusion
|
|
Namur Sensor
|
8 V
|
> 2.1 mA
|
< 0.35 mA
|
Supported (internal 1 kΩ)
|
|
Mechanical Contact
|
24 V dry contact
|
> 15 V
|
< 5 V
|
Supported, external 10 kΩ pull-up
|
|
Solid State Relay
|
24 V
|
> 15 V
|
< 5 V
|
Supported, reverse polarity protection
|
|
2-wire Transmitter
|
24 V loop
|
> 18 V
|
< 9 V
|
Not recommended (use AI module)
|
4.Comprehensive After-Sales Service
PLC Autocontroller provides:
ü One-year warranty on DI3301 and other modules
ü 24/7 technical support for installation, troubleshooting, and compatibility guidance
ü Global sourcing assistance for discontinued or rare modules
Our professional team ensures continuous operation and reliable system performance for all clients.
