1.What it is

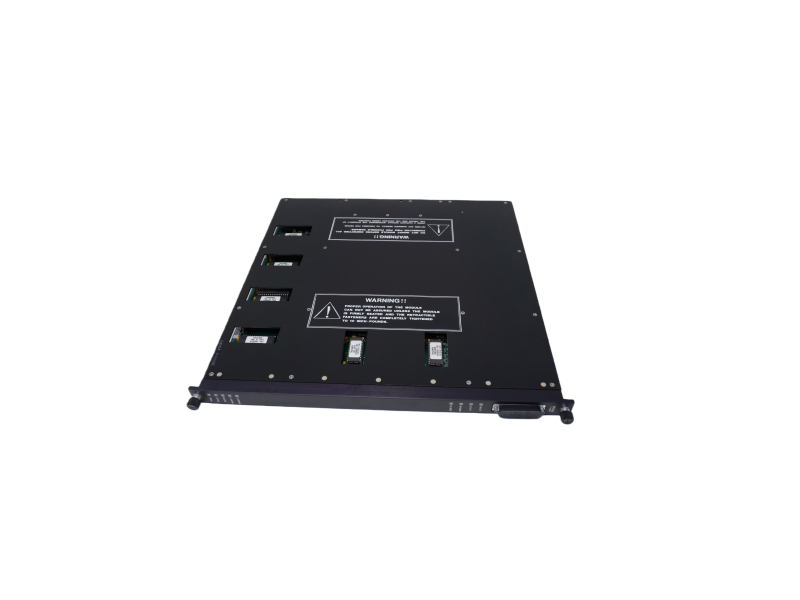

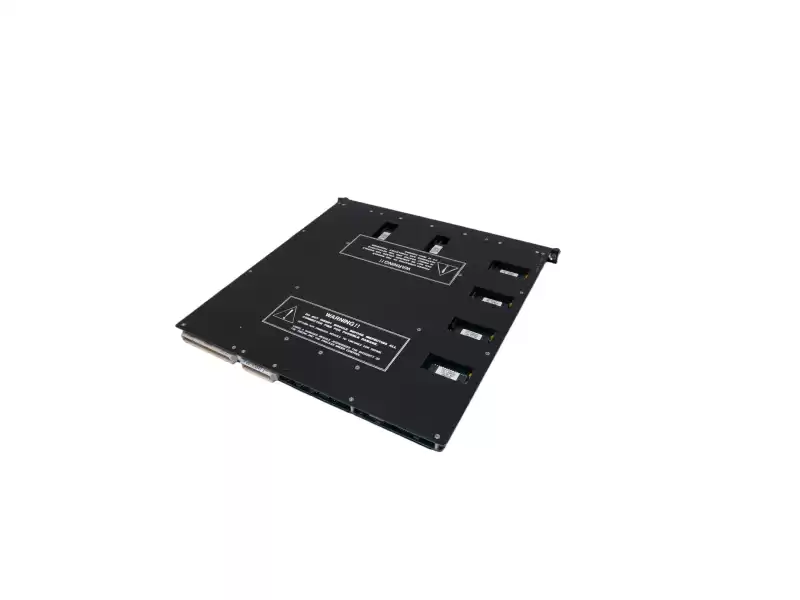

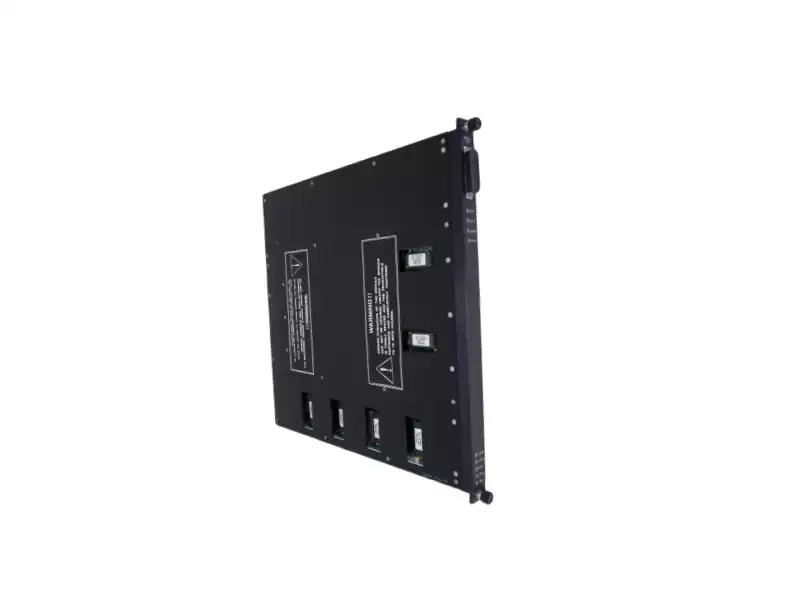

Part number 3006 is the second-generation Enhanced Main Processor (EMPII) for Tricon v10 firmware and later.
It sits in the left-most slot of every Tricon rack and executes the TMR (Triple Modular Redundant) voting engine, I/O scanner, SOE logger, and all open communications.
Two EMPII cards form an active-standby pair; lose either one and the system remains SIL-3 capable.
2.Key specs in one glance
|
Parameter
|
Value
|
Notes
|
|
CPU
|
32-bit RISC
|
25 MHz per triad
|
|
SRAM
|
2 MB battery-backed
|
100 000 SOE records
|
|
Flash
|
512 KB
|
firmware & boot code
|
|
Scan time
|
< 20 ms
|
1 K I/O typical
|
|
TMR vote
|
2-out-of-3
|
per point, per scan
|
|
MTBF
|
> 200 000 h
|
MIL-HDBK-217F
|
|
Temp range
|
0–60 °C
|
horizontal airflow
|
|
Power
|
5 V @ 2 A
|
rack backplane
|
|
Weight
|
0.7 kg
|
hot-swappable
|
|
SIL / cert
|
SIL 3, TÜV, CE, UL
|
IEC 61508
|
3.Port map & cable choices
|
Front-panel port
|
Standard
|
Purpose
|
|
SERIAL 0
|
RS-232
|
TriStation 1131 download
|
|
SERIAL 1
|
RS-485
|
Modbus RTU master/slave
|
|
EICM slot
|
—
|
802.3 UCN, 802.4, or RS-232/485
|
|
Ethernet (optional)
|
10 BASE-T
|
TSAP, OPC, AMS, safety bus
|
