1. Module role

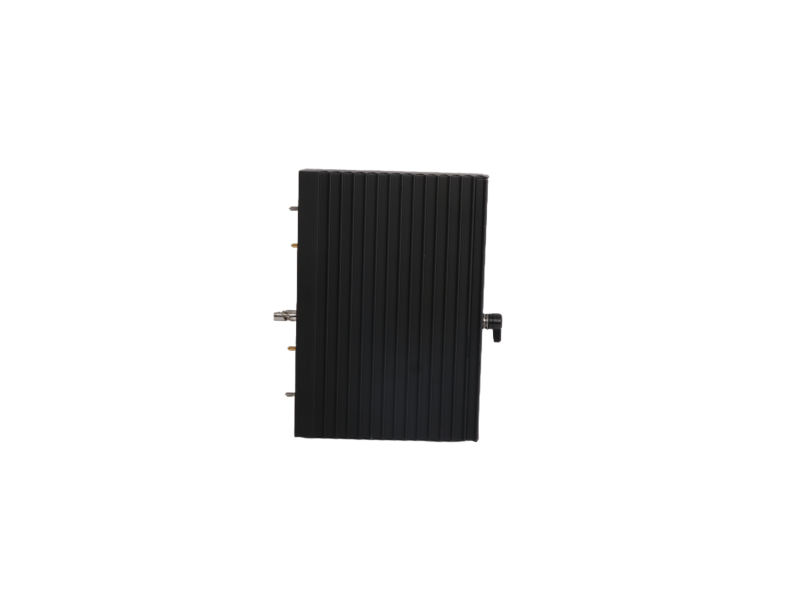

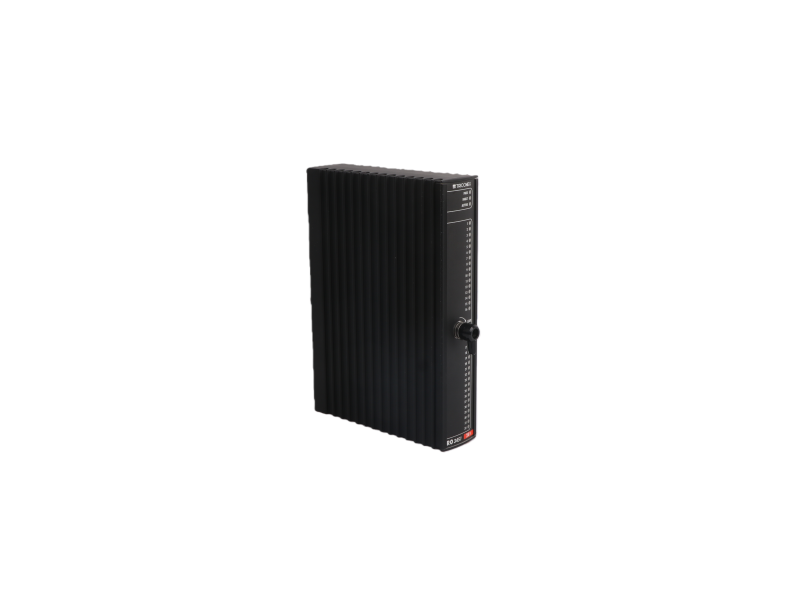

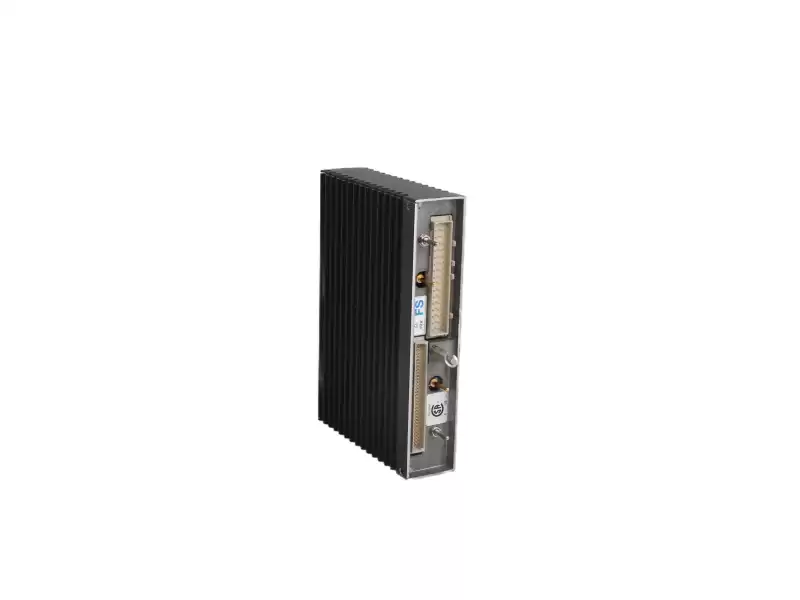

RO3451 converts the Tricon TMR-voted digital signal into 32 galvanically-isolated relay outputs.
2. Each contact is driven by three independent coils that are voted 2oo3 inside the module—so any single coil or driver failure cannot falsely energise or de-energise the field device.
3. Ideal for ESD solenoids, horn/strobe circuits, main-contactor coils or any load that needs dry-contact isolation.
2.Key specifications (25 °C, 24 V backplane)
|
Item
|
Value
|
|
Outputs
|
32 × Form-A SPST-NO dry contacts
|
|
Contact rating
|
2 A, 30 V DC / 250 V AC (resistive)
|
|
Isolation
|
500 Vrms ch-to-ch & ch-to-logic
|
|
Operate time
|
≤ 10 ms incl. 2oo3 vote
|
|
Diagnostics
|
coil open, contact weld, wire-break
|
|
Temperature
|
40…+70 °C
|
|
SIL / cert
|
SIL 3, IEC 61508, TÜV
|
|
Part number
|
3009-3451
|
3.Front-panel LEDs
PASS (green) = module healthy; FAULT (red) = voted fault; 1…32 (green/red) = channel ON / fault.
4.Popular Tricon Relay / Digital Output Models
|
Model
|
Description
|
Load Type
|
Rating
|
|
RO3451
|
32-ch relay, Form-A
|
dry contact
|
2 A 250 V AC/30 V DC
|
|
RO3351
|
32-ch relay, Form-C
|
change-over
|
2 A 250 V AC
|
|
RO3551
|
16-ch relay, high-power
|
dry contact
|
5 A 250 V AC
|
|
DO3201
|
32-ch solid-state
|
sinking
|
0.5 A 24 V DC
|
|
DO3401
|
16-ch solid-state
|
sourcing
|
2 A 24 V DC
|
|
DO3501
|
8-ch high-current SS
|
sourcing
|
5 A 24 V DC
|
|
DO3601
|
16-ch line-monitoring
|
sinking
|
1 A 24 V DC
|
|
DO3701
|
32-ch low-leakage SS
|
sinking
|
0.25 A 24 V DC
|
|
DO3801
|
8-ch isolated SSR
|
sourcing
|
3 A 240 V AC
|
|
DO3901
|
16-ch reed relay
|
dry contact
|
0.5 A 120 V AC
|
