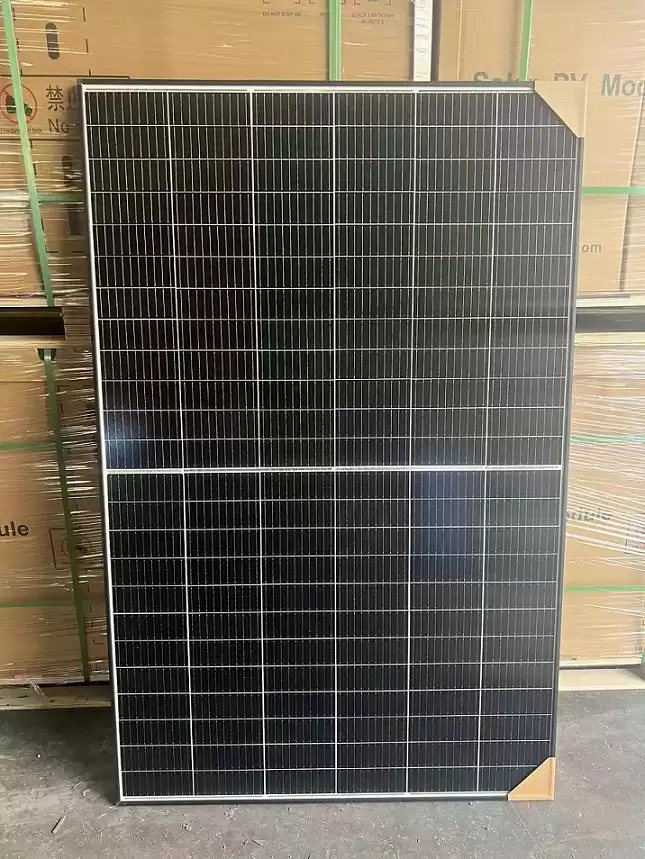

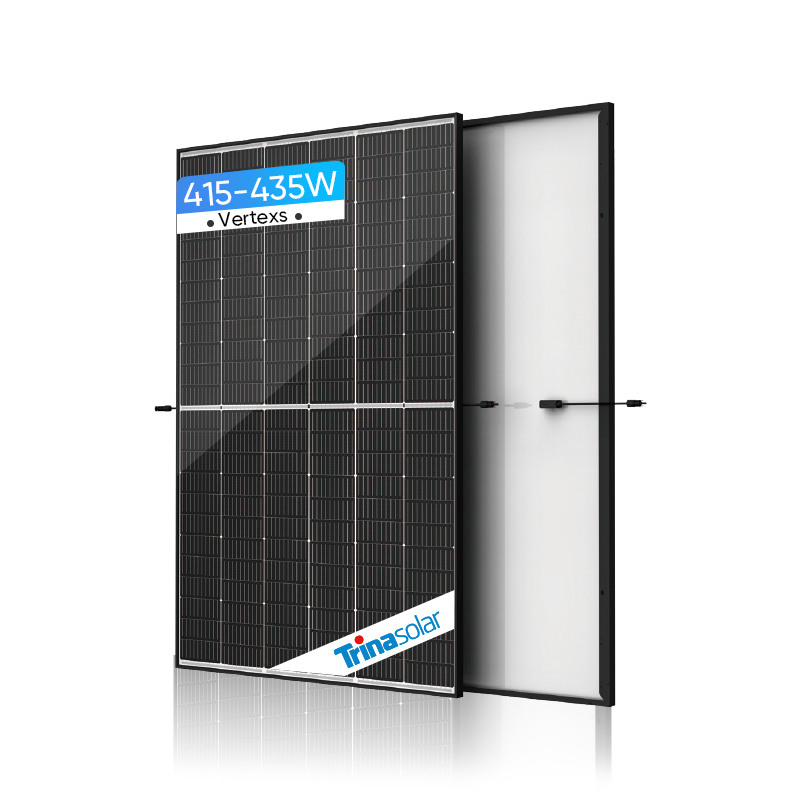

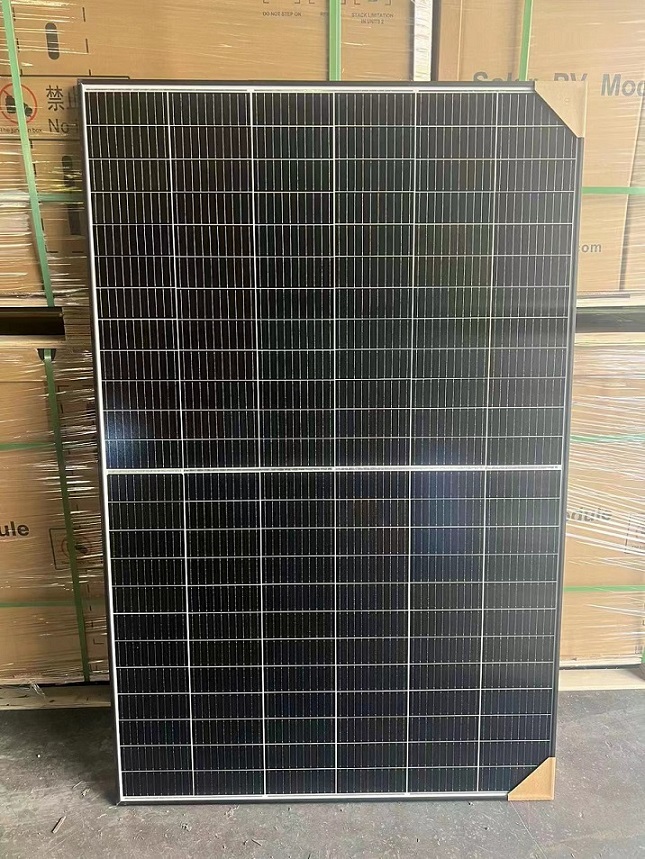

Trina Solar Panel 420w 425w Black Frame Panels 430w 435w For Roof Use

1. Up to 435W, 21.8% module efficiency with high density interconnect technology

2. 2% first year degradation,0.55% Annual Power Attenuation

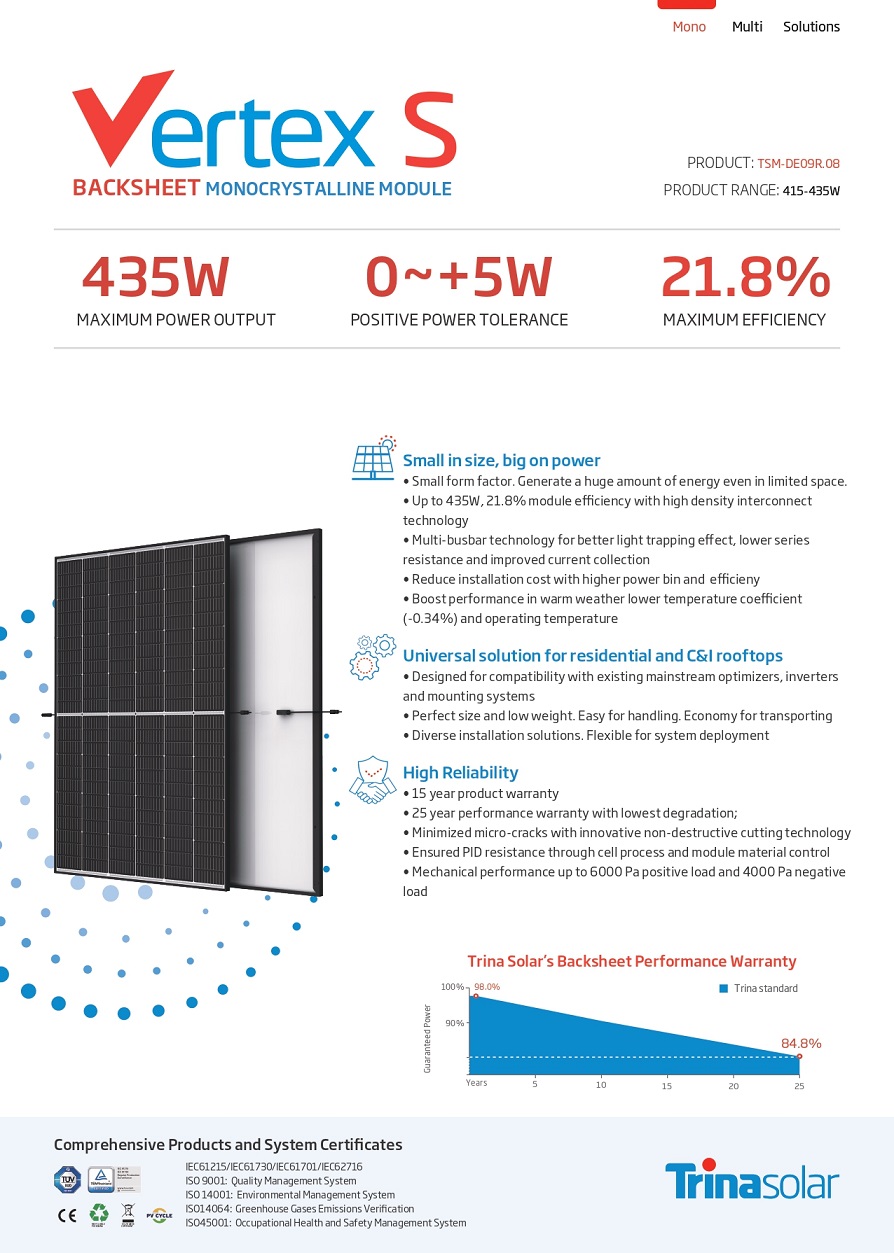

Small in size, big on power

• Small form factor. Generate a huge amount of energy even in limited space.

• Up to 435W, 21.8% module efficiency with high density interconnect

technology

• Multi-busbar technology for better light trapping effect, lower series

resistance and improved current collection

• Reduce installation cost with higher power bin and efficieny

• Boost performance in warm weather lower temperature coefficient

(-0.34%) and operating temperature

Universal solution for residential and C&I rooftops

• Designed for compatibility with existing mainstream optimizers, inverters

and mounting systems

• Perfect size and low weight. Easy for handling. Economy for transporting

• Diverse installation solutions. Flexible for system deployment

High Reliability

• 15 year product warranty

• 25 year performance warranty with lowest degradation;

• Minimized micro-cracks with innovative non-destructive cutting technology

• Ensured PID resistance through cell process and module material control

• Mechanical performance up to 6000 Pa positive load and 4000 Pa negative

load

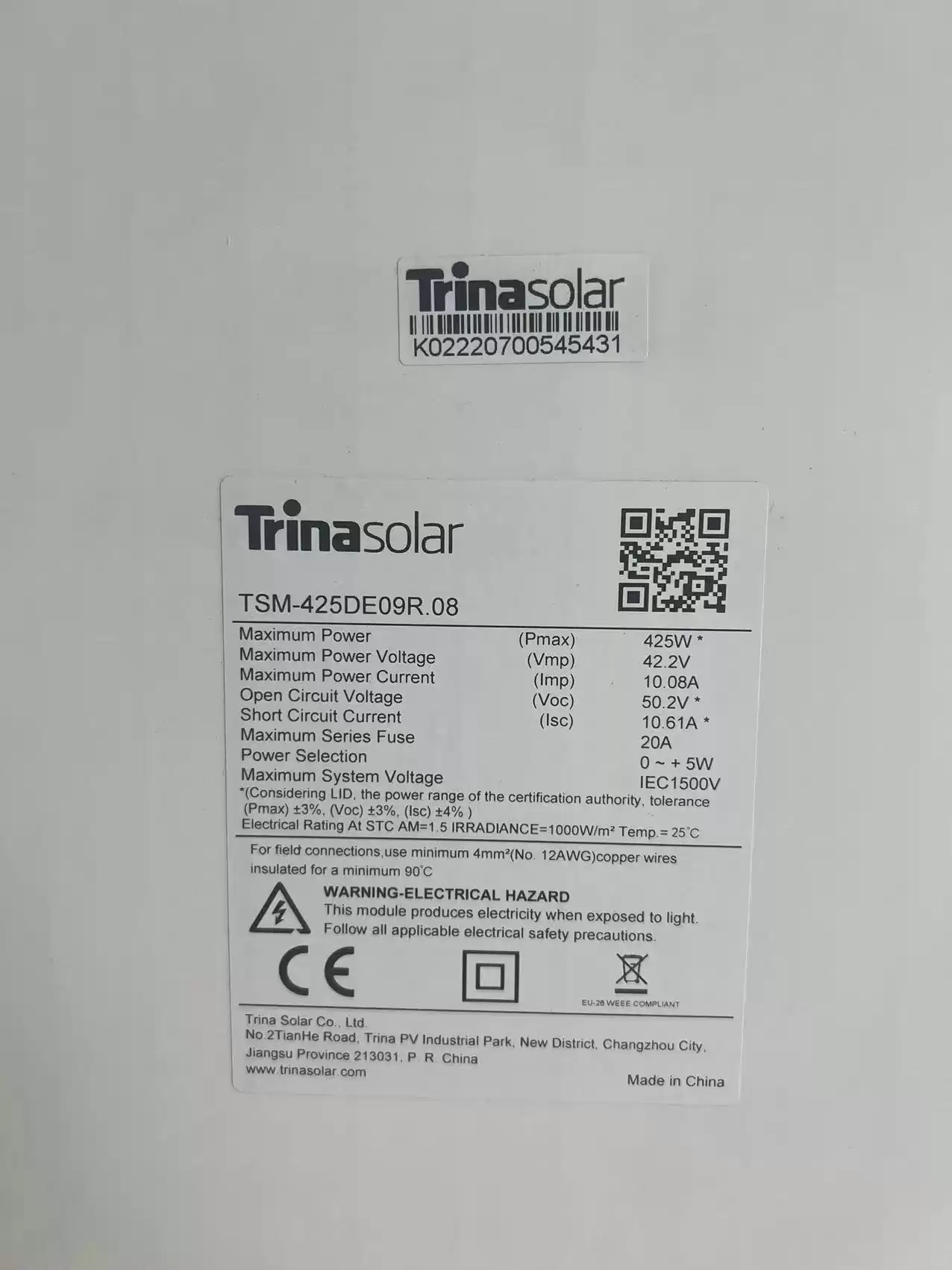

Electrical Specification

Module Type Vertex 425w Vertex 430w Vertex 435w
Maximum power (Pmax/W) 425 430 435
Open-circuit voltage (Voc/V) 50.2 50.3 50.4
Short circuit current (Isc/A) 10.61 10.64 10.67
Peak power voltage (Vmp/V) 42.2 42.3 42.5
Peak power current (Imp/A) 10.08

10.17

10.24

Key Features of Trina Solar Panel

1.Three times EL test to ensure best quality
2.Superior Warranty-12 years products warranty  25 years linear power output warranty
3.Ideal choice for utility and commercial scale projects by reduced BoS and improved ROI
4.Excellent wind load 2400Pa & snow load 5400Pa under certain installation method


FAQ:

What watts of this panel?

Mono 420w 425w 430w solar panel

What dimension of this panel?

1762 ×1134× 30 mm

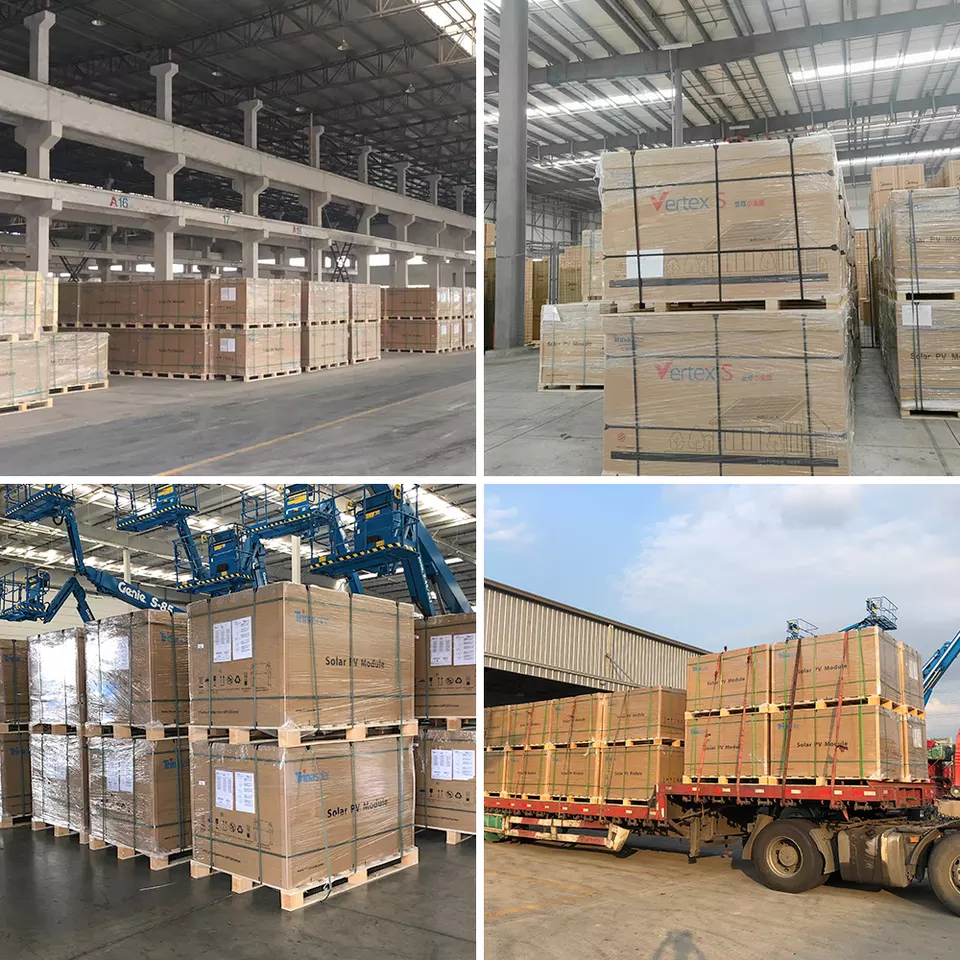

How Many pcs quantity of one container?  How much is the loading quantity and shipping method?

36pcs/pallet. 936pcs/40HQ;Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.

How long is the Delivery time?

Normally production will takes around 10 workings days, depends on the order quantity.
