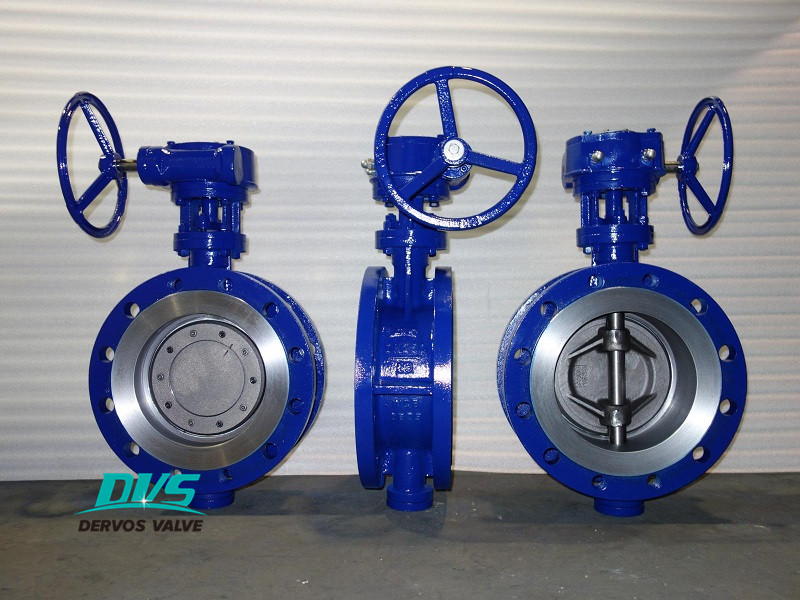

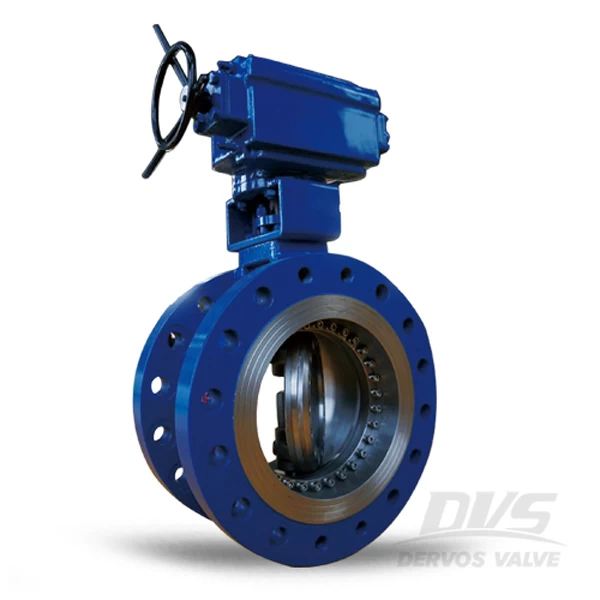

The eccentric butterfly valve has triple offset design. It has excellent sealing performance and longer service life due to its small abrasion on sealing face during operation of valve. The 30'' butterfly valve is designed with ANSI 150 double flanged connection and fully metal seat.
Quick Detail
|
Type
|
Butterfly
Valve
|
|
Size
|
30
Inch
|
|
DesignPressure
|
ANSI
150
|
|
Construction
|
Triple
Offset/ Triple Eccentric
|
|
ConnectionType
|
RF
Double Flanged Type
|
|
Operation
|
Gearbox
Operation
|
|
Design Code
|
API
609
|
|
Face to Face
|
ASMEB16.10
|
|
End Connection
|
ASMEB16.5
|
|
Test &
Inspection
|
API
598
|
|
Body Material
|
A216
WCB
|
|
TemperatureRange
|
-29℃~+427℃
|
|
Application
|
Water,
Oil, Gas
|

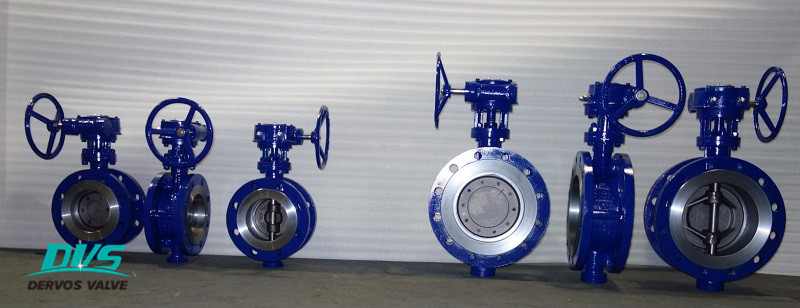

Available Product Range
Norminal Size: 2 Inch ~150 Inch
Design Pressure: 150LB~900LB
Valve Connection: Flanged, Lug, Wafer, Butt Weld (BW)
Valve Operation: :Lever/Wrench, Gearbox, Motorized, Pneumatic
Body Material: Carbon Steel WCB, Stainless Steel CF8/CF8M/CF3/CF3M, Low Temperature Steel LCB/LCC
Seat Material: Fully metal seat, SS+Graphite Seat
