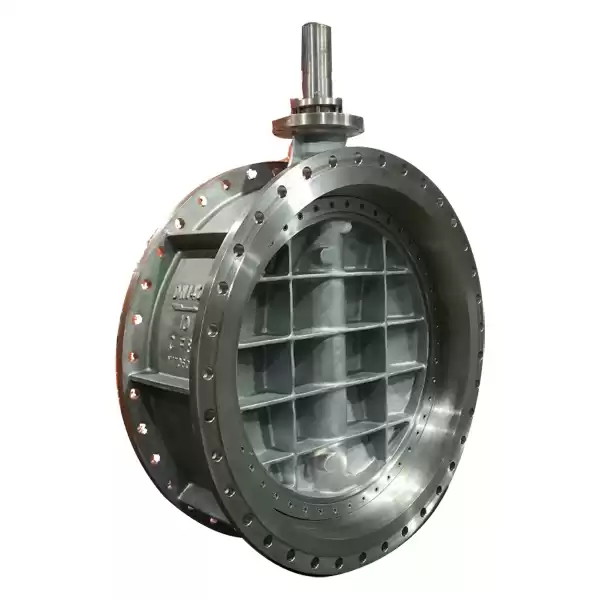

Triple Eccentric Multi Layer Butterfly Valve DN1400 PN10 CF8

EN558 Triple Eccentric Multi Layer Metal Butterfly Valve, Manufacture STAVAL Factory Offers.

SeatSoft Seat, Metal Seat
ConstructionTriple Eccentric, Concentric, Eccentric ,High Performance
BoreFull Bore
End ConnectionBW, Flange, Lug, Wafer
Material RangeCarbon Steel, Stainless Steel, Alloy Steel, Bronze, Specialize Material
Pressure Range150LB ~ 2500LB (PN16 ~ PN420)
Size Range2Inch ~ 60Inch (DN50 ~ DN1600)
Working Temp.-196°C to +600°C

Key Specification

Type	Butterfly Valve
Size	DN1400
Pressure	PN10
Construction	Triple Eccentric, Mutil Layer Metal Seat, Two way seal, Zero Leakage
Connection	RF End
Body Material	A351 CF8
Disc Material	A351 CF8+STL
Stem Material	A182 F304
Seat Material	A351 CF8+STL
Bolt/Nut	B7/2H
Design Standard	EN593
Face to Face Dimension	EN558
End Connection	EN1092-1
Inspection & Test Std.	EN1226-1
Temperature Range	-29℃~+459℃
Medium	Oil, Water, Gas
