Triple output 65W 5V 15V -15V PCB Switching Power Supply
Description:
Full range of AC input voltage range with triple output 5V 15V -15V switching power supply 65W. It can fulfill the requirements of general medical or industrial applications.
Features:
1, Triple output power supply 5V 15V -15V with small volume;
2, 65W switching power supply full range of input voltage range;
3, Tripke output power supply 5V 15V -15V with short circuit, overload, overvoltage protection.
4, High efficiency, low working temperature;
5, Full load aging test.
|
parameter
|
|
Item NO.
|
KPT65-05±15
|
|
|
CH1
|
CH2
|
CH3
|
|
Output
|
Output Voltage
|
+5V
|
+15V
|
-15V
|
|
Rated Current
|
4A
|
2.5A
|
0.5A
|
|
Current Range
|
0.2-6A
|
0.1-4A
|
0-1A
|
|
Rated power
|
65W
|
|
Ripple
|
50mVp-p
|
100mVp-p
|
100mVp-p
|
|
Adjustable output range
|
CH1:4.75-5.5V
|
|
Output Accuracy
|
5.0~5.2V
|
±5%
|
±2%
|
|
Line Regulation
|
±1%
|
±1%
|
±1%
|
|
Load Regulation
|
±2%
|
±4%
|
±1%
|
|
Set up,Rise,Keep up time
|
1s,50ms,20ms
|
|
Input
|
Input Voltage range
|
88~264V AC，100~370VDC
|
|
Input current
|
0.8A/115V 0.4A/230V
|
|
Input frequency
|
47~63Hz
|
|
Efficiency
|
75% @ 24V DC
|
|
Inrush current
|
COLD START 15A/115V 30A/230V
|
|
Leakage Current
|
<0.3mA/240VAC
|
|
Protection
|
Over load protection
|
110~160%,Hiccup protection, automatic recovery
|
|
Output overvoltage protection
|
5V:6～7V,Hiccup protection, automatic recovery
|
|
Over Temp.protection
|
------
|
|
Other function
|
|
|
|
Environment
|
Working Temp.,Humidity
|
-10~50℃，10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety standards
|
GB4943
|
|
Withstand voltage
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standards
|
|
|
Others
|
Demension
|
127*76*40mm
|
|
Weight
|
0.5Kgs
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output from minimum load to 100% load change measured,other fixed at 60% load.
|

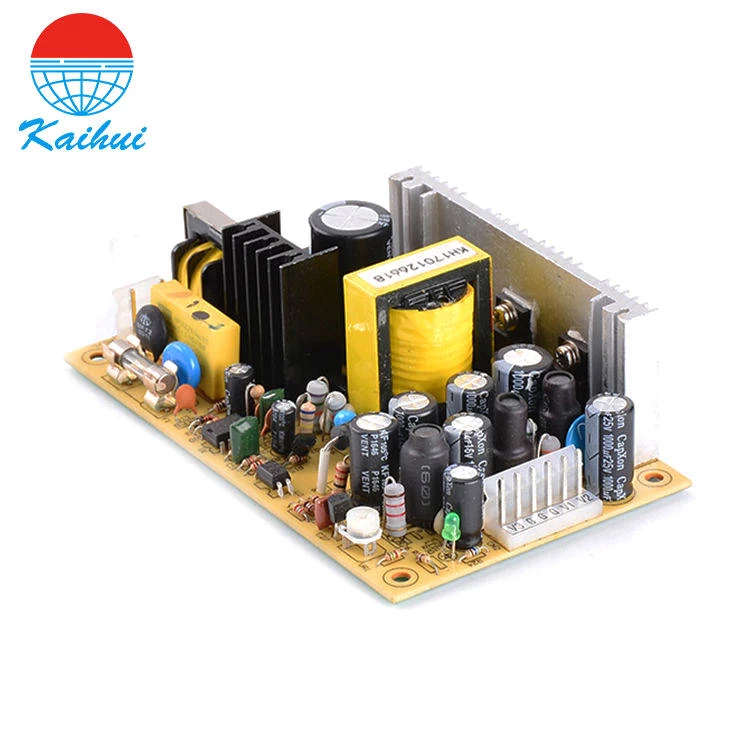

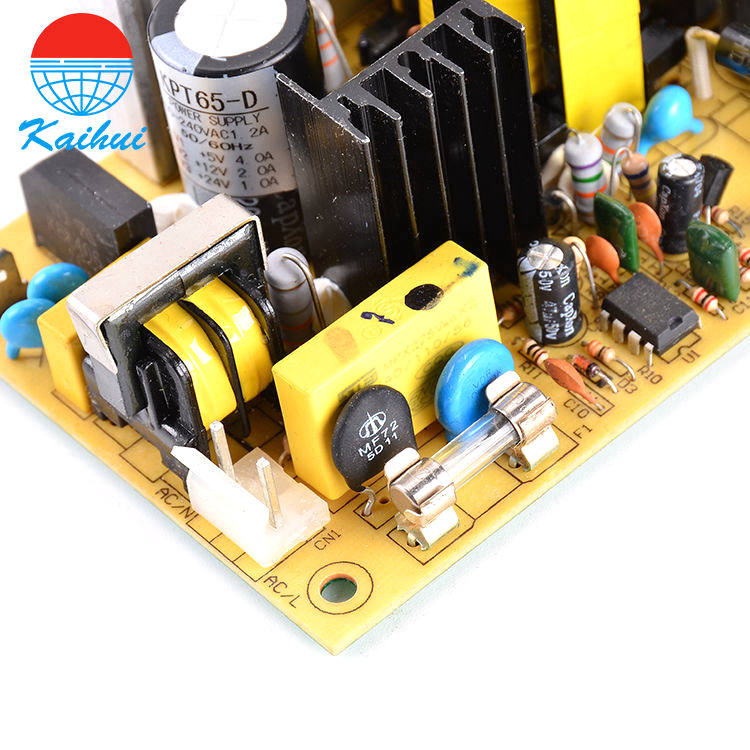

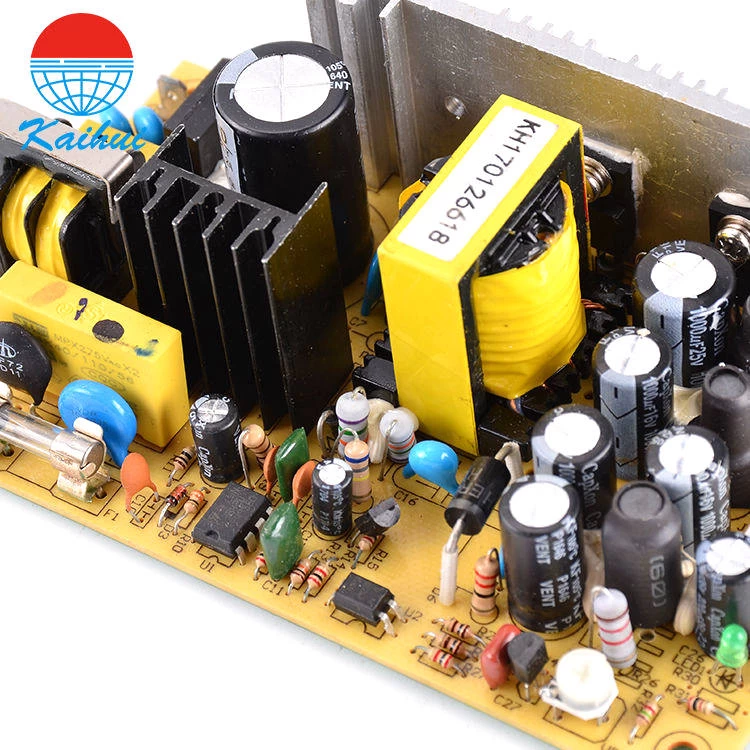

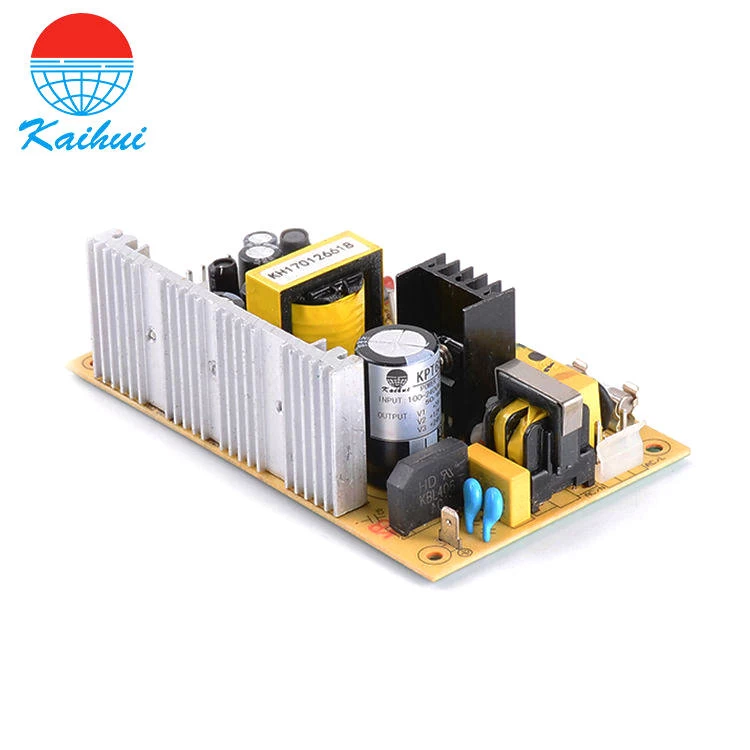

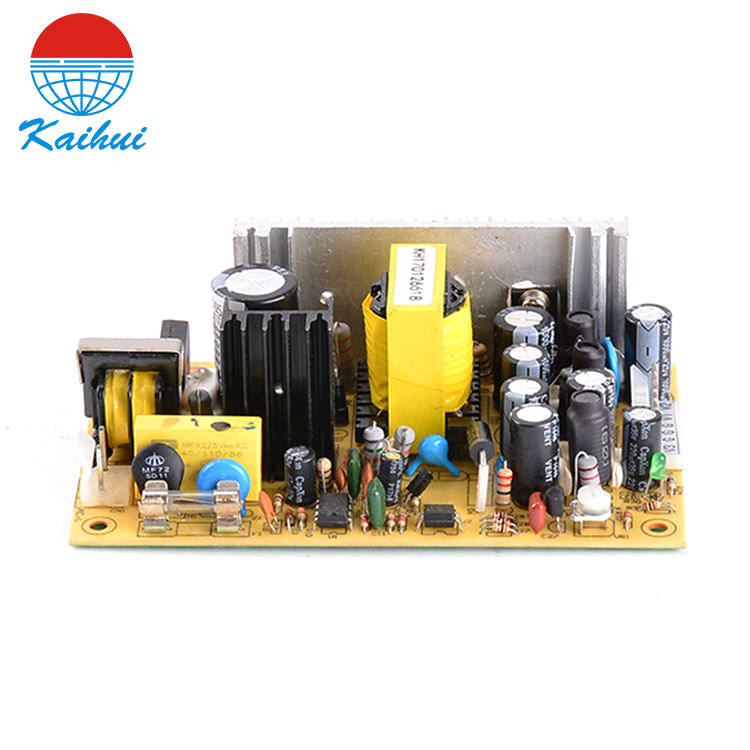

Product picture:
