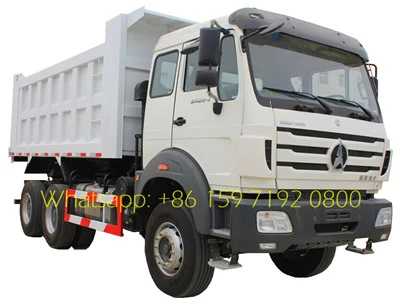

Truck Beiben 6x4 heavy Tipper Trucks Lowest Price supply

Beiben 2629 tipper truck, best benz technology 6*4 chassis, WP10.290 engine for good performance, FAST 9-shift manual gearbox, high strength Q550 steel tanker body special for rock and sand transportation. Our products are widely export Kenya, Algeria, Cameroon, etc

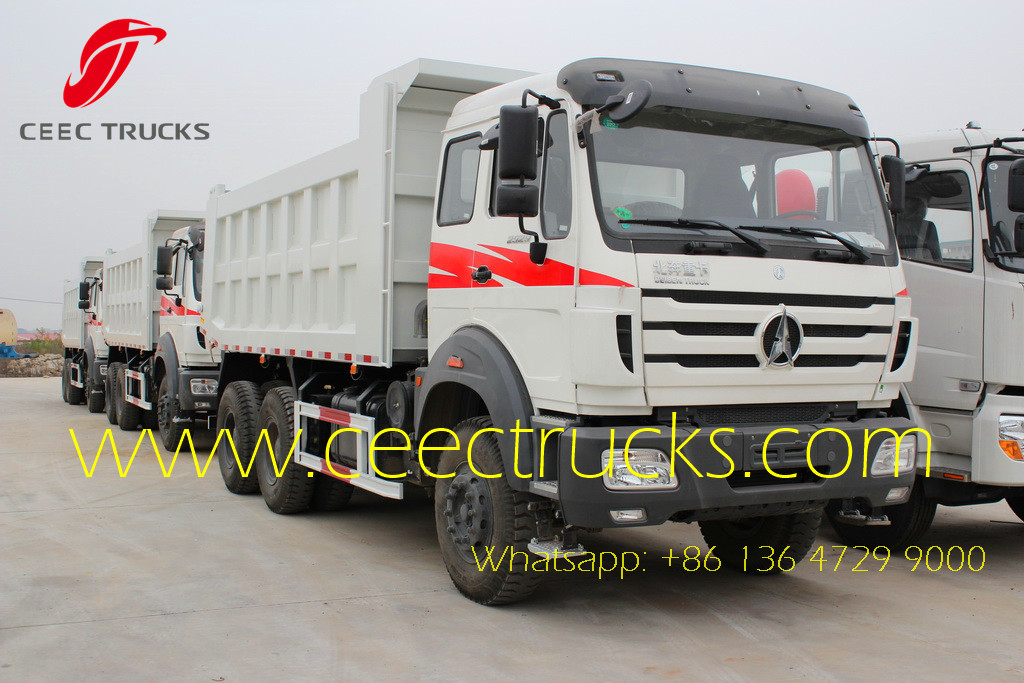

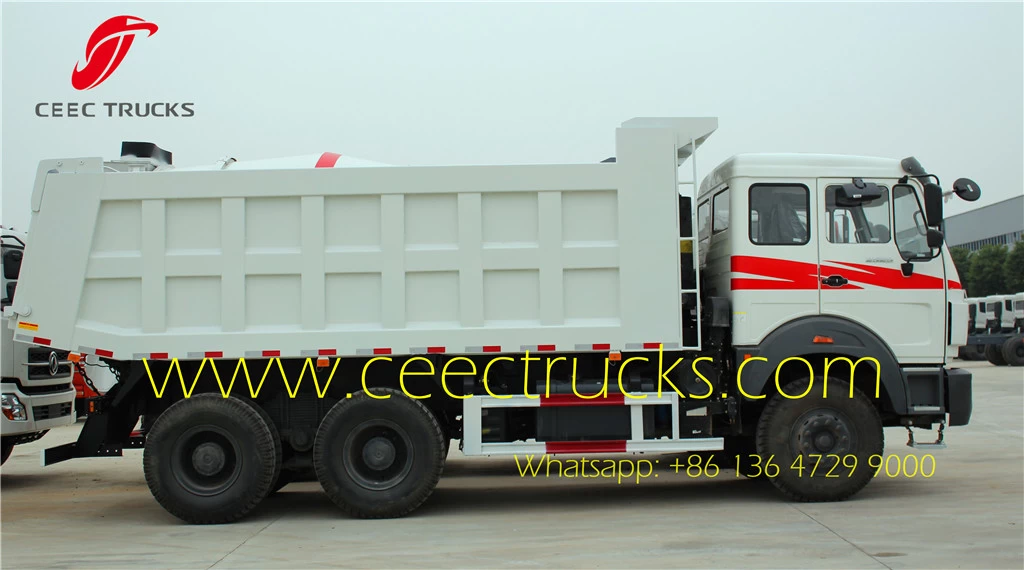

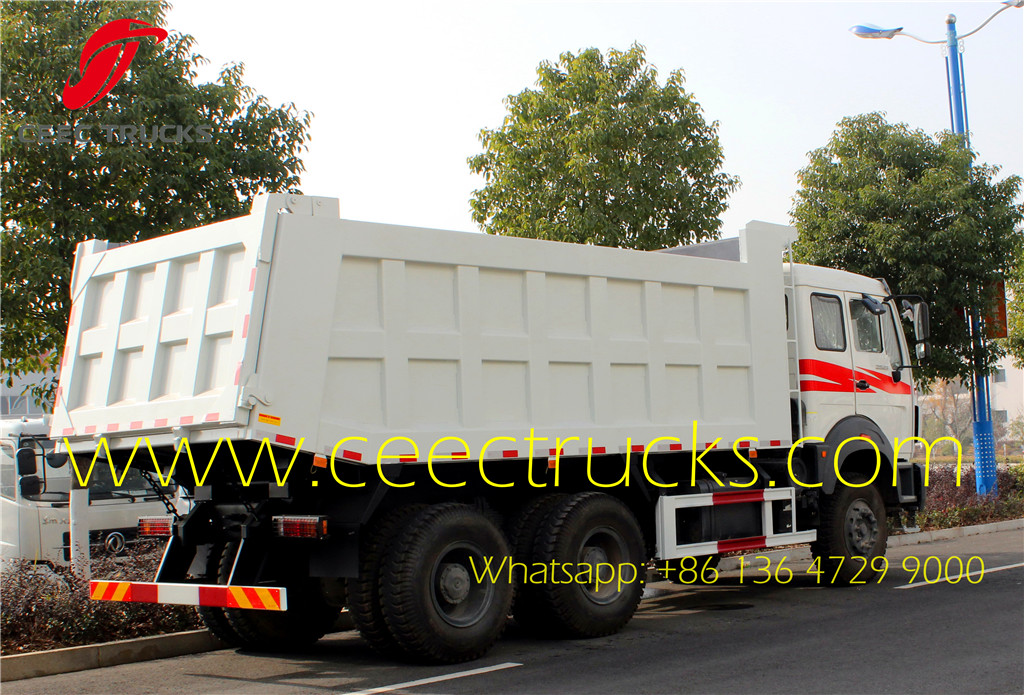

Beiben 2629 Dump Truck manufacturer supply lowest price

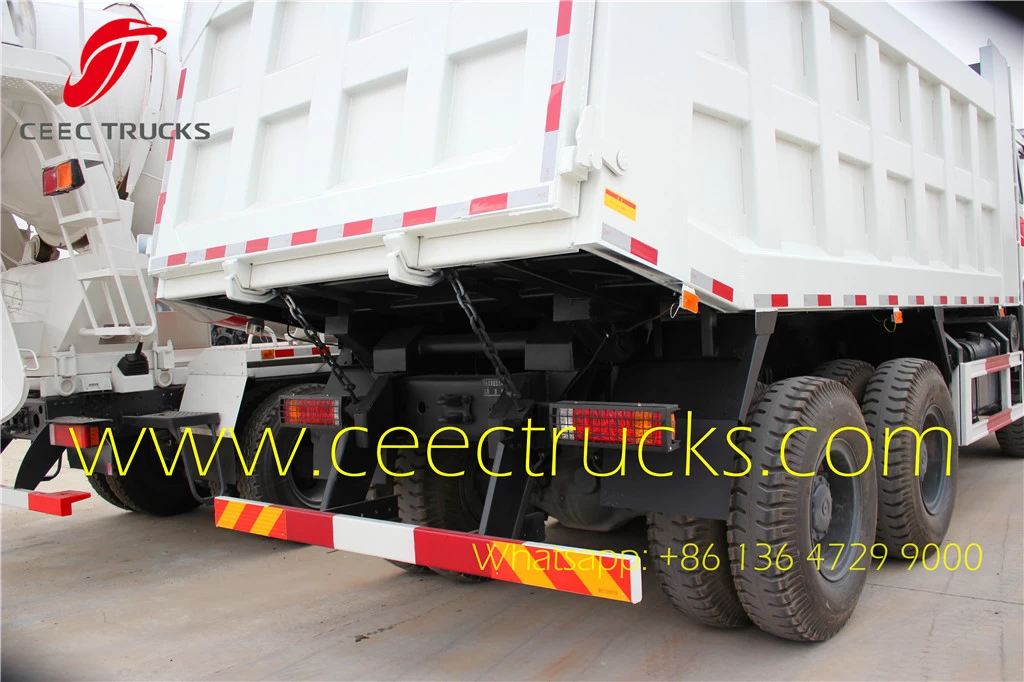

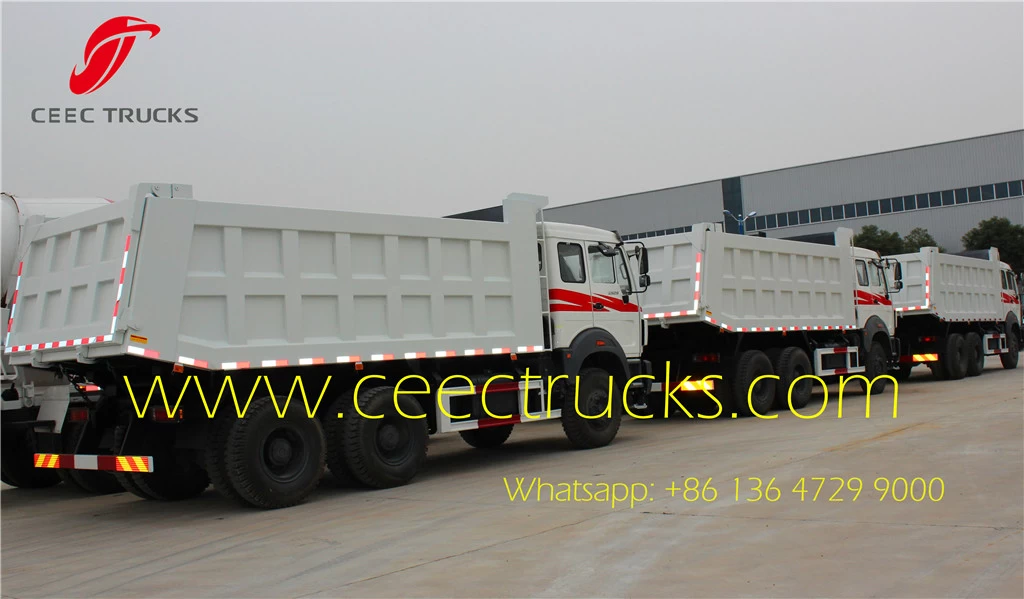

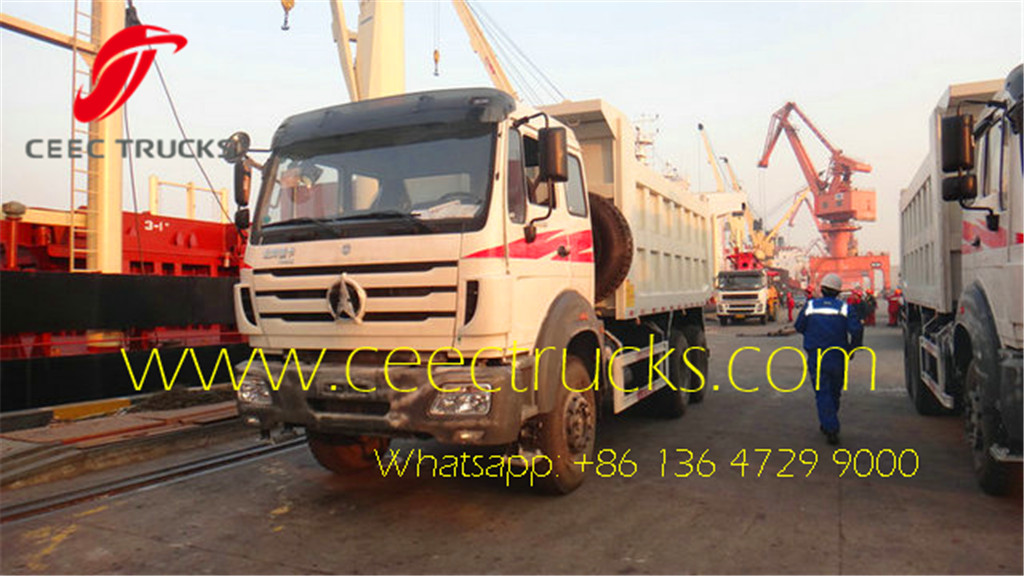

beiben 2629 dump trucks for export



Best Beiben 6*4 tipper trucks overall design is fashionable and pleasing to the eyes. The Classicial NG80 driving cab is created cooperatively by the company and European famous designing company. The structure of metal framework and stressed-skin exclusive to the domestic heavy-duty trucks makes possible the security of European vehicles at the same level, and can satisfy the requirements of European ECER29 Security Regulations.

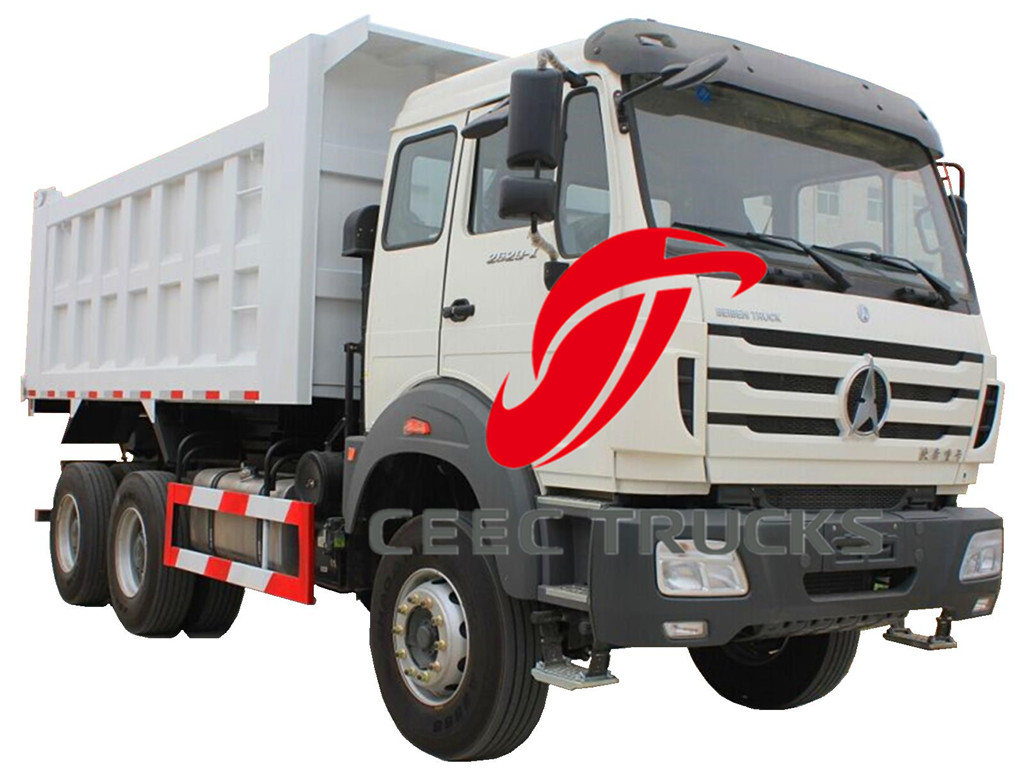

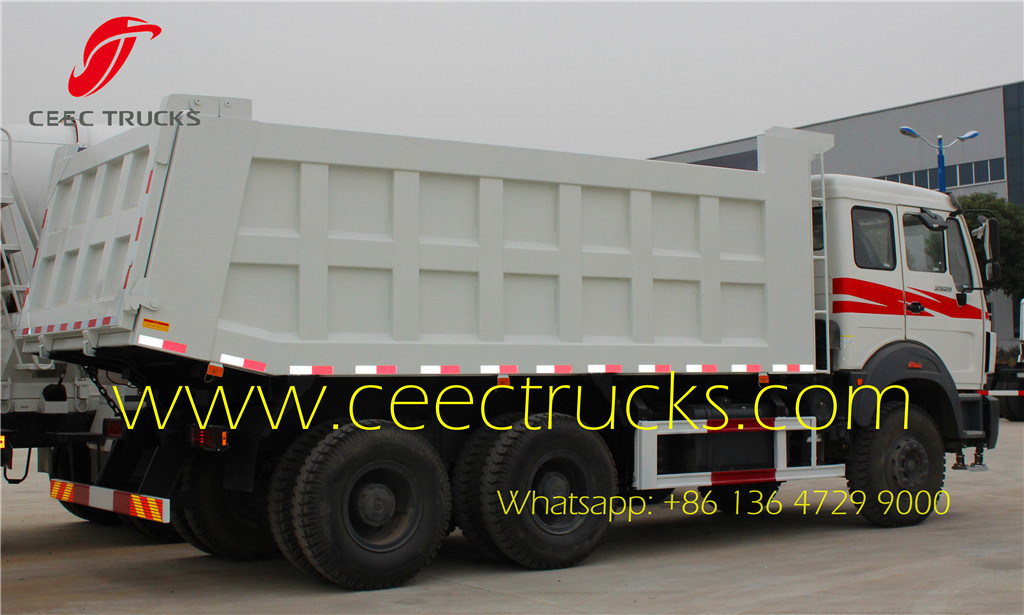

beiben 12 wheeler dumper truck



Advanced features for beiben dumper trucks:
â—† Germany BENZ technology dumper chassis with high durability and reliability

â—† Weichai diesel engine combined with original rear axle reducer gear and differential gear

â—†Continuous welding throughout body for additional strength, Full depth rear corner post with full depth rear crossmember.

â—† Enhanced dumper body, and the motherboard adopts variable cross-section beams.

â—† Special beiben Dump Body Design are optional

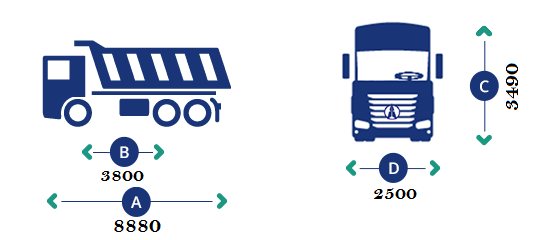

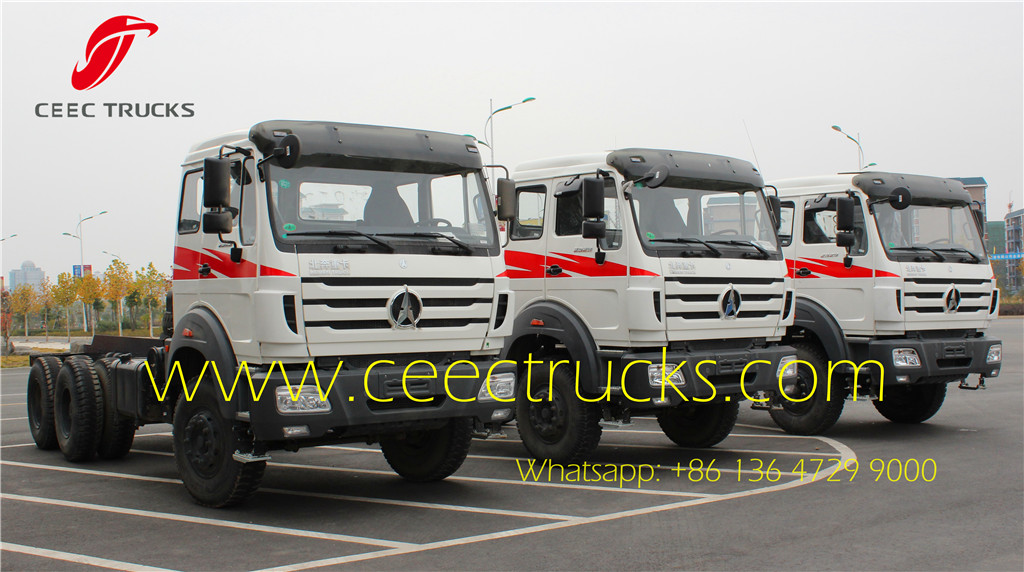

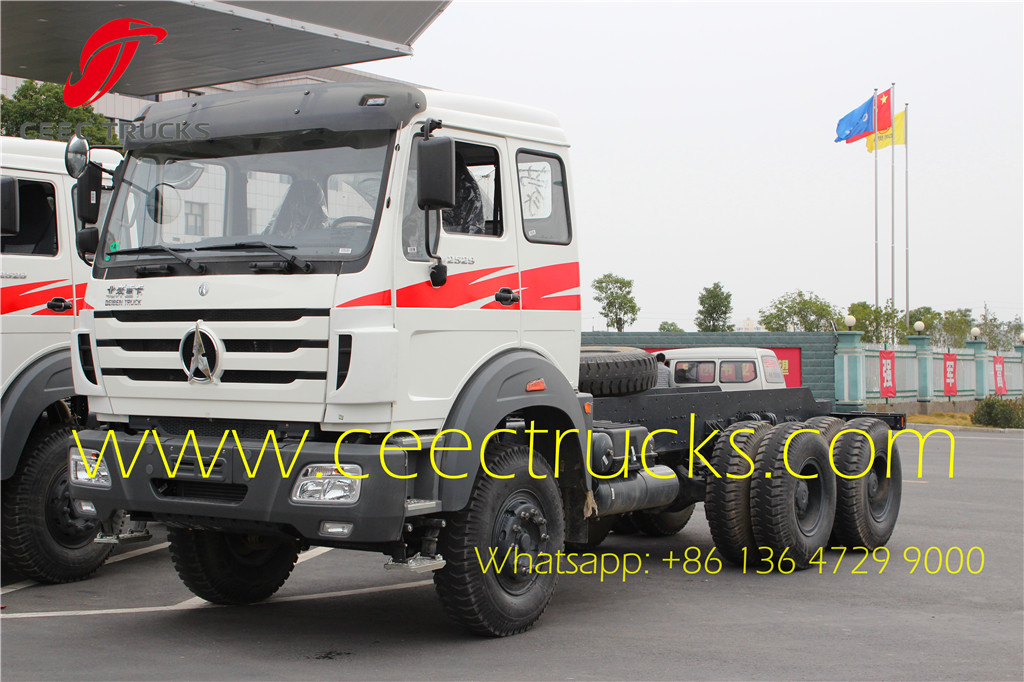

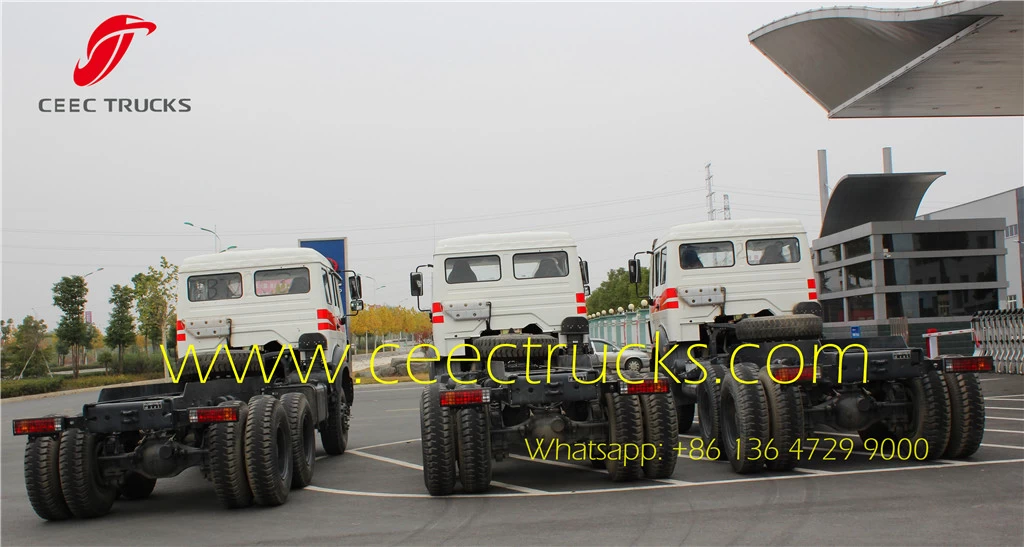

beiben 2538 dumper truck chassis dimension

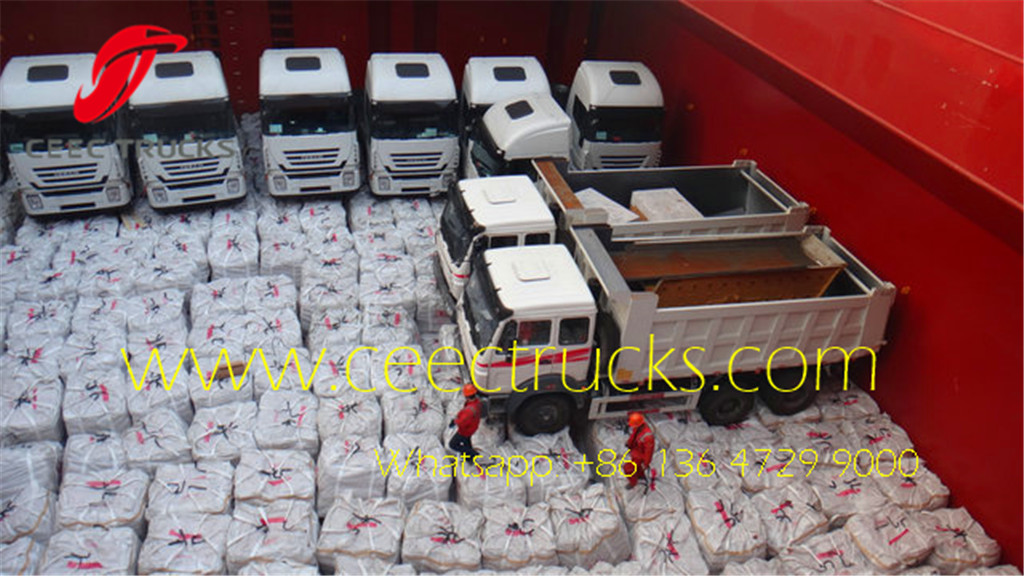

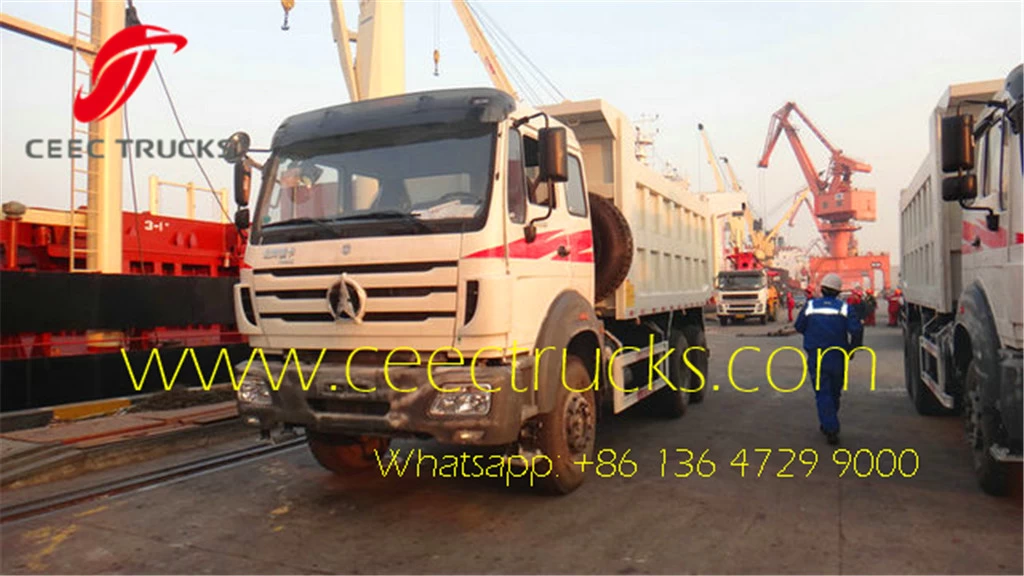

CEEC TRUCKS produced beiben 4*2, 6*4, 8*4 dump trucks are widely export to Africa countries including kenya, Algeria, Nigeria, Tanzania, Cameroon, etc.

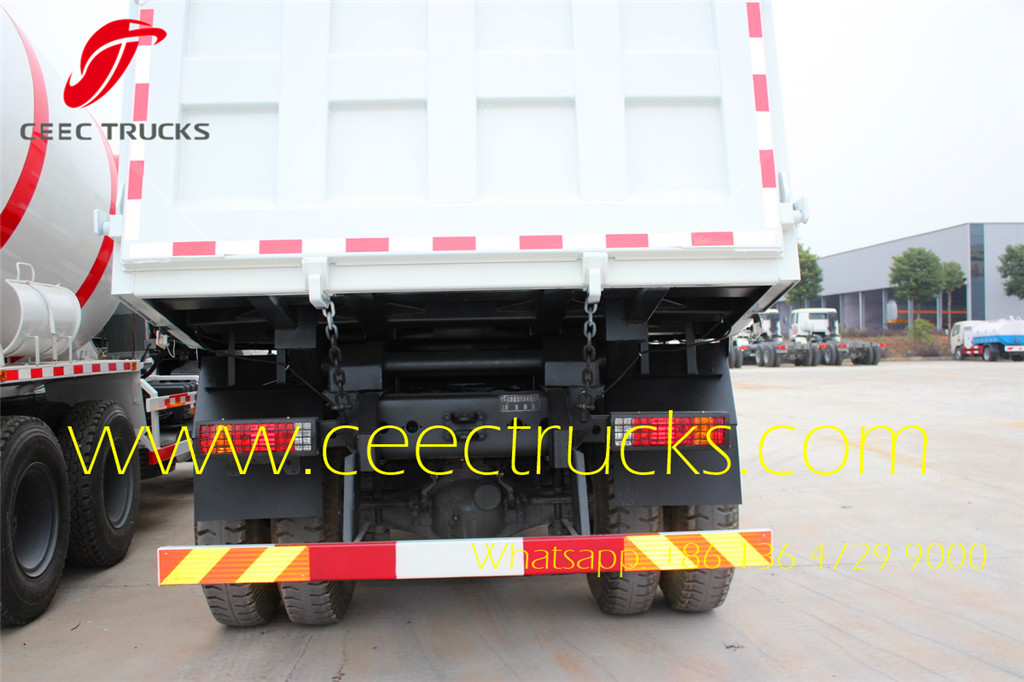

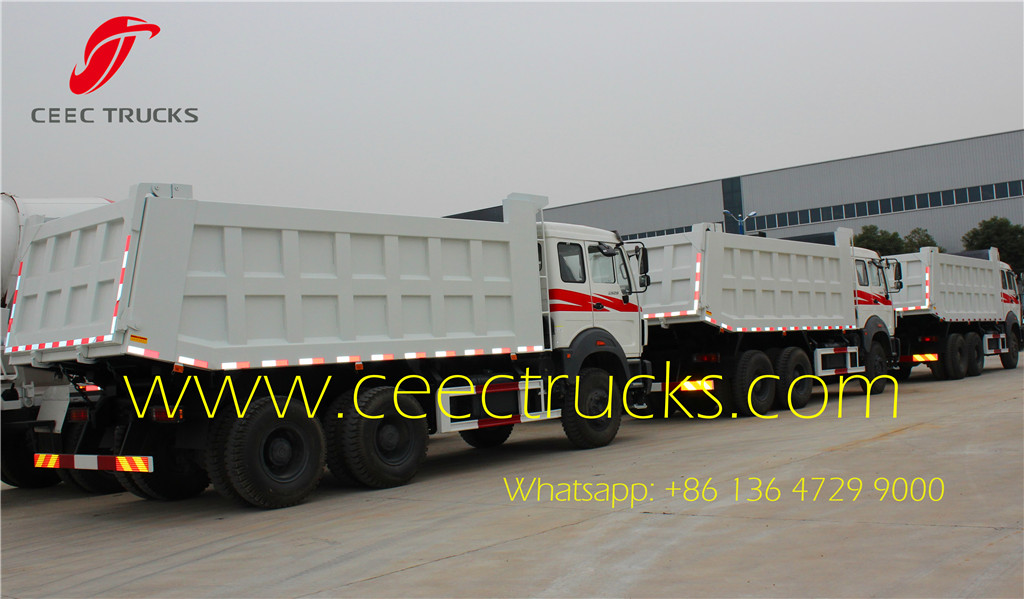

beiben 2629 dump trucks wholesale



Similar key words: beiben 2529 dumper truck, north benz 2629 dump truck, beiben 2629 tipping truck, beiben 2529 dump truck price, africa beiben dumper manufacturer, kenya beiben dumper truck, congo beiben 6*4, 8*4 dump truck, baotou beiben 10 wheel dump truck supplier.

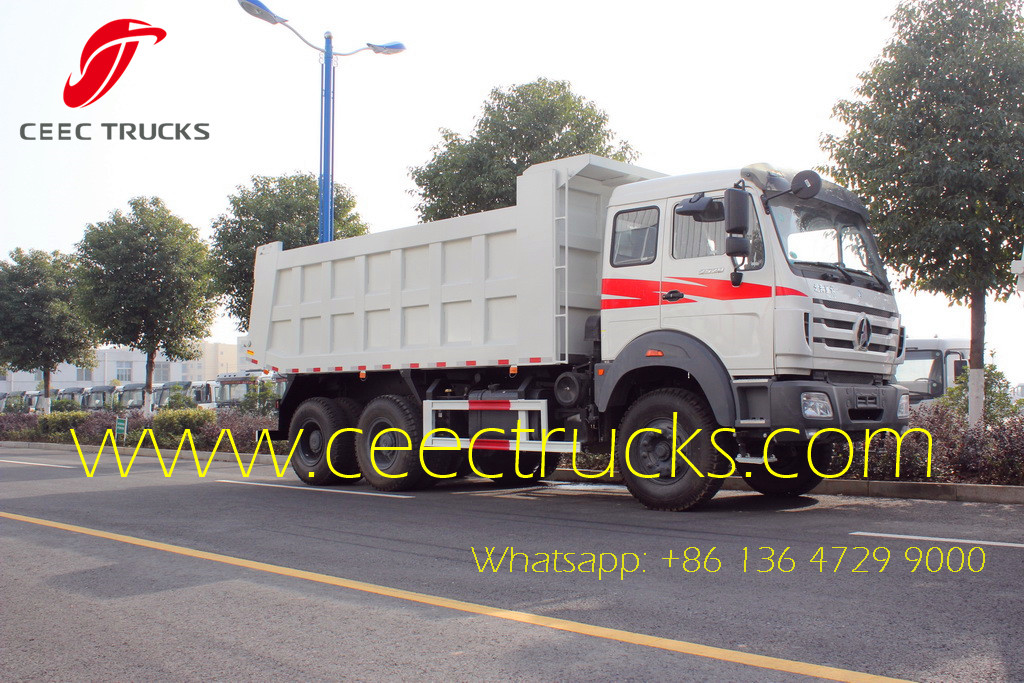

beiben 2629 dump trucks for sales

Beiben 2629 Dumper Trucks /6×4/4750+1450 Middle Long Cab

Dimension

8880*2500*3430mm

Upper body inner dimension

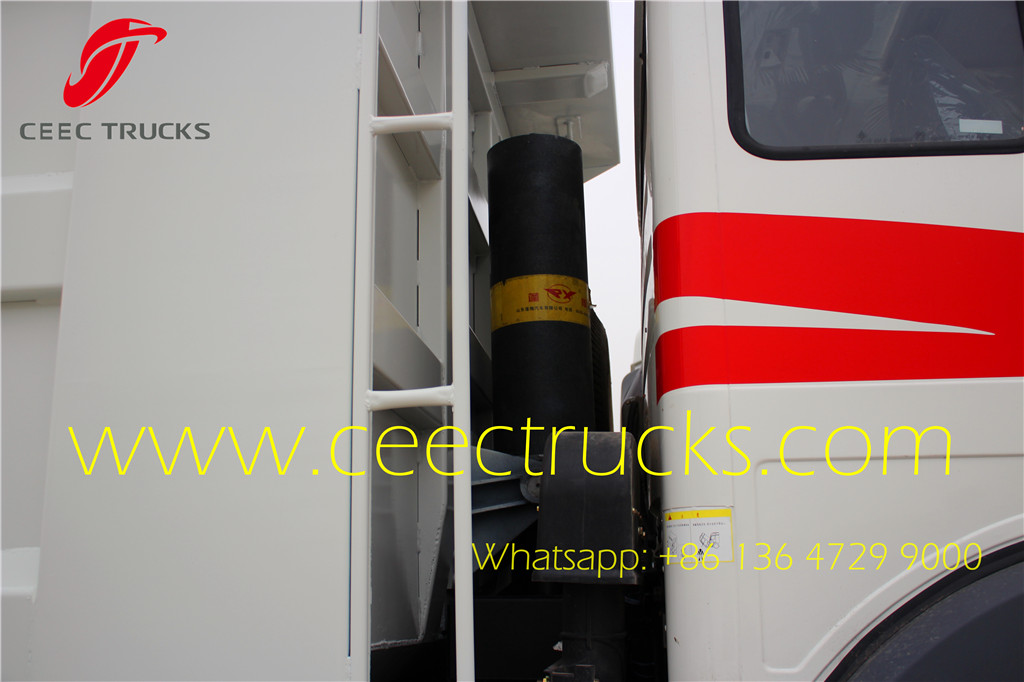

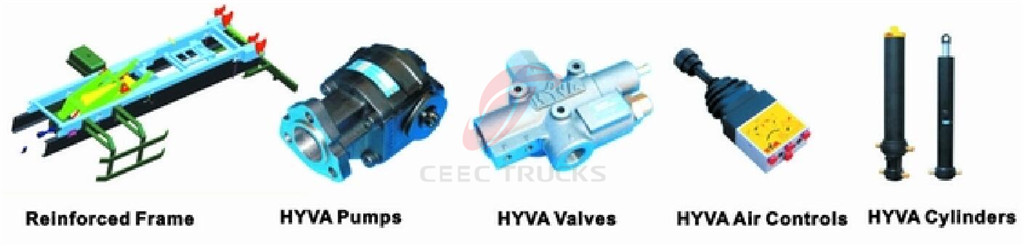

6200x2300x950 sand body, Hyva hydralic lifting system, thickness: bottom 8mm, side 6mm

Approaching angle/Departure angle

26/28°

Overhang(front/rear)

1515/2215mm

Wheel base

4750+1450mm

Max speed

90km/h

Curb weight

12280kg

Loading capacity

12590kg

Slope climbing capability

Max.40%

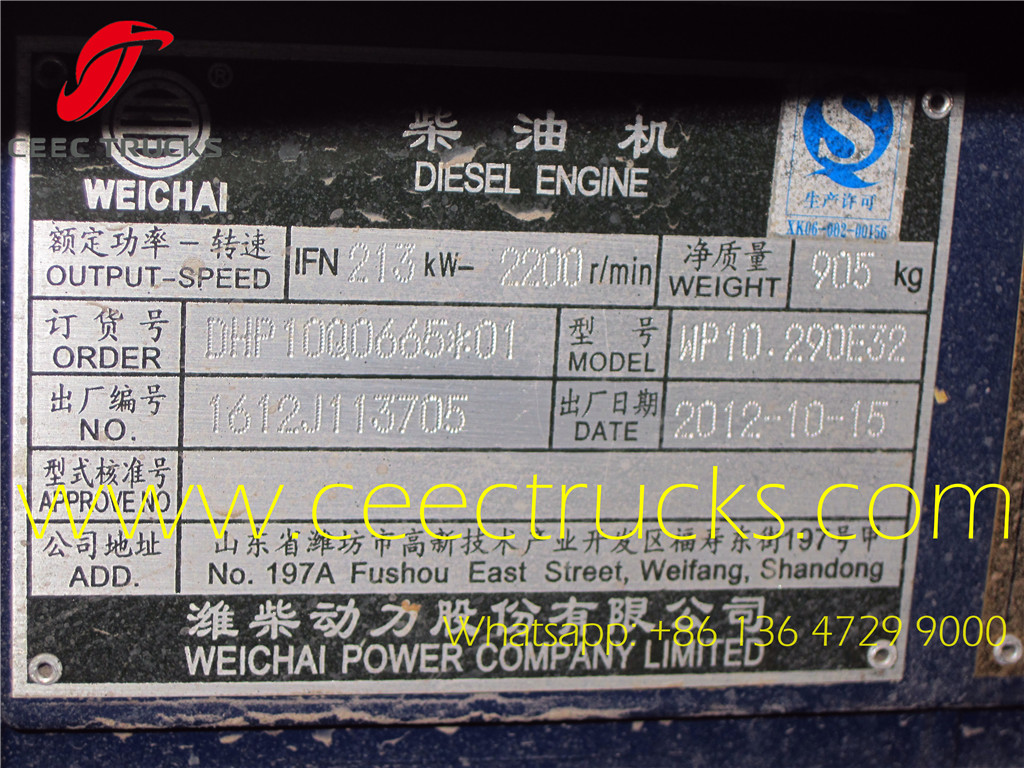

Engine

Model

WP10.290,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection

Displacement

9.726L/Diesel

Stroke

126/130mm

Max. power

276/2200 (kw/rpm)

Max.torque

1460/1200-1600(Nm/rpm)

Emission stantard

Euroâ…¢

Fuel tanker capacity

300L

Clutch

∮430, Single dry frictional disc,Hydraulic boosting

Gearbox

9JS180, mechanism,9 forward gears,1 reverse gear, manual operated,

Gear ratio of gear box

12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs

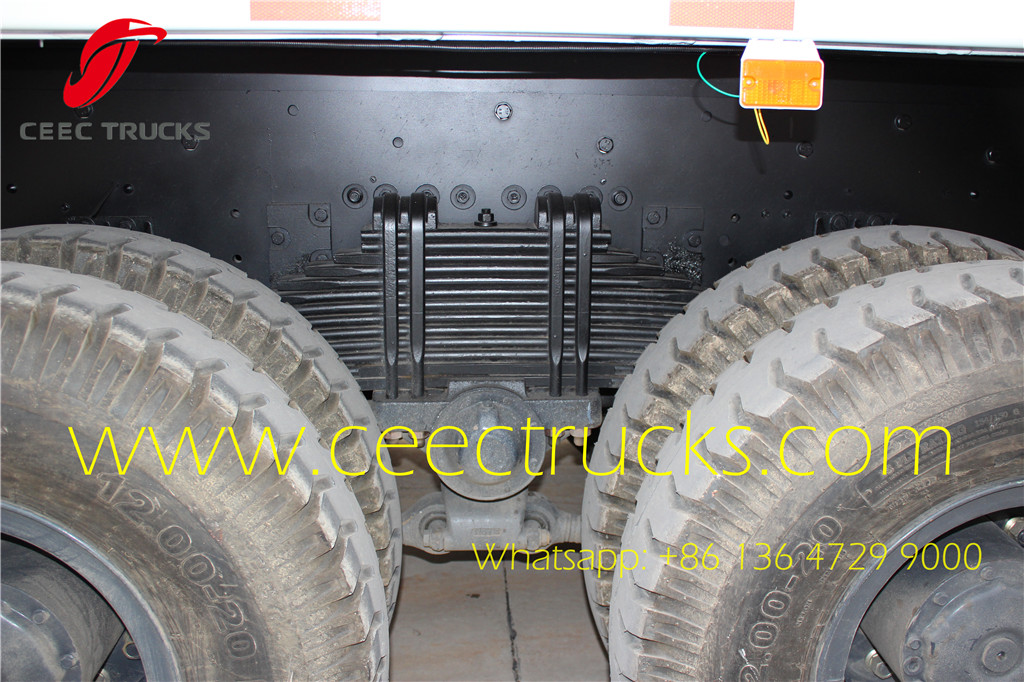

Rear

Non-free standing stablization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

ZJ120D,whole circulation in ball, hydraulic booster

Frame

Strengthened Streight beam

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

12.00R20 Radial

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cabin

V3 Middle-Long cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C

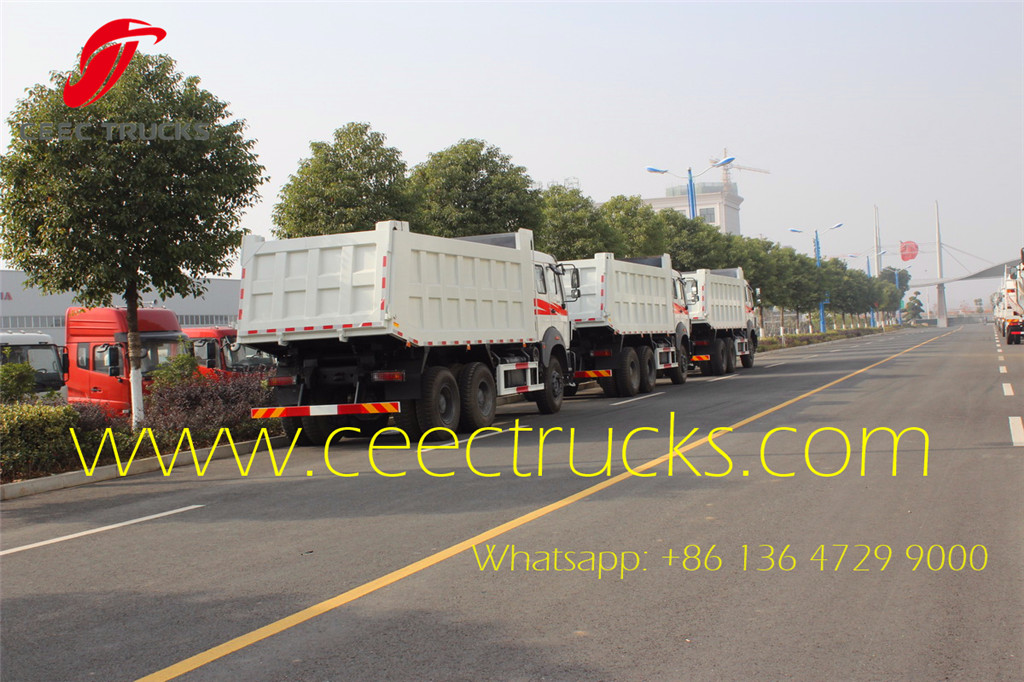

beiben 2629 dump trucks wholesale

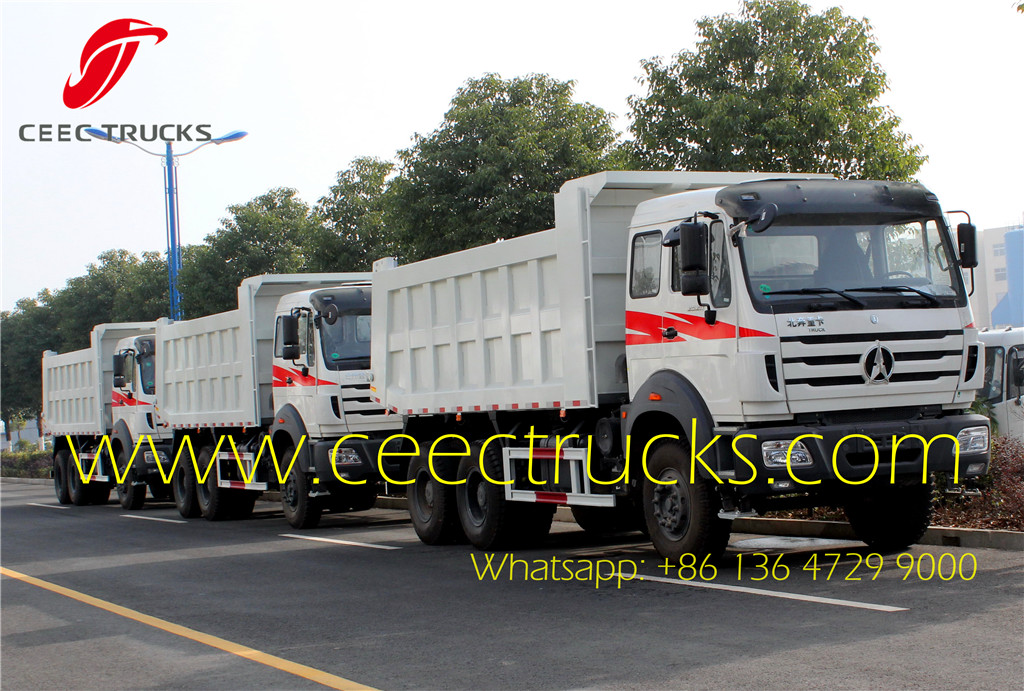

beiben 2629 dump trucks wholesale

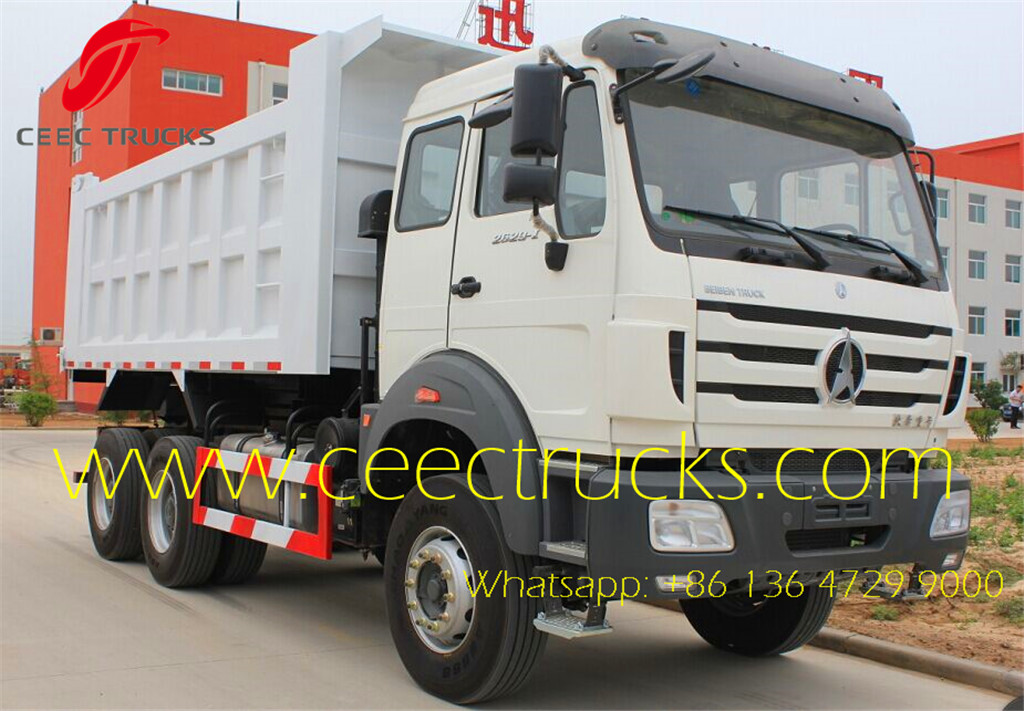

beiben 2629 dump trucks wholesale    beiben 2629 dump trucks wholesale
