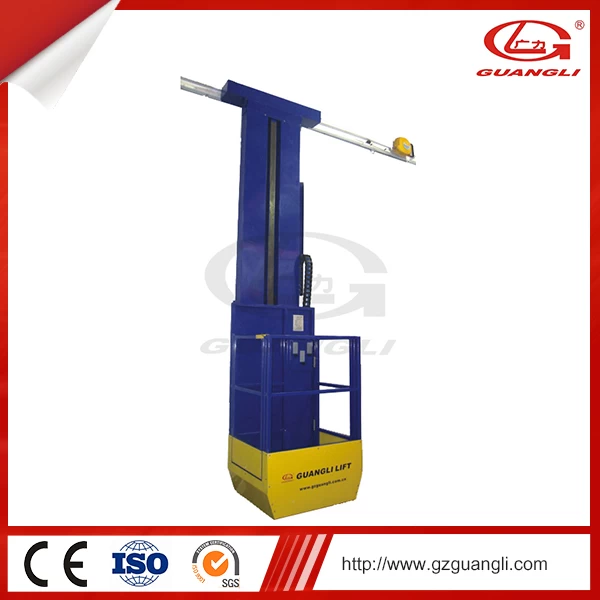

Man Lift for Truck Booths Work Access Platform GL1010

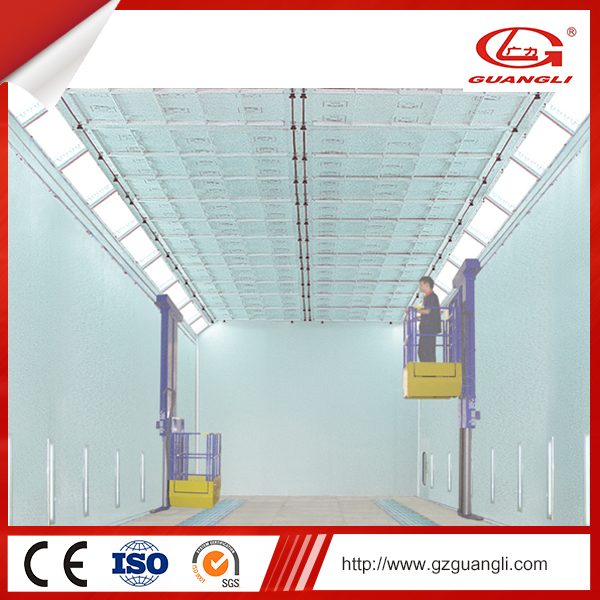

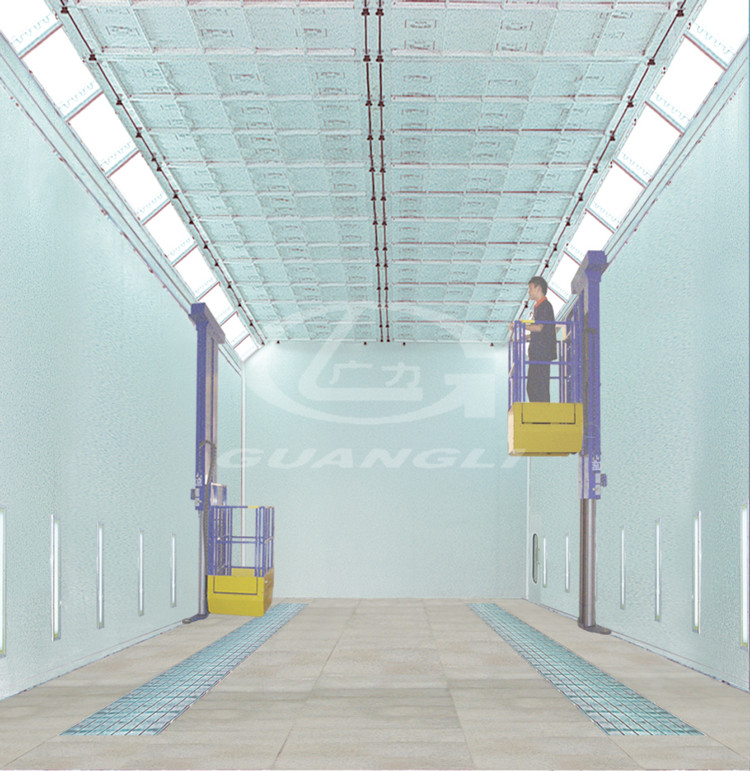

The GL1010 pneumatic lift Truck booth man lift work access platform is made for spray booths, paint booths and Preparation room fixing and maintenance such as:
-
Trucks
-
Railway
-
Buses
-
Farm Vehicles
-
Military Vehicles
-
Commercial Vehicles
-
Aerospace (Planes & parts of planes)
Till now the GL1010 man lift work access platform has been exported more than 60 countries in the past 10 years. the man lift is controlled by a control box in the front of platform, so the worker can operator and adjust the platform up, down, forwad, back, left and right move the lifts to specific location of the parts quickly and safety, the work access platform through a gude rail system to move: Up, Down, Forward and Back and install on the wall of the booth.
The Manlift Features:
-
High quality and durable
-
Easy operation and minimum of maintenance
-
High efficiency when painting and fixing the parts
-
Easy to install in paint and preparation rooms wall
-

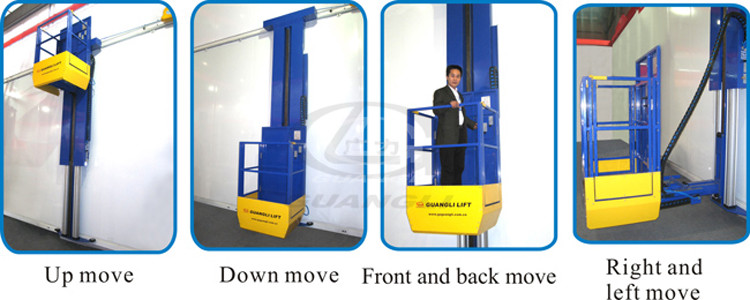

Up, down, forward, back, left and right move quickly and fast when performance
-
Safety, fast and efficiency for the operator when performing work at the height.
|
Model No.
|
GL1010
|
Load capacity people (quantity/weight)
|
1 person (below 150kgs)
|
Working pressure(bar)
|
6-7
|
Normal pressure(bar)
|
6.5
|
Working fan capacity(1/min)
|
350
|
Max lifting height(mm)
|
3100
|
Working table move distance(mm)
|
900
|
Working table size(mm)
|
900 x 720 x 1400
|

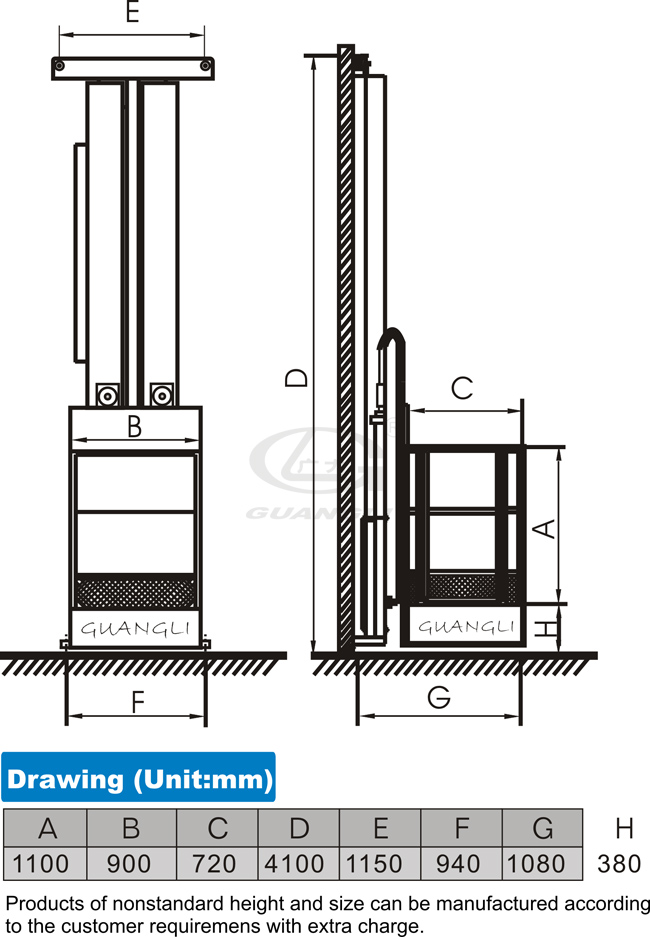

3D PAINT BOOTH LIFT DETAILS:
