Truck Description
CNCSC Crane Truck can equip from 2T to 20T crane, and is a multi functional truck that for transport and lifting goods. Truck cranes are divided into straight arm and folding arm type. The advantage of truck mounted crane is to integrate hoisting and transportation into one, and they are mostly used in stations, warehouses, docks, construction sites, and field rescue facilities.
Advantages:
1. Sinotruk chassis, good service life.
2. Advanced development & analysis means make sure design is very reliable.
3. Equip XCMG straight arm crane between the cab and van box.
4. Advanced key hydraulic components make the operation safe and reliable.
5. Anti-slewing impulse equipment that make vehicle running safely.
|

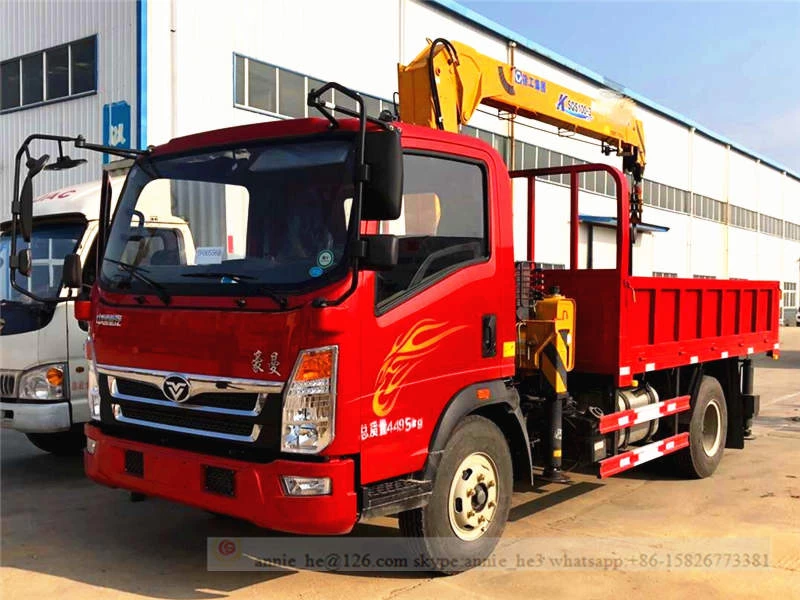

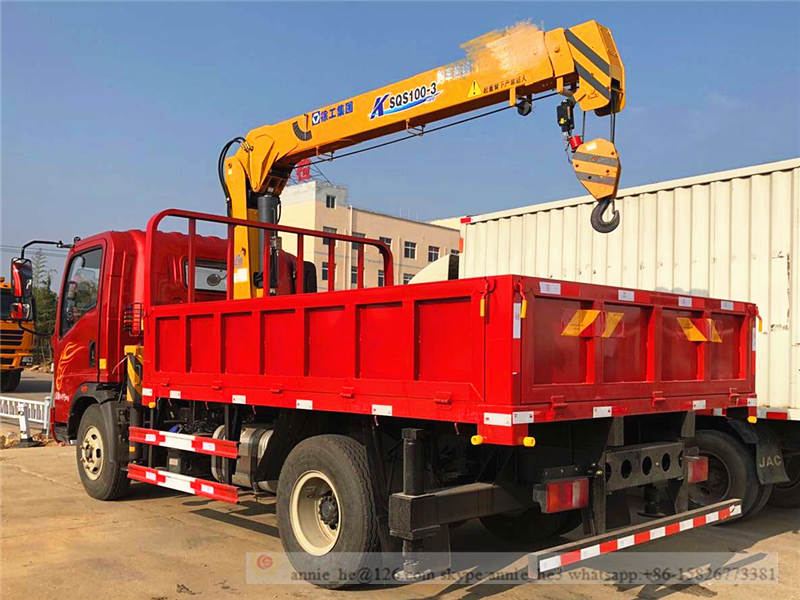

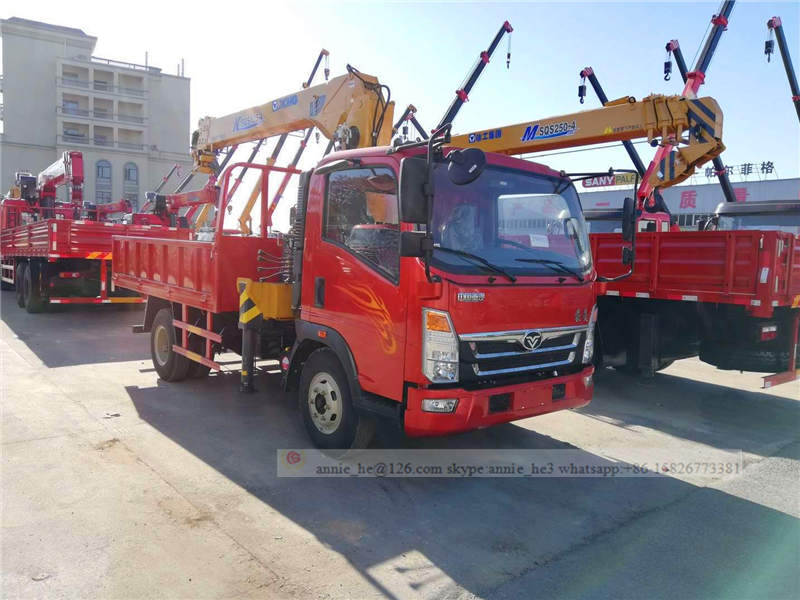

Truck with crane 5T Sinotruk
|
|
Truck
description
|
GVW (kg)
|
13570
|
|
Kerb weight (kg)
|
8200
|
|
Overall
dimension (mm)
|
Length
|
8150
|
|
Width
|
2490
|
|
Height
|
3550
|
|
Box
dimension(mm)
|
Length
|
4300
|
|
Width
|
2300
|
|
Height
|
550
|
|
Chassis
|
Number of axles
|
2
|
|
Allowable Passengers in cab
|
2
|
|
Transmission
|
8 speed
|
|
Wheel base(mm)
|
3900
|
|
Rear Axle
|
8T
|
|
Exhaust/output
|
3760ml/95kw
|
|
Tire specification
|
8.25R16
|
|
Crane
Description
|
Max lifting Capacity
|
5000kg
|
|
Max lifting height
|
12.5m
|
|
Working radius
|
11m
|
|
Rotation Angle
|
360°
|
|
Other remark
|
Above specification is just for reference, please send us your request details.
|
|
