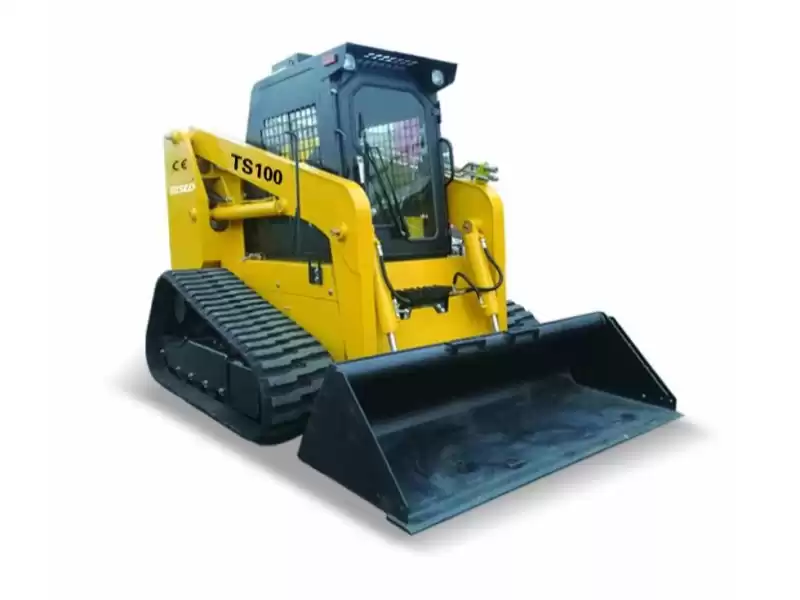

TS100 operating capacity 1200 kgs crawler skid steer loader


Rated load: 1200 kgs

Rated power: 74 kw

Operating weight: 4500 kgs

Bucket Capacity: 0.5 m3

Overall length: 3700 mm

Overall width: 1994 mm

Overall height: 2160 mm




We not only provide skid steer loaders, also independent R&D relative attachments for loaders, including backhoe, drill, trencher, sweeper, mixer, cutting machine, brush cutter, hydraulic breaker, dozer blade, 4 in 1 bucket, wood and grass grapple, pallet fork etc more than 100 kinds of attachments.

Can customized made to satisfy your special requirements.


Technical Parameters

Rated operating capacity(kg)

1200

Tipping load (kg)

2400

Bucket capacity(m3)

0.4-0.5

Hydraulic pump flow (L/min)

100

Engine power (hp)

80

Weight(kg)

4000

Max travel speed (km/h)

8/16

Grade ability

20

Fuel/hyd. Oil capacity(L)

85

Dimensions:

Skid Steer Loader

    TS80

A-Height to top of ROPS

    2160mm

B-Ground clearance

    200mm

C-Max1ift height at hinge pin

    2920mm

E-Length of under carriage

    1938mm

F-Machine length without bucket

    2780mm

G-Machine length with bucket

    3580mm

H-Machine width

    1880mm

I-Track width

    320mm

D-Length of track on ground

     1500mm



Product Tags skid steer crawler loader          skid loaders          crawler wheel loader
