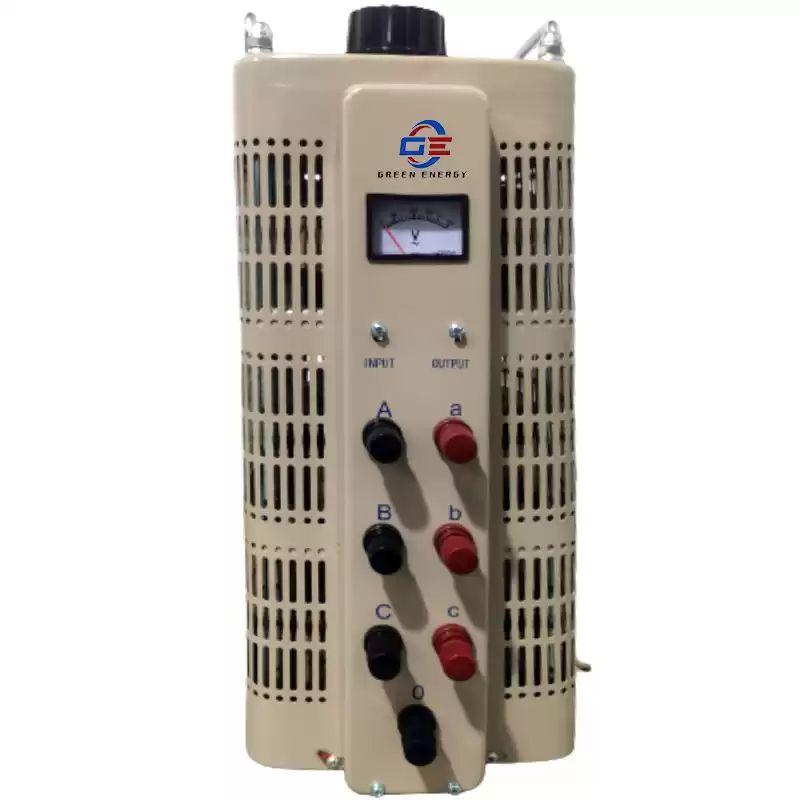

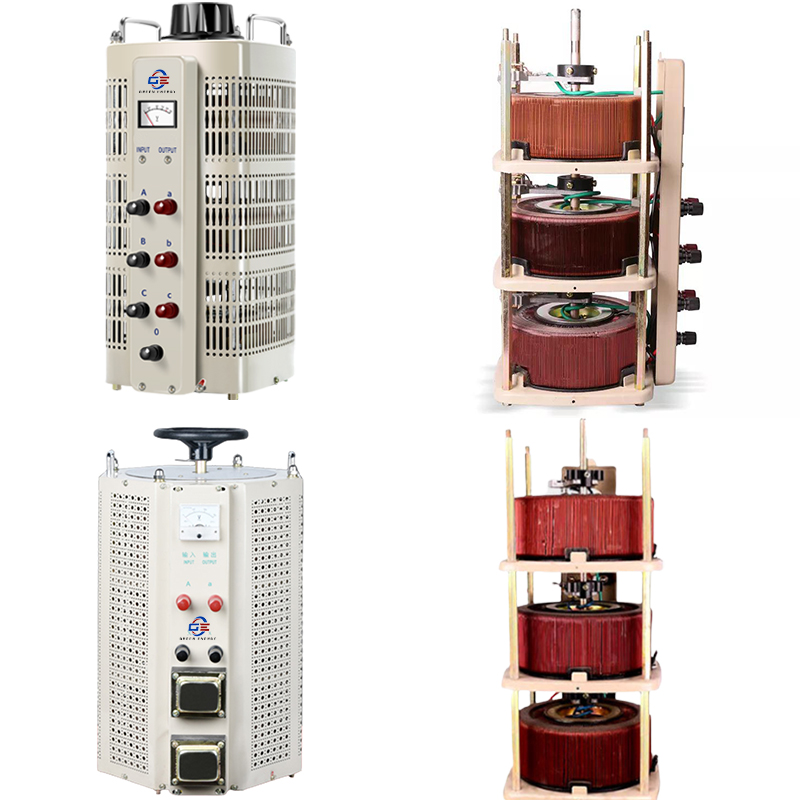

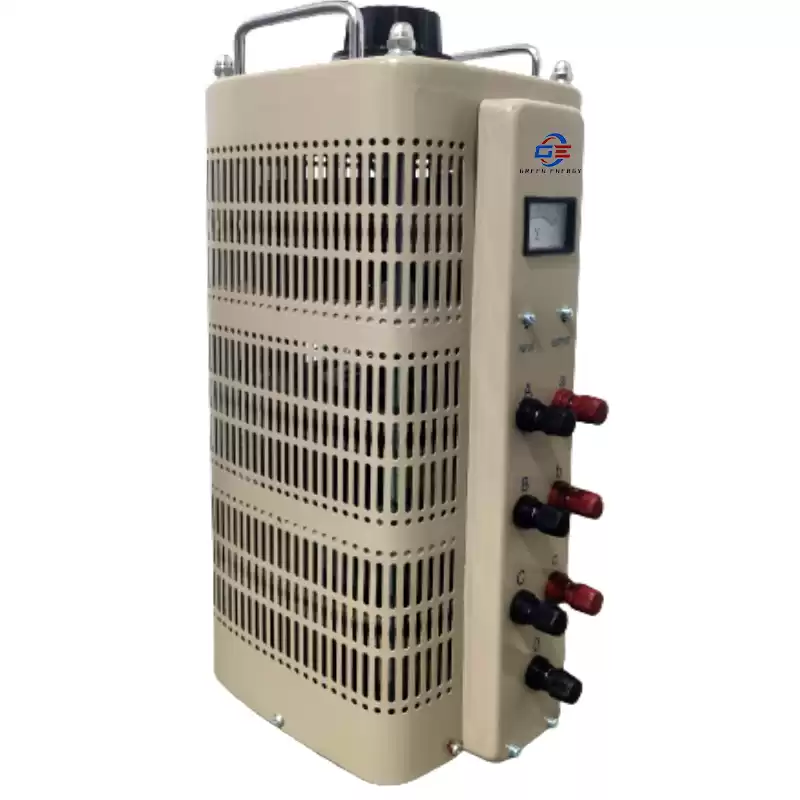

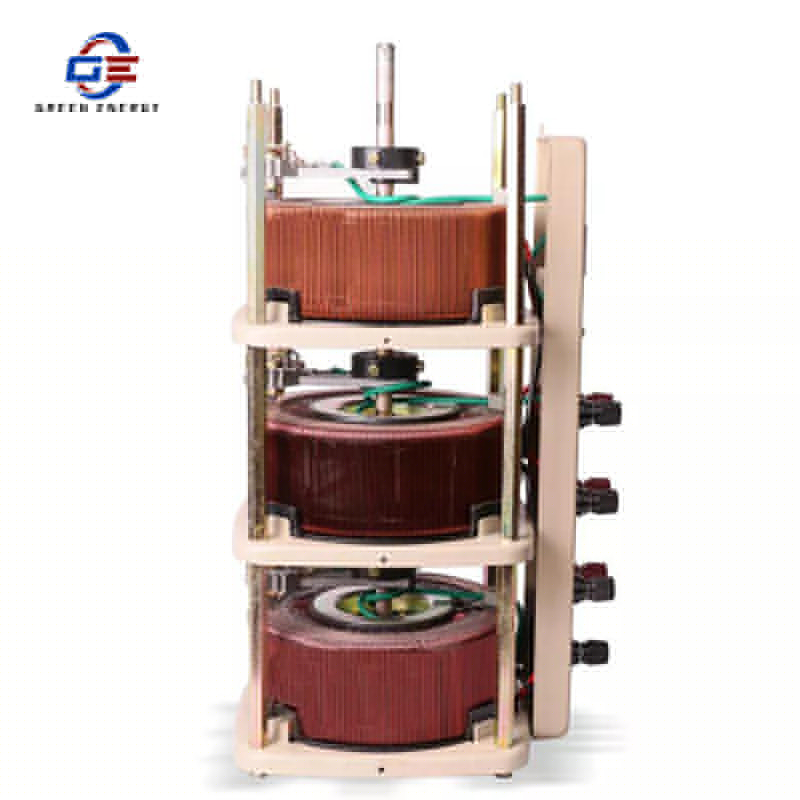

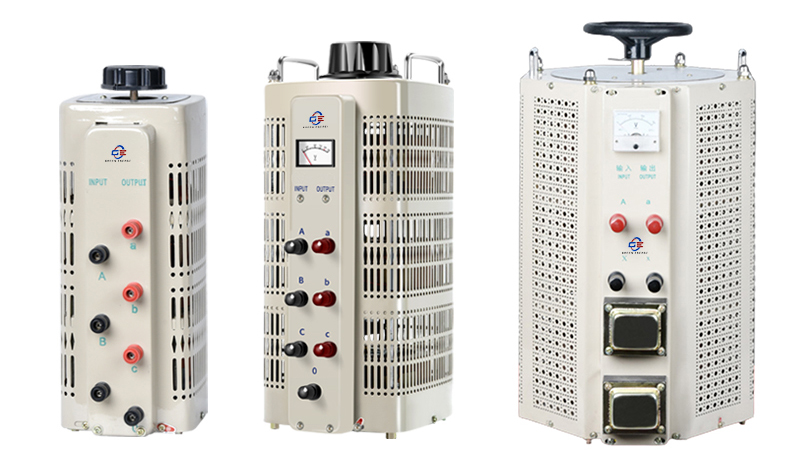

TSGC2 TSGC2J Three Phase Voltage Regulator for Laboratory and Factory

⇒ PRODUCT DESCRIPTION

The main working principle of the TSGC series voltage regulator is to connect the four-layer three-terminal semiconductor device between the power supply and the load, and with the corresponding trigger control circuit board, the voltage, current and power applied to the load can be adjusted. It is mainly used for heating power adjustment of various electric heating devices. It can be adjusted "manually" or cooperated with electric regulating instruments, intelligent regulating instruments, PLC and computer control systems to realize constant value or program control of heating temperature.

Three-phase voltage regulator realizes precise temperature control through precise control of voltage, current and power. And with its advanced digital control algorithm, the power usage efficiency is optimized. It plays an important role in saving energy.

Product Performance

Working Frequency: 50Hz/60Hz

Efficiency: 95%

Waveform Distortion: No Additional Distortion

Temperature Rise:<60℃

Dielectric Strength: 2000V/min

Insulation Resistance: Three-phase>2MΩ

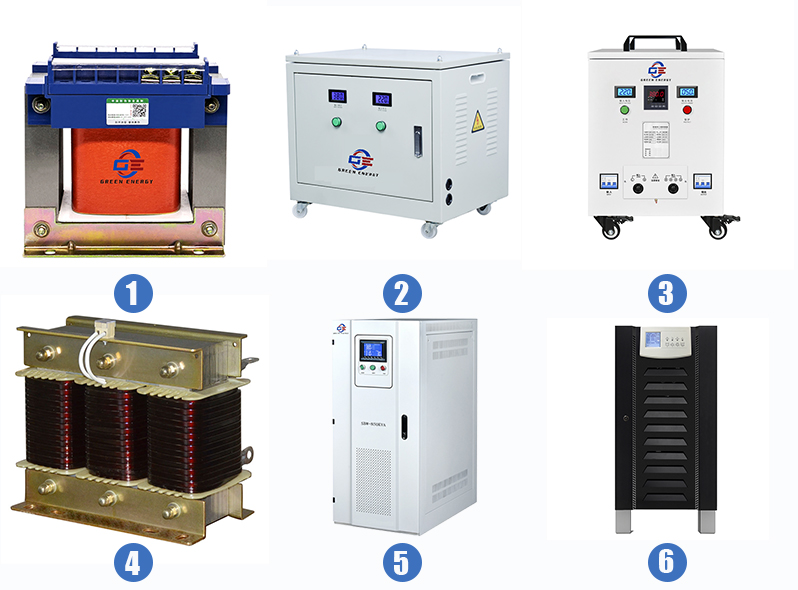

⇒ RELATED PRODUCT
