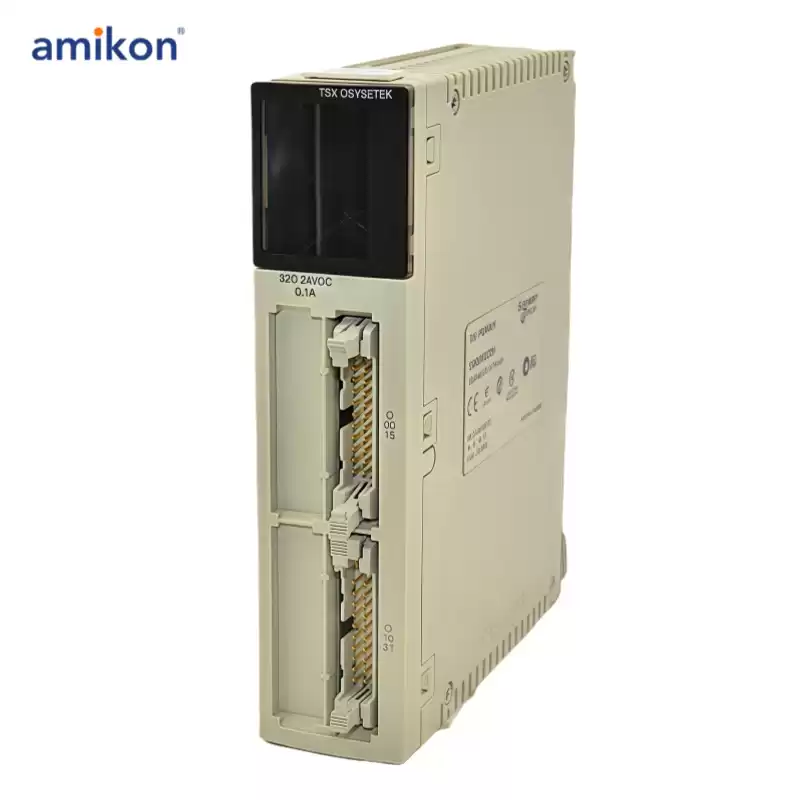

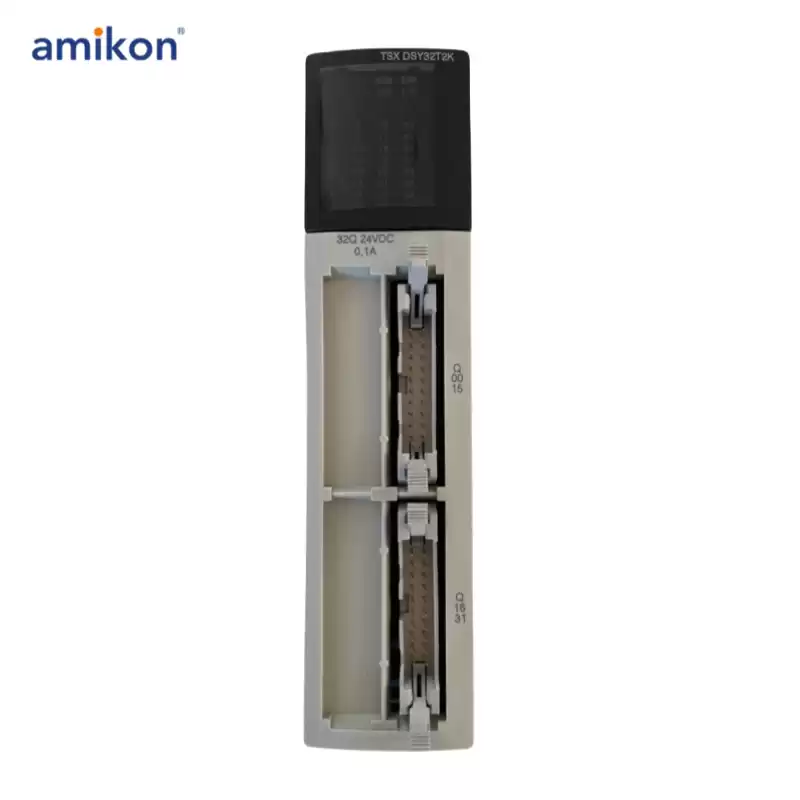

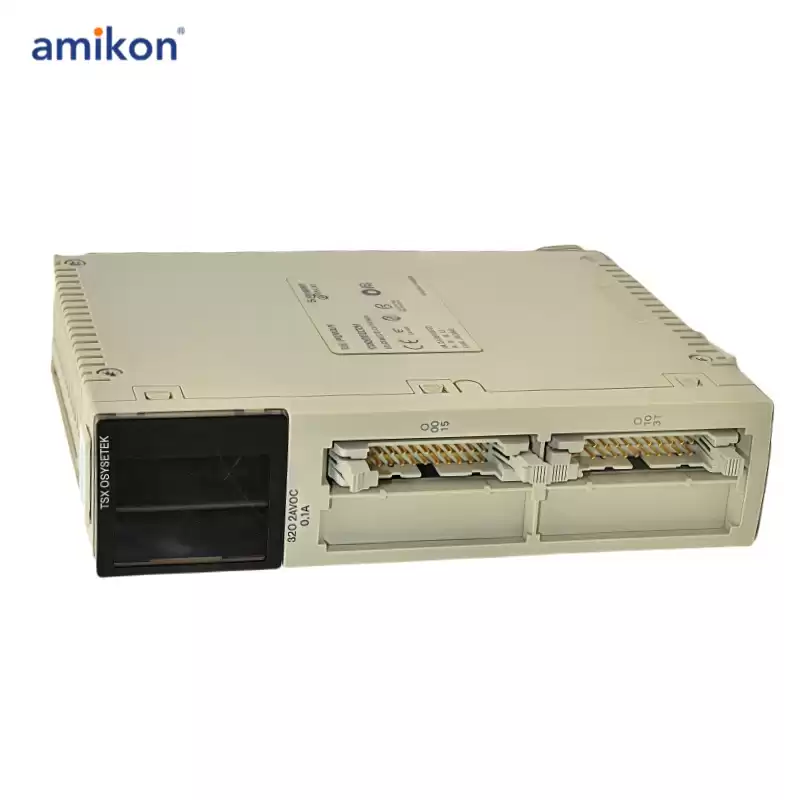

TSXDSY32T2K Schneider Discrete output module

Main

Range of product

Modicon Premium Automation platform

Product or component type

Discrete output module

Discrete output number

32

Discrete output type

Solid state protected

Discrete output voltage

24 V DC positive conforming to EN/IEC 61131-2 19...30 V

Complementary

Current per channel

0.1 A

Maximum current per module

3.2 A

Maximum leakage current

0.1 mA, at 30 V

Maximum tungsten load

1.2 W

[Ures] residual voltage

1.5 V

Response time

1.2 ms

Paralleling of outputs

Yes : 3 maximum

Output overvoltage protection

By transil diode

Reverse polarity protection

Reverse mounted diode

Output overload protection

Automatic trip

Short-circuit protection

Automatic trip

Minimum load impedance

220 W at state 1

isalotion resistance

> 10 MOhm 500 V

Power dissipation

(1.6 W + 0.1 W x No of outputs)

Product compatibility

Dial and Power

Marking

CE

Electrical connection

2 connectors HE-10

Current consumption

140 mA at 5 V DC

Module format

Standard

Net weight

0.3 kg

Environment

Dielectric strength

1500 V 50/60 Hz 60 s

Standards

CSA C22.2 No 213 Class I Division 2 Group A

CSA C22.2 No 213 Class I Division 2 Group B

CSA C22.2 No 142

CSA C22.2 No 213 Class I Division 2 Group D

73/23/EEC

CSA C22.2 No 213 Class I Division 2 Group C

IEC 61131-2

89/336/EEC

UL 508

92/31/EEC

93/68/EEC

Product certifications

ABS

RINA

GL

DNV

RMRS

LR

BV

Ambient air temperature for operation

0…60 °C

Ambient air temperature for storage

-25…70 °C

Relative humidity

10…95 % without condensation for operation

5…95 % without condensation for storage

Operating altitude

0...2000 m

Protective treatment

TC

IP degree of protection

IP20

Pollution degree

2

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.5 cm

Package 1 Width

18.0 cm

Package 1 Length

26.0 cm

Package 1 Weight

417.0 g
