Tungsten Filament Ruby Infrared Emitters without glare

Ruby IR lamps provide warmth without glare. They are ideal for people heating, as well as animal husbandry and paint drying. They are available as slim or jacketed types.



Tungsten Filament Ruby Infrared Emitters without glare

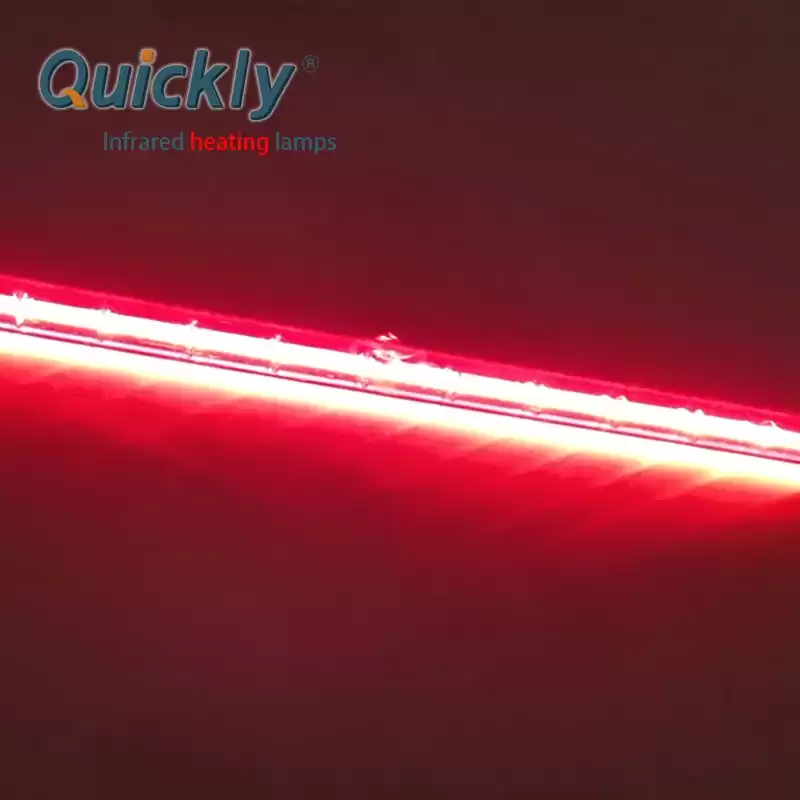

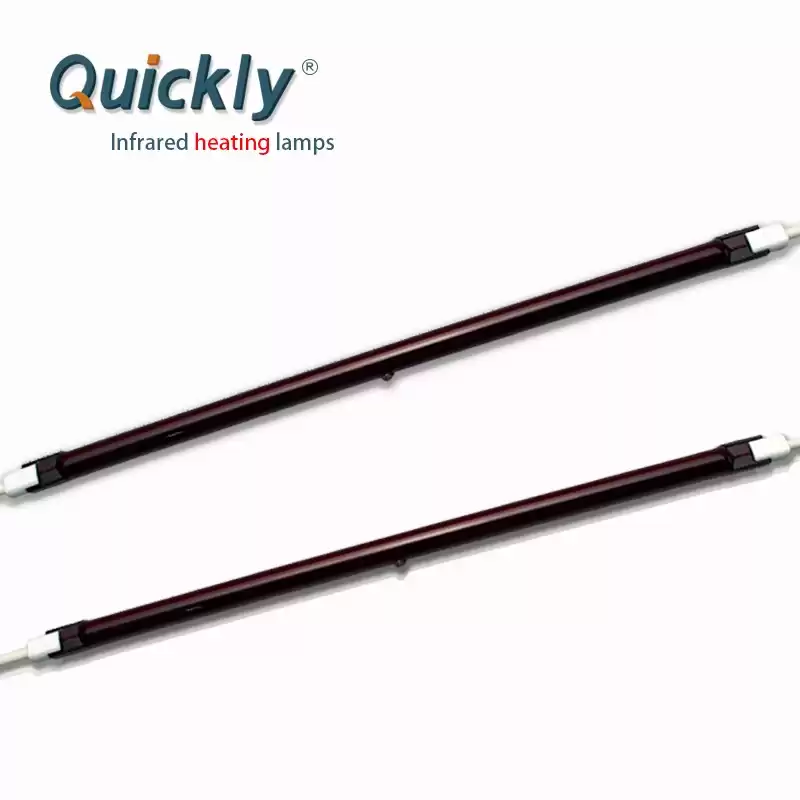

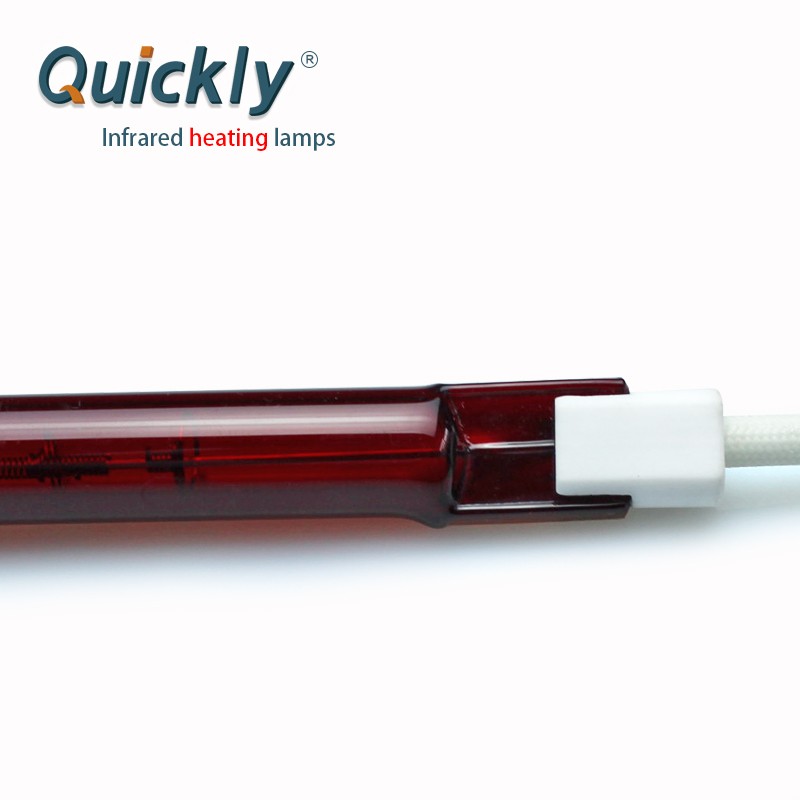

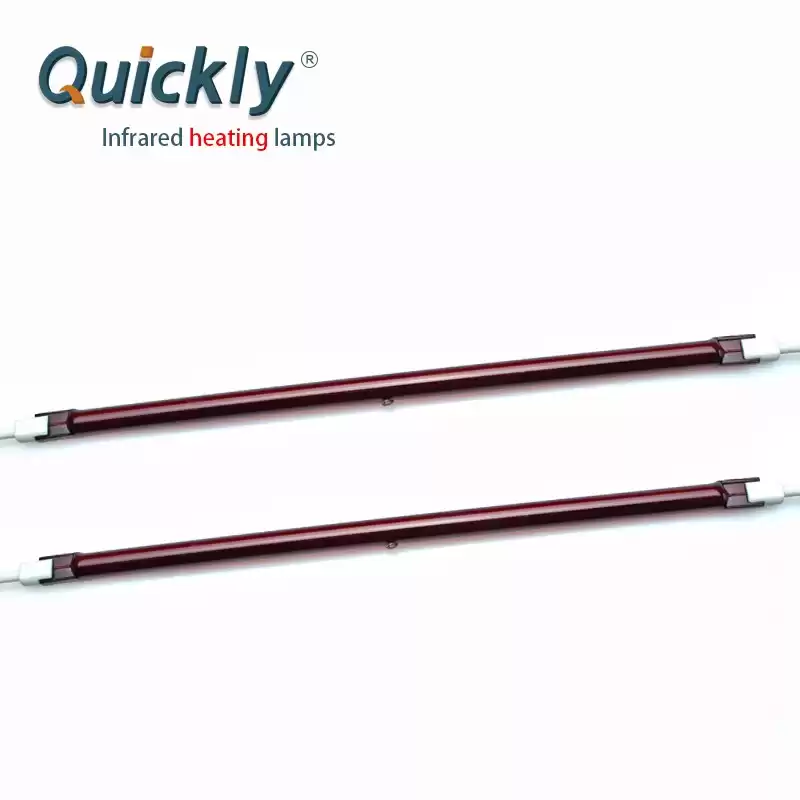

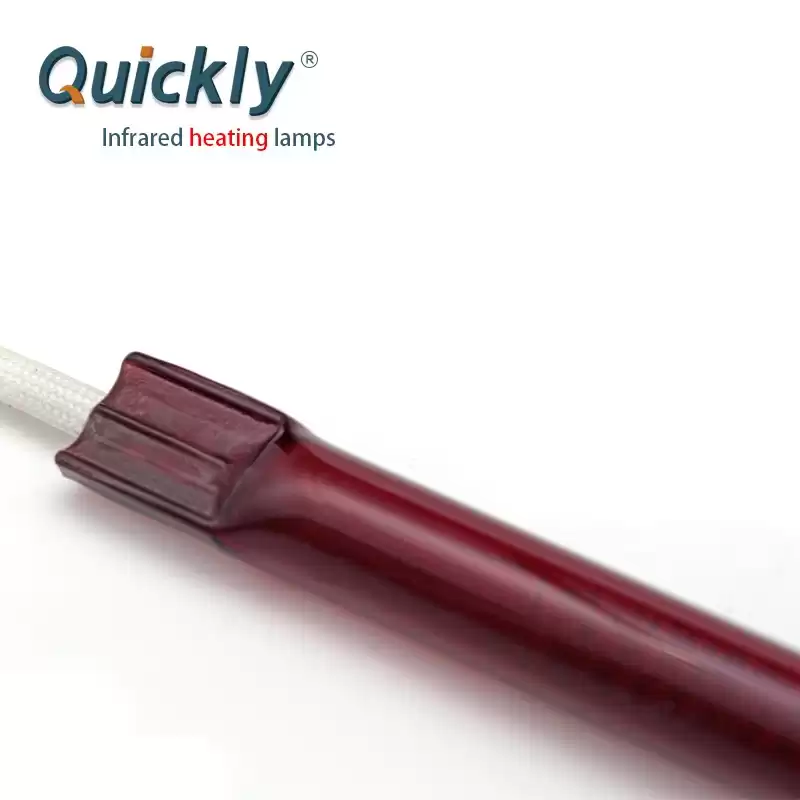

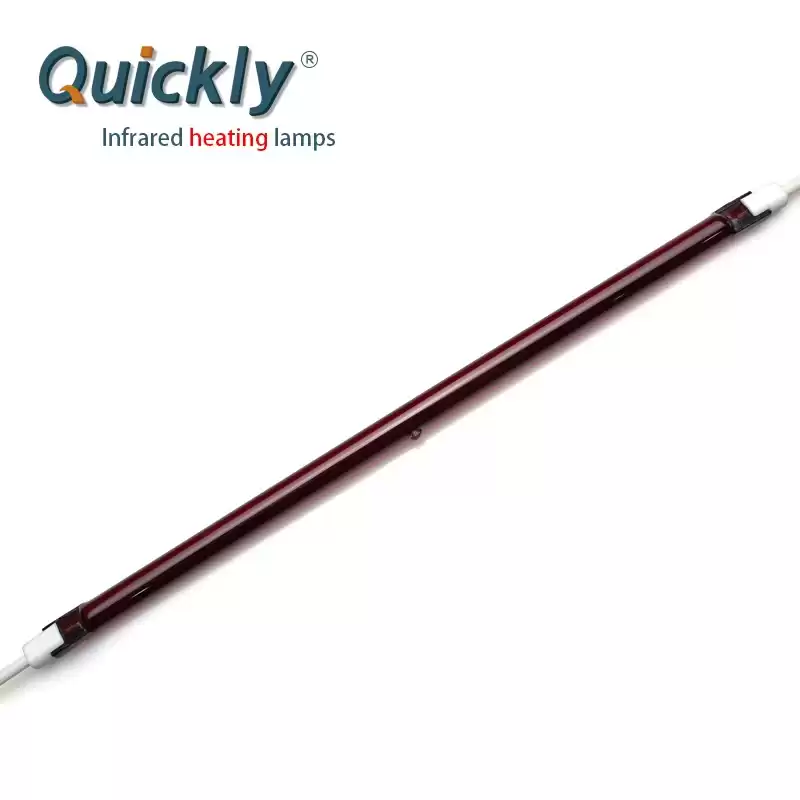

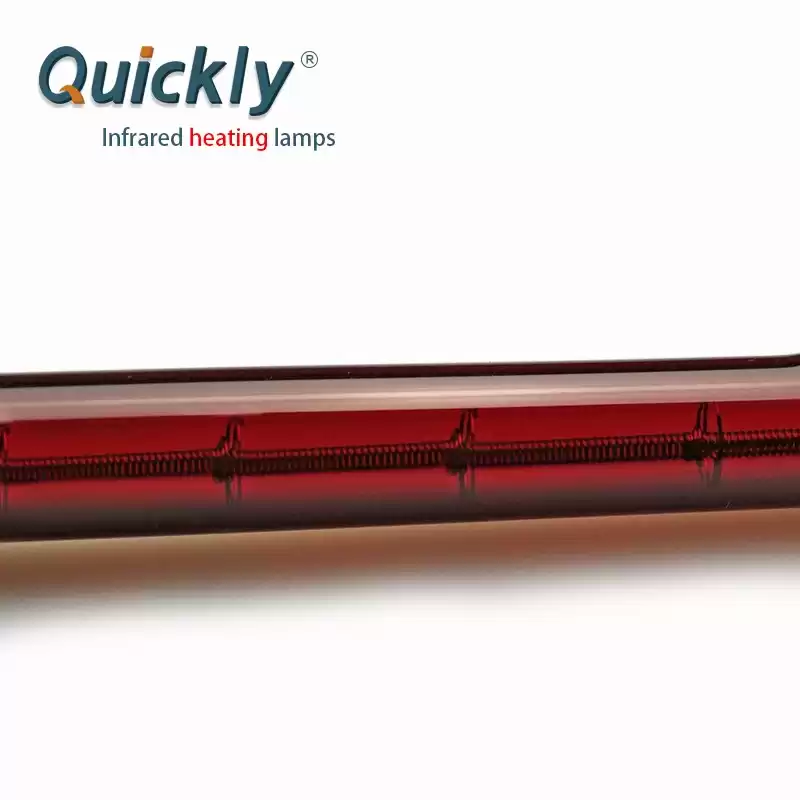

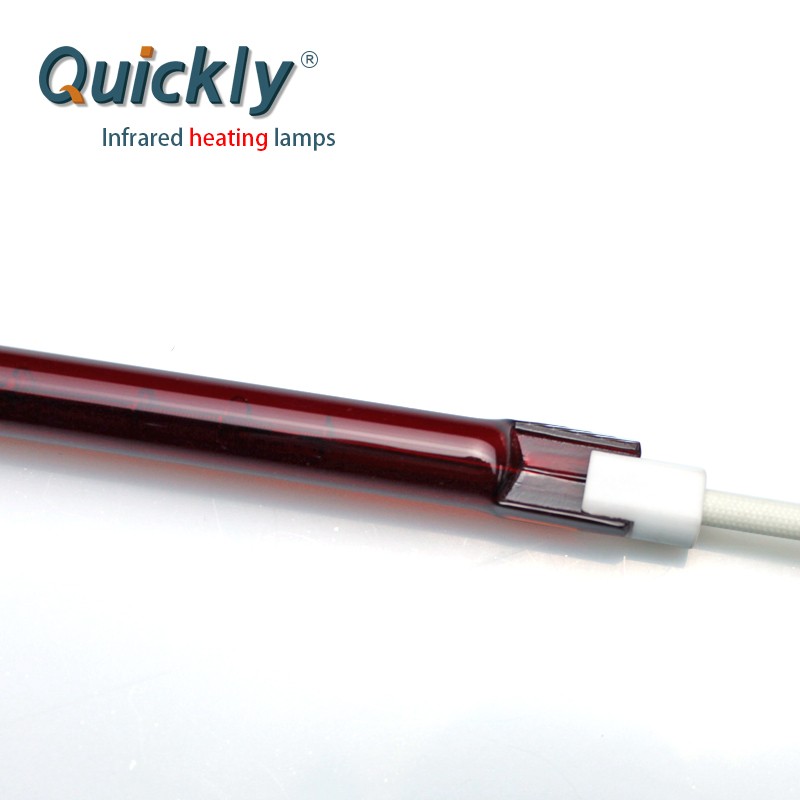

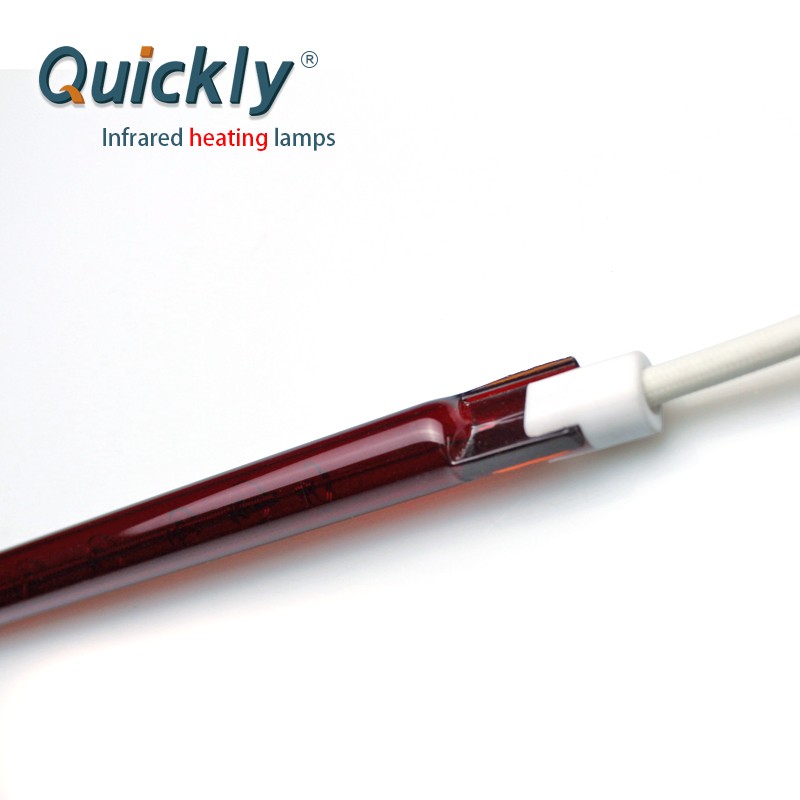

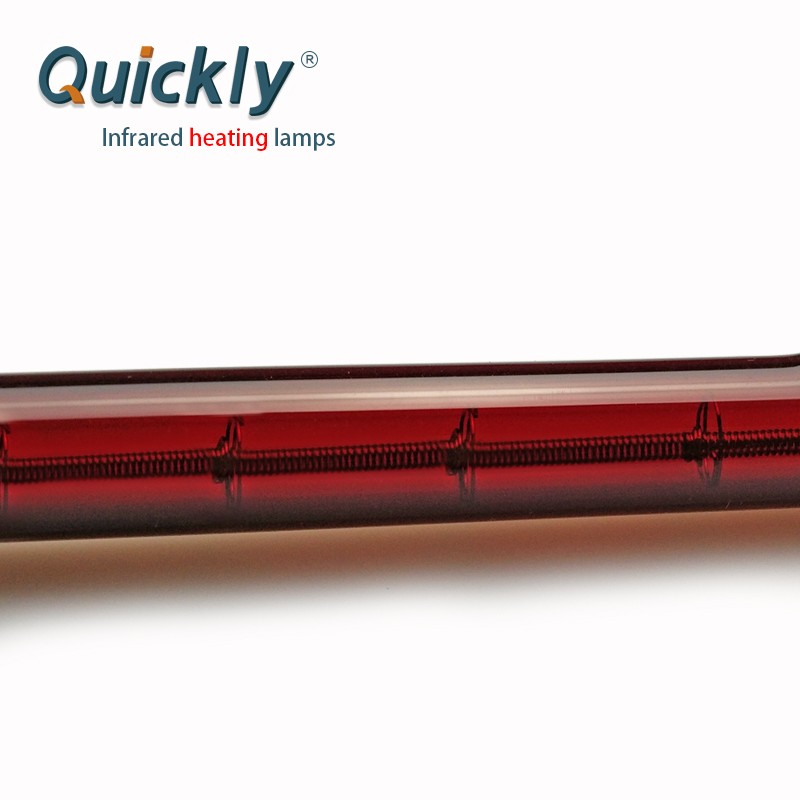

Quickly infrared ruby lamps comprise finely coiled tungsten filament surrounded directly by a 10mm diameter Ruby quartz tube. Thanks to the narrower diameter (10mm) than that of the classical Ruby sleeve (20mm) type, the size of your reflector and/or module can be more compactly designed, and the infrared heat is more efficiently transferred, whilst reducing visible glare. With no coating on the surface of the glass tube, this lamp brings you no peeling trouble to realize unchangeable low glare over a lifetime.



Infrared Ruby Lamp gives benefits of:

  • Low glare stabilization (No peeling trouble): thanks to the technology without surface coating, low glare can steadily maintain over lifetime. Long life: 5000h on average
  • High speed: within a second to switch on.
  • High efficiency: more than 85% heat efficiency of full power
  • High power density: up to 74 W / cm
  • High controllability: neither ballast nor special circuits are necessary for basic usage.
  • No air draughts: because of radiation (similar to solar energy)
  • Clean and odorless: no risk of contamination over environment or target object to be heated.
  • Extensive assortment: many types of voltage, wattage, length, base, wire-harnesses and universal burning position are available.
  • Flexible: special lamp designing service on demand is available.

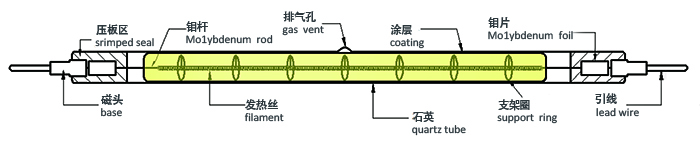

Construction Of single tube short wave IR heating lamps





Application

Paint drying in the body shop

Breeding animals

Coil coating

Outdoor and indoor space heating

And various kinds of industrial heating processes.

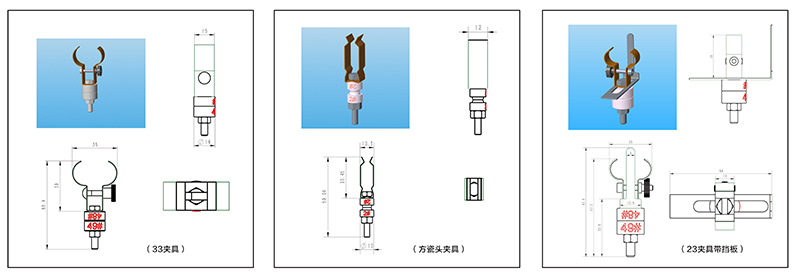

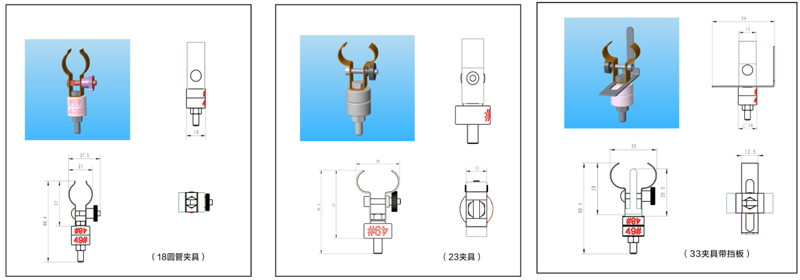

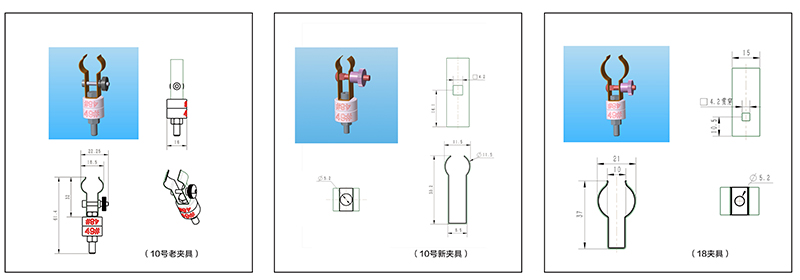

We also provide mounting clamps for lamps installing



Why QUICKLY ?

  1. The materials used for our lamps are at good quality approval UL testing

  2. As a manufacturer of infrared lamps over 10 years history, and we have experienced workers, half of them have worked for us over 5 years

  3. We are factory, so we can control the delivery date, material, quality directly
  4. For any exclusive-human damage within warranty time, we will delivery the replacements within 3-5 work days once confirming

  5. Safe package to protect lamps from being broken during shipping

  6. we will provide you the lamp’s holder free of charge ( 2 units clamps for 1 piece lamp)

  7. Various Payment methods like wire transfer, paypal, western union

  8. Shipping ways provided including DHL, Fedex, TNT, UPS, air, sea



FAQ

  1. how to place the order?
    Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
    quotation,after payment,production will be started, after finished, they will be shipped to your side.

  2. Why Quartz Glass as the one main of material?
    The choice of quartz glass is not a coincidence: this extraordinary material is totally transparent at IR radiation, can withstand constant
    working temperatures of more than 1000°C and it is resistant to chemical corrosion.

  3. could you supply clamps for lamp installing ?
    Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.

  4. Have an unusual design?
    Send us a drawing, sketch, or sample and we'll be happy to quote it.
    We specialize in small runs and custom designs, but can be highly competitive on large orders as well.

  5. How does your factory do quality control
    " quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gained CE, ROHS, ISO9001.
