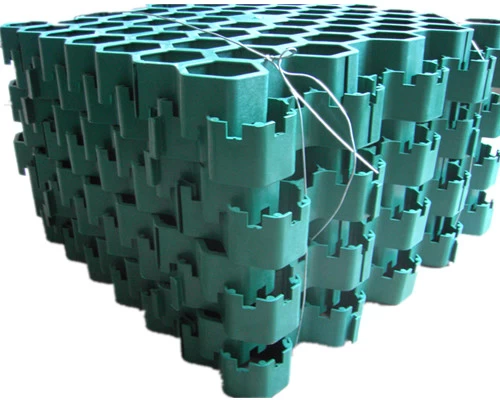

Turf Plastic Grid Pavers Driveway

Plastic Grid Pavers are widely used in parking lot, fire exit, fire climbing surface, pavement etc. Since it can protect the grass, it is also known as the green grass protection mat.


  • Press Strength180ton/sqm
  • Total Volume0.05CBM/sqm
  • Size465x535x50mm
  • ColorGreen
  • MaterialHDPE

Turf Plastic Grid Pavers Driveway Specification:

 Item Code  MZ-450A18
 Material  HDPE
 Size(L x W x H)  465x535x50mm
 Color  Green
 Compressive Strength  180ton/sqm
 Working Temperature  Dimensionally stable for -40℃ to 90℃
 Weight  4.6kg/sqm
 Afforests Rate  95%~100%
 Porosity  90%
 Anti HCL  According to GB4218-1984, 30%x24h, no visible change
 Anti NaOH  According to GB4218-1984, 40%x24h, no visible change
 Thermal Aging  According to GB/T 7141-1999, 70ICx24h, no visible change
 Anti UV  According to GB/T18830, UPE>30 T(UVA)AV<5%, qualified
 Packing  Bundle or Carton (or at your request), 8pcs=1bundle
 MOQ  100sqm
 Loading Capacity  1x20ft container=700sqm; 1x40ft container=1420sqm; 1x40HC Container=1628sqm
 Lead Time

 about 10 days for stock item;

 about 20 days for items out of stock.





Plastic Grass Grid Application:

  • Grass driveways and grass shoulder

  • Overflow grass car parking lot

  • Fire truck access paths/ fire lanes

  • Handicap access routes

  • Golf buggy/trolley paths

  • Emergency vehicle access roads through fields

  • Modern factory building

  • Noble living communities

  • Truck maintenance and equipment yards

  • Construction entrance soil stabilization





Feature and Benefits:

  • Manufactured from 100% recycled plastics, eco-friendly grass grids
  • Flag plug type overlap joint, very convenient, arbitrarily adjust expansion joint width to fit temperature change
  • Perfect greening, provides more than 95% grass area
  • High compressive strength and durable, the plastic grass grids is permanent and long lasting
  • Fast and easy to install, maintenance with low cost
  • Permeability drainage performance, high water culvert

  • Anti-UV, resistance to acid and alkali corrosion, anti-wear and pressure
  • Grass grids has an open cell structure allowing unrestricted healthy grass root growth

  • Allows grass grid to grow with easy and binds firmly



Manufactured from 100% recycled HDPE material, Leiyuan Plastic Grid Pavers are an interlocking celluar paving grid system for grass and ground reinforcement applications. Because of its chemically inert and non toxic feature, grass grid allow the drainage of stormwater back into the underground soil. Except for greening, the grass grid is also designed as a sustainable solution for areas of both heavy and light traffic. During installed, the grass grids can be filled with grass or gravel surface and allow full rainwater penetration.


Grass grids provides the pavement strength with the natural beauty of grass, at the same time, it eliminates soil compaction, reduces reflective heat and allowing for all weather accessibility at a very cost effective price.



Grid Pavers Instruction:



Leiyuan Plastic Grass Grid: High Strength, Long Life Service !
