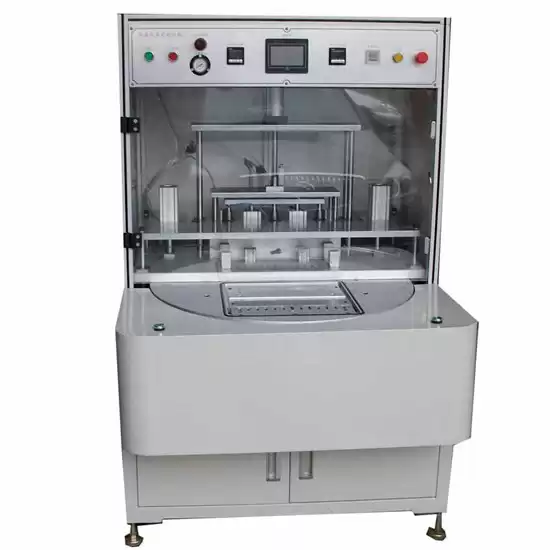

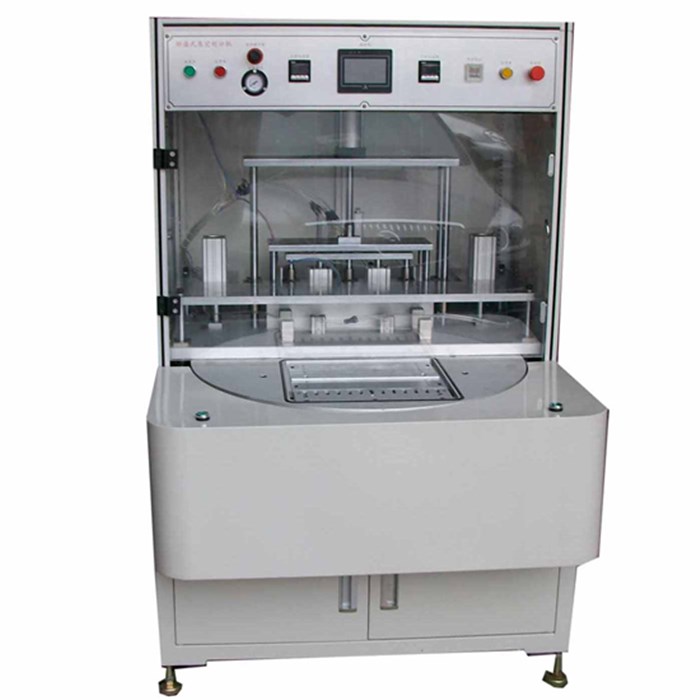

Turntable Type Vacuum Sealing Machine for Lithium ion Pouch Cell Making
Features
1.Suitable for soft packing lithium core top-side heating vacuum sealing
2.The 4 stations turntable structure, cam positioning, precision bias error is less than ± 30
3.To configure a single head pressure regulator
4.Import PLC, touch screen control display, imported thermostat, error of ± 2 °C
5.Fixture locating detection, double-side heating, temperature alarm, screen protection
6.Using the programmable controller PLC practical automatic control, touch screen to realize man-machine dialogue, convenient operation
Technical Parameters
|
Main technical
parameters
|
TMAX-TS001
|
TMAX-TS002
|
TMAX-TS003
|
|
Applicable battery size(L*W*H)
|
≤180*120*8mm
|
≤250*210*10mm
|
≤320*210*10mm
|
|
Sealing head length
|
200mm
|
280mm
|
330mm
|
|
Sealing stamp width
|
2-5mm
|
2-10mm
|
2-10mm
|
|
Parallelism of the sealing head
|
±0.01mm
|
±0.01mm
|
±0.01mm
|
|
Production capacity
|
200-600pcs/H
|
150-500pcs/H
|
100-450pcs/H
|
|
Source voltage
|
AC 220V
|
AC 220V
|
AC 220V
|
|
power
|
1.2KW
|
1.8KW
|
1.8KW
|
|
Size(L*W*H)
|
640*640*1450mm
|
900*800*1600mm
|
900*1000*1600mm
|
|
Weight
|
300kg
|
450kg
|
550kg
|
|
Air supply
|
0.6-0.7Mpa 10L/S
|
0.6-0.7Mpa 10L/S
|
0.6-0.7Mpa 10L/S
|
|
Vacuum supply
|
-0.095Mpa 20L/S
|
-0.095Mpa 20L/S
|
-0.095Mpa 20L/S
|
