| Parameter |
Specification |
| Diameter Range |
2m – 12m (customizable) |
| Max Speed |
2 RPM (adjustable) |
| Load Capacity |
250 kg/m² |
| Precision |
±0.5mm positioning accuracy |
| Control |
Programmable via timeline/keyframe |
| Speed Control |
0.01–2 RPM (smooth acceleration profiles) |

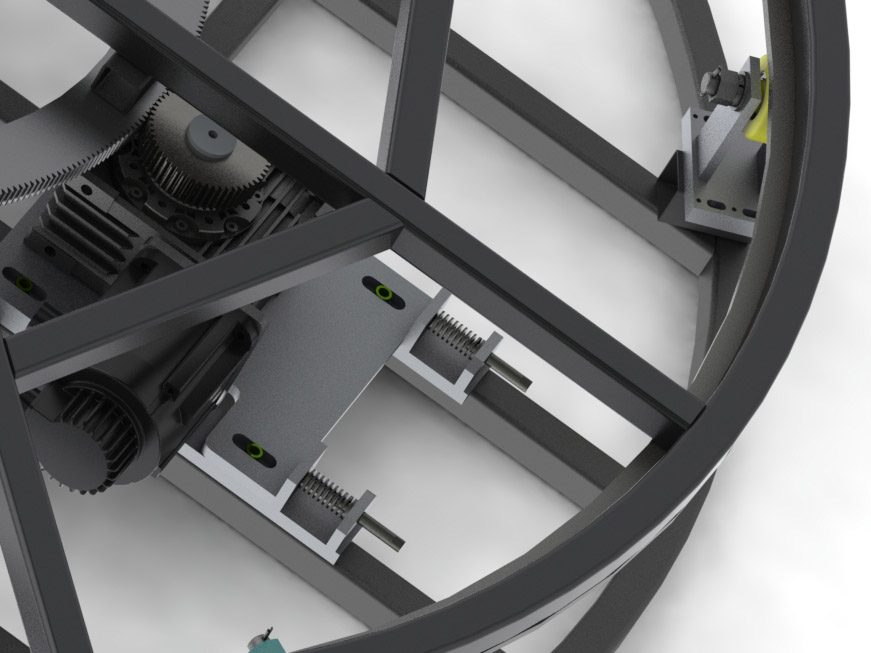

Precision Gear-Rack Drive System
Engineered for Absolute Positioning Accuracy
Component Specifications:
| Part |
Specification |
Benefit |
| Helical Gears |
20CrMnTi alloy, HRC58-62 hardness |
50% quieter than spur gears |
| Ground Racks |
DIN 6 standard, 0.05mm/m accuracy |
Eliminates cumulative error |
| Preload Couplings |
Zero-backlash (<0.01mm) |
Ensures immediate response |
