twin tube tungsten halogen short wave infrared heater lamps

Twin tube IR emitter is made up of 8-shape high-purity clear quartz twin tube, each tube has Heating Coil of Tungsten material which runs in U shape in the tube which is filled with halogen gas.Power Density up to 150KW/m2 is achieved. Heating up and cooling down time is approximately one second. There are two standard sizes 11 mm x 23 mm and 15 mm x 33 mm in cross section for twin tube short wave IR radiators, and the maximum length available is 4000 mm



Twin Tube Tungsten Halogen Short Wave Infrared Heater Lamps 380V 4000W



Product description

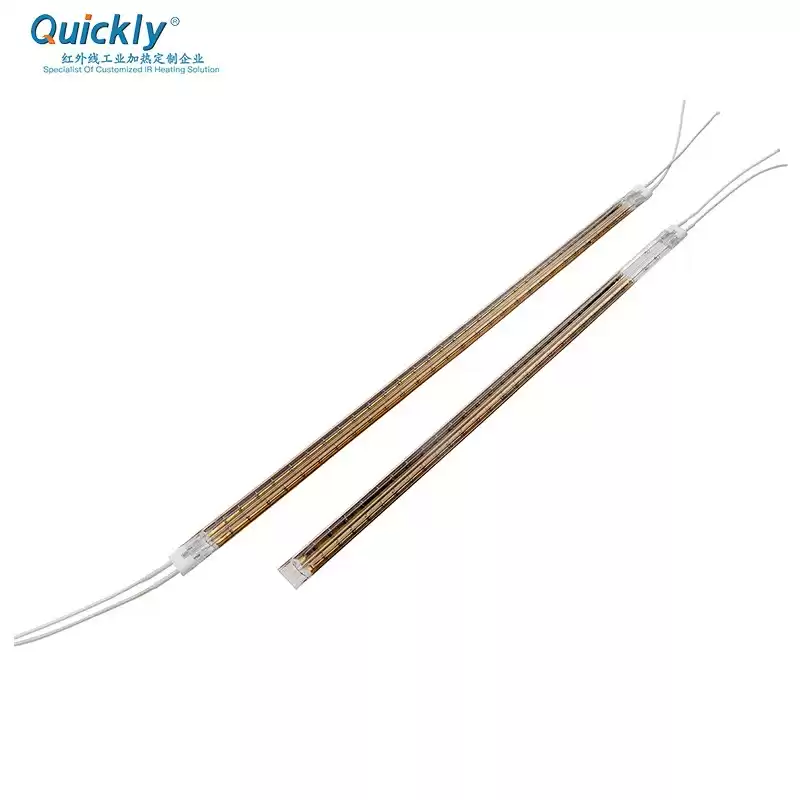

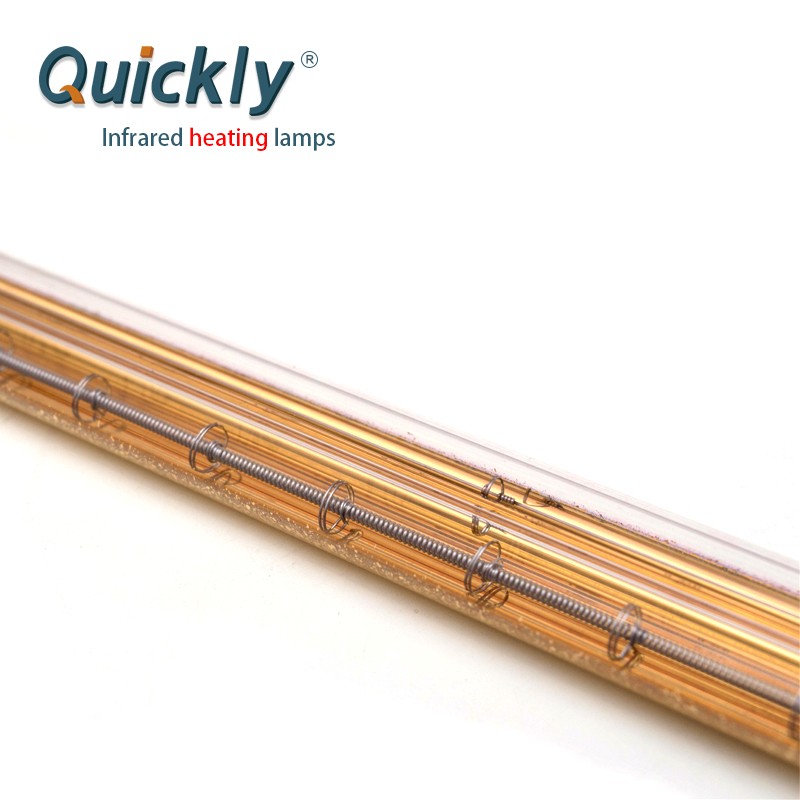

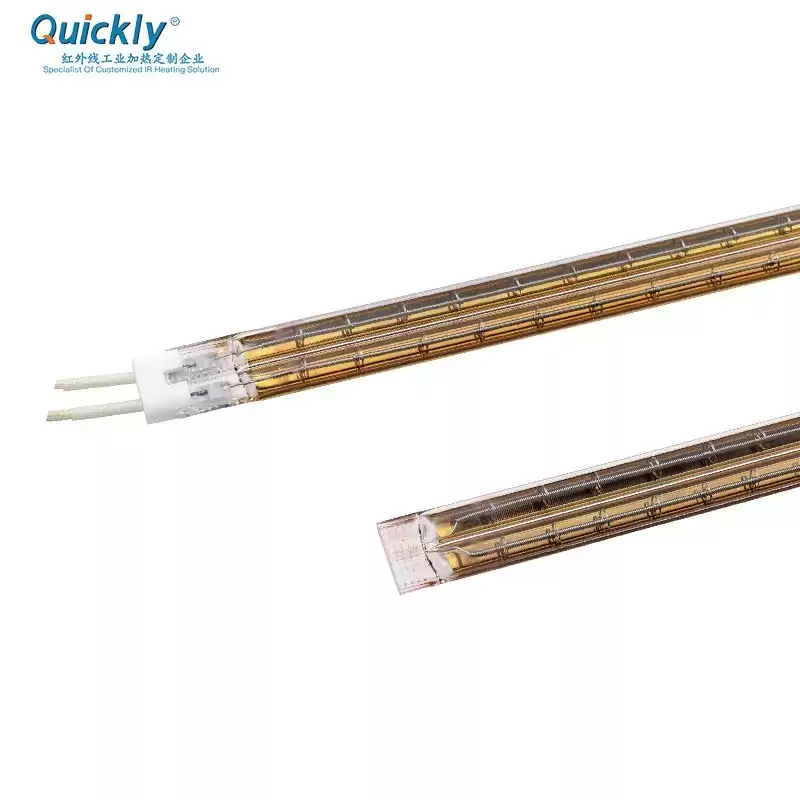

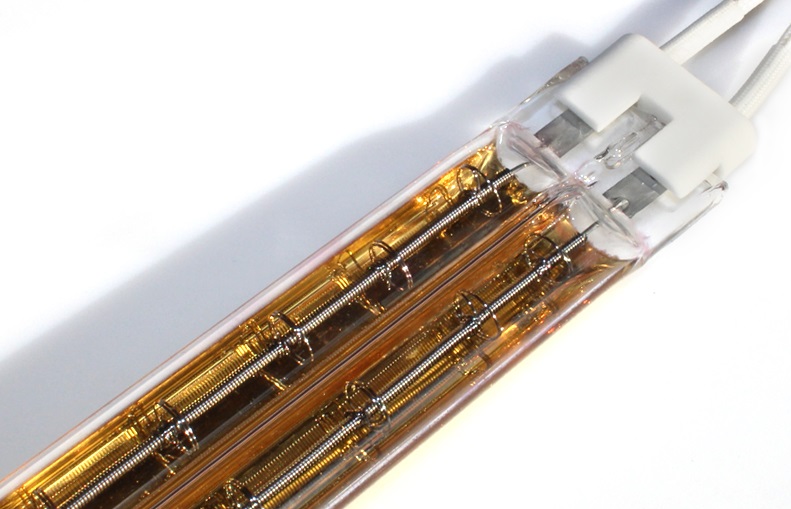

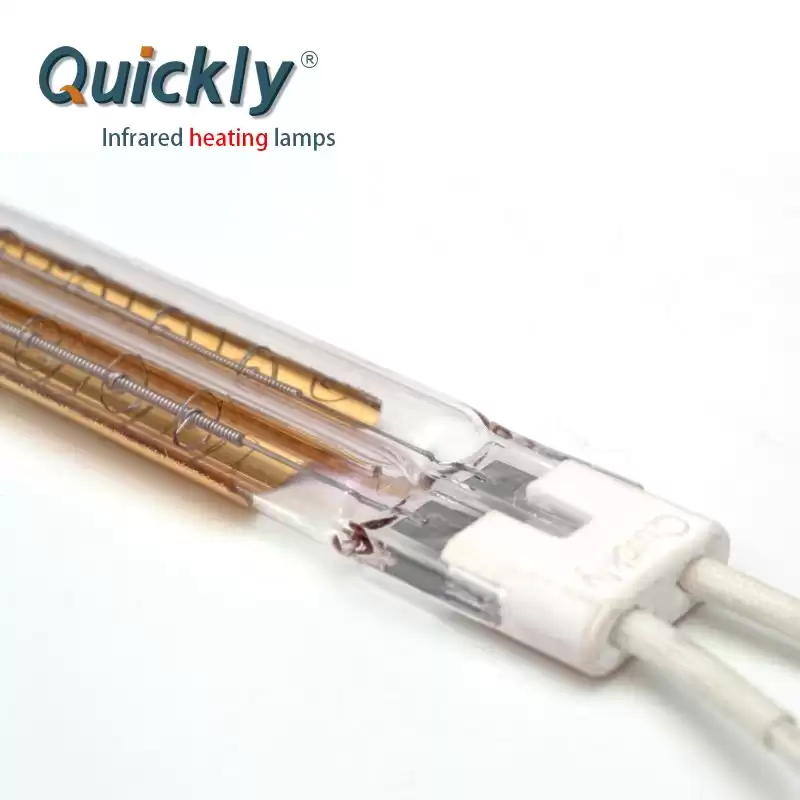

Short wave twin tube heater IR lamp is made up of 8-shape high-purity clear quartz twin tube, each tube has Heating Coil of Tungsten material which runs in U shape in the tube which is filled with halogen gas.
Power Density up to 150KW/m2 is achieved. Heating up and cooling down time is approximately one second.

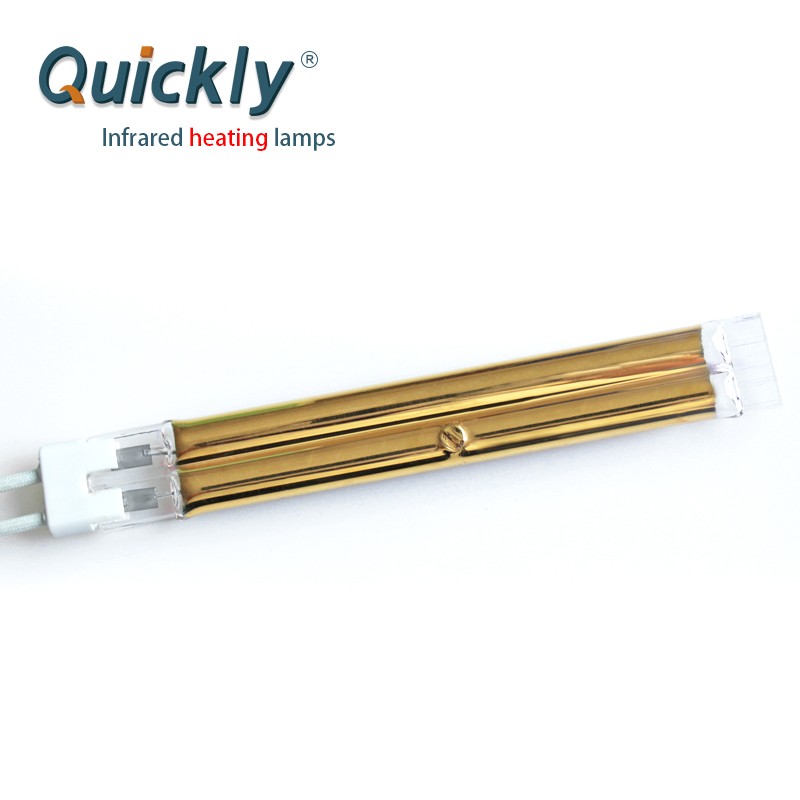

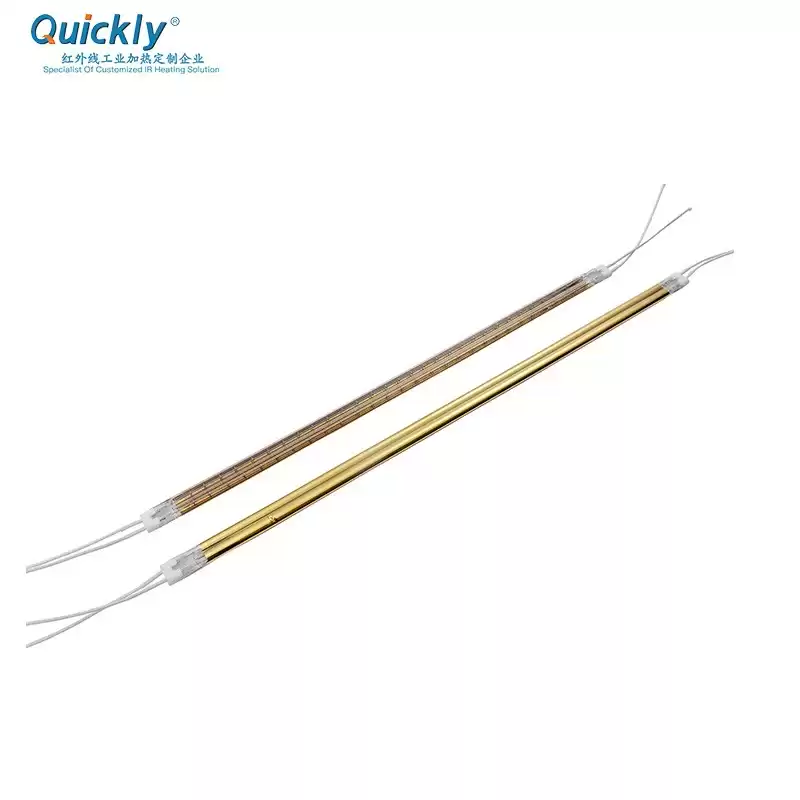

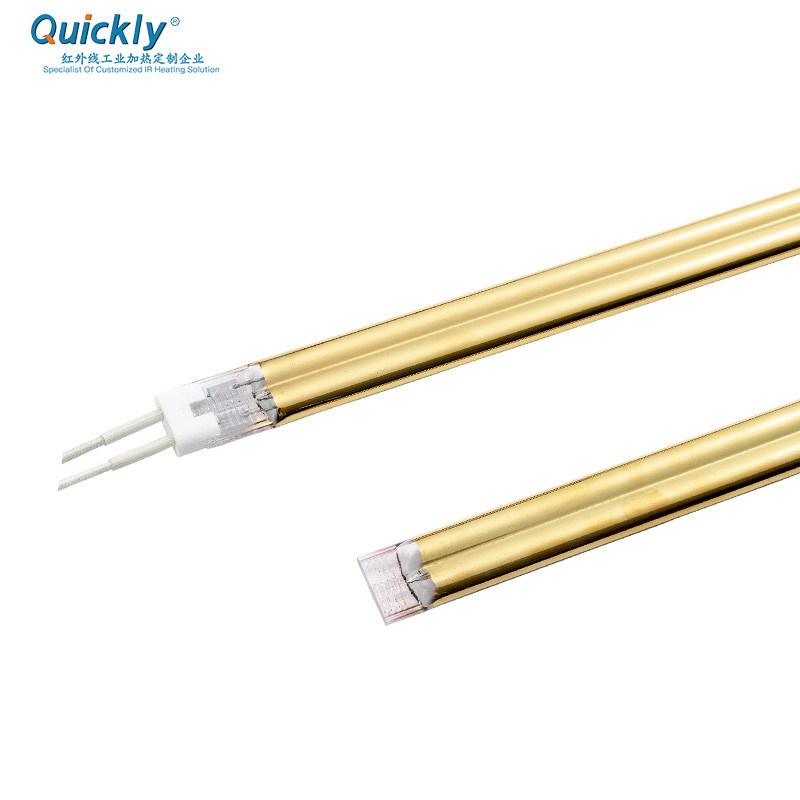

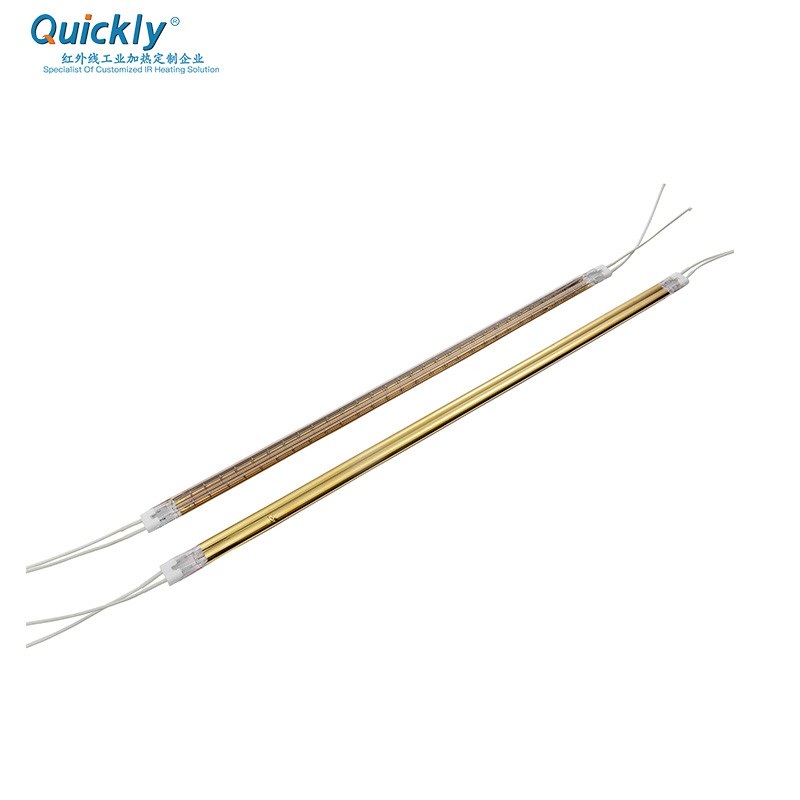

These twin tube IR emitters are available with gold or white reflector and without reflector

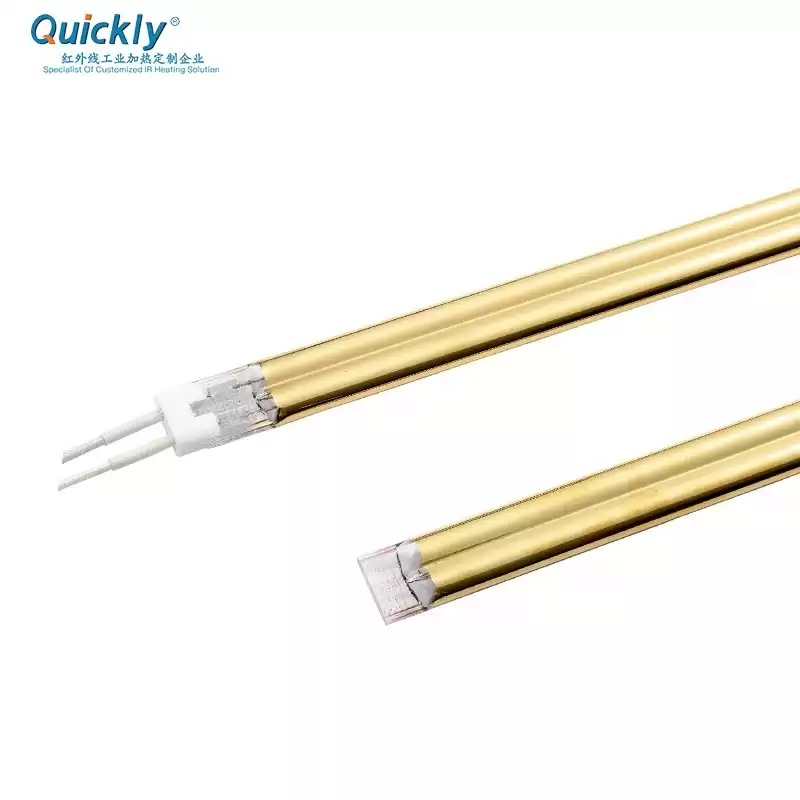

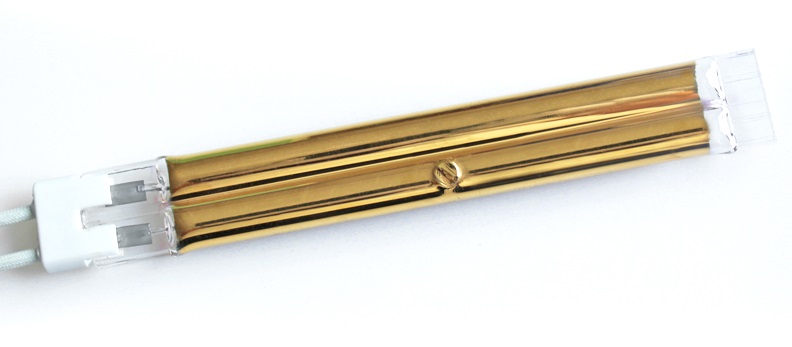

Reflector is in the form of gold coating on outer rear side of the tube
Due to reflector heat loss from backside is prevented and thus power saving is achieved
This also results in making surrounding work area cooler
This also increases the efficiency and directionality of the heater
There are two standard sizes 11 mm x 23 mm and 15 mm x 33 mm in cross section. Maximum length available is 4000 mm

Quick Details

Tube Diameter 18*9mm 23*11mm 33*15mm
Overall Length 80-1500mm 80-3500mm 80-4000mm
Heated Length 30-1450mm 30-3450mm 30-3950mm
Tube Thickness 1.2mm 1.5mm 2.2mm
Max Power 150w/cm 180w/cm 200w/cm

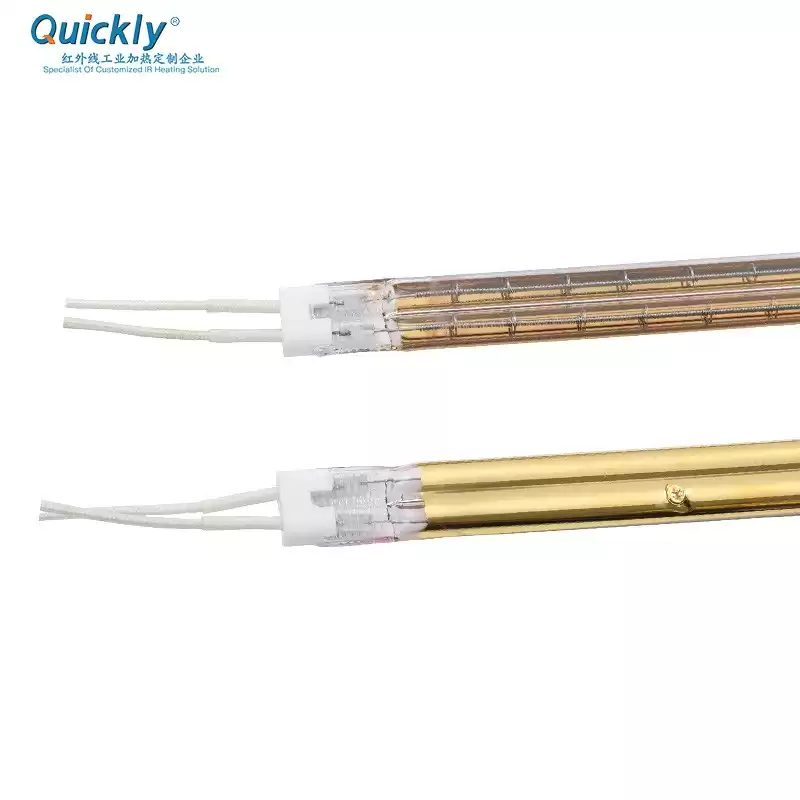

Connection Type lead wire at one or two sides
Tube Coating transparent, gold coating, white coating
Voltage 80-750v
Installing Position Horizontal/Vertical
Average working life 5000 hours
Color temperature 2400~2500 K
IR wavelength 0.75-1.4um
heating filament tungsten
Response time 1 seconds
Cable Type 1.silicone rubber cable 2.teflon lead wire 3.naked nickel wire



Filament contstruction of twin tube heaters

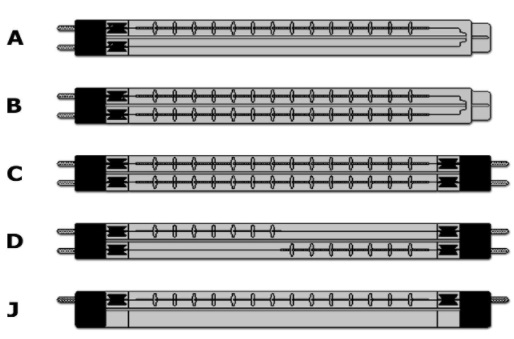

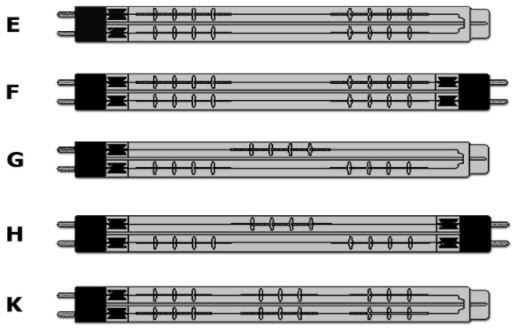

Twin tube IR emitters with different filament configuration can be made single side cable conneciton or two sides, and different heating channels. this allows an extraordinary flexibility both in term of heated area modularity and cables position. In the picture below there are some of the most common filament configuration.



Technical specificatiosn of some twin tube infrared emitters

No. type dia OAL HL CL1 CL1 W V COATING LEAD L HCHANNEL CABLE Burning
1 MW 33*15 740 670 35 35 1800 415 GOLD 500MM TWO ONE H
2 SW 23*11 740 670 35 35 3300 415 GOLD 500MM TWO ONE H
3 FMW 33*15 820 740 40 40 4200 415 GOLD 500MM TWO ONE H
4 MW 33*15 1100 1020 40 40 2500 415 GOLD 1000MM TWO ONE H
5 SW 23*11 740 670 35 35 3300 415 GOLD 300MM TWO ONE H
6 MW 33*15 800 720 40 40 1900 415 GOLD 500MM TWO ONE H
7 SW 23*11 800 720 40 40 3500 415 GOLD 500MM TWO ONE H
8 SW 33*15 820 740 40 40 4200 480 GOLD 500MM TWO ONE H
9 SW 33*15 1160 1060 50 50 6200 400 GOLD 500MM TWO ONE H
10 MW 33*15 1125 1020     6000 480 GOLD 500MM TWO ONE H
11 SW 23*11 1100 1020     3500 415 GOLD 500MM ONE ONE H
12 SW 33*15 1260 1060+90+90 60 40 5300/450/450 342/58 GOLD 500MM TWO ONE H

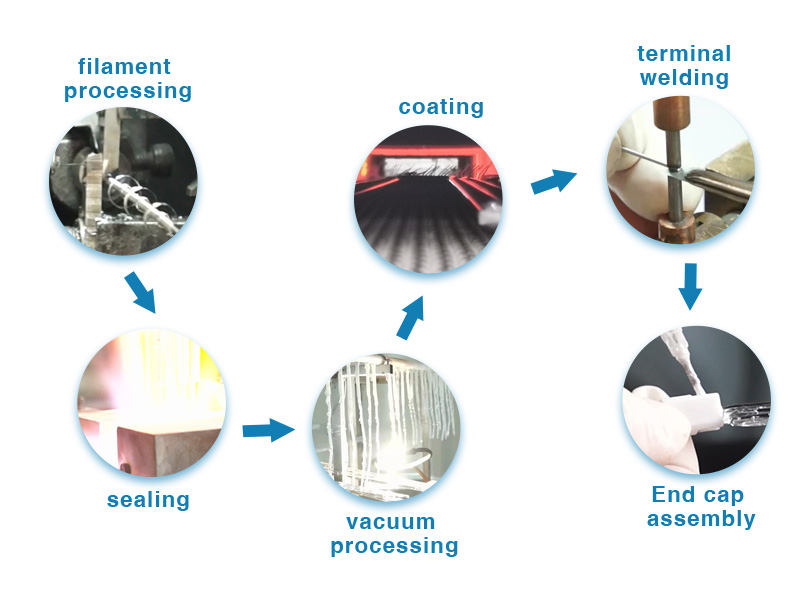

The main processing steps of vaccum infrared emitters

Safe package to protect lamps from being broken during shipping



FAQ

1. how to place the order?
Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
quotation,after payment,production will be started, after finished, they will be shipped to your side.

2. could you supply clamps for lamp installing ?
Yes, we will provide mounting clamps/clips for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.

3. Have an unusual design?
Send us a drawing, sketch, or sample and we'll be happy to quote it.
We specialize in small runs and custom designs, but can be highly competitive on large orders as well.

4.How does your factory do quality control
" quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gained CE, ROHS, ISO9001.

5. Why coating on quartz tube surface

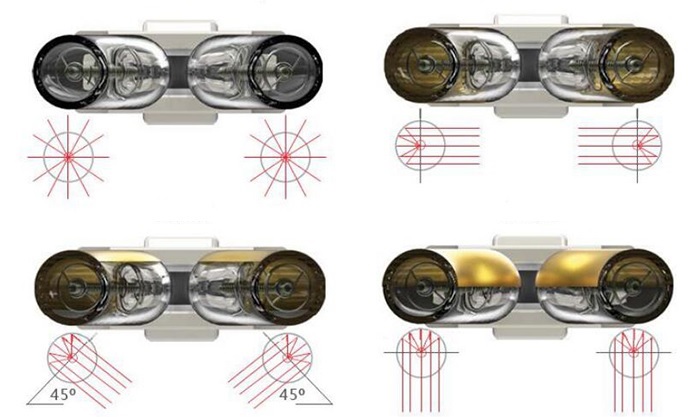

QUICKLY offers infrared emitters which coated with gold and white reflector , they can emit heat directly to the product. A gold or white coating on the infrared emitters reflects the infrared radiation. Consequently the infrared radiation impinging on the product is virtually doubled, increasing the effectiveness of the heat output.

The reflection efficiency of gold coating is higher than white coating, while for the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as reflector because the temperature resistance is up to 1000°C .

In addition to 180° (half-tube) coating, we also manufacture 270° coating or other customer specified degrees.


Product Tags twin tube infrared emitters          short wave IR heaters          infrared heating lamp elements          halogen short wave infrared heater lamps
