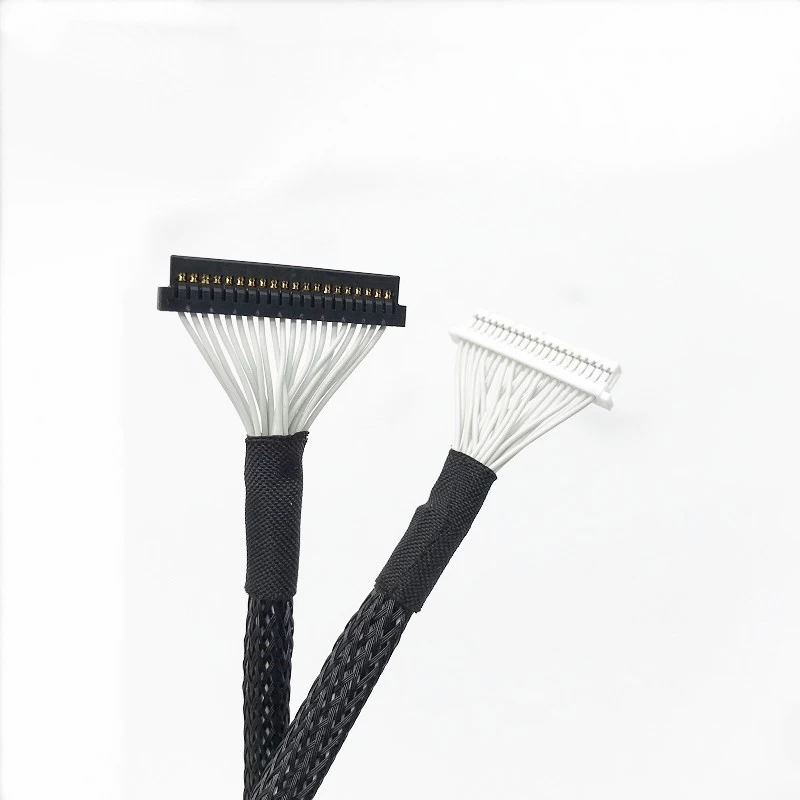

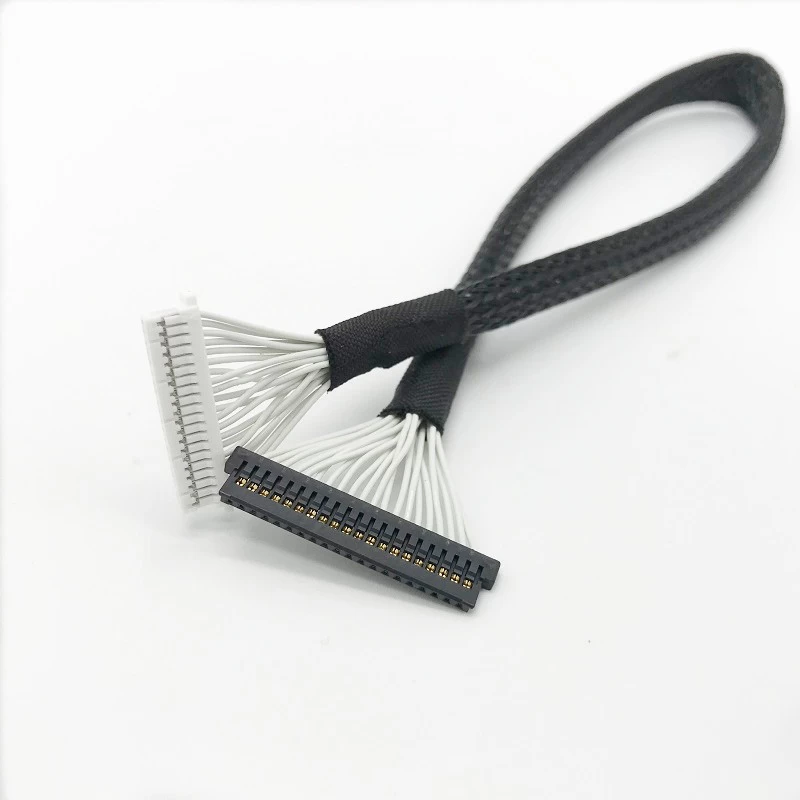

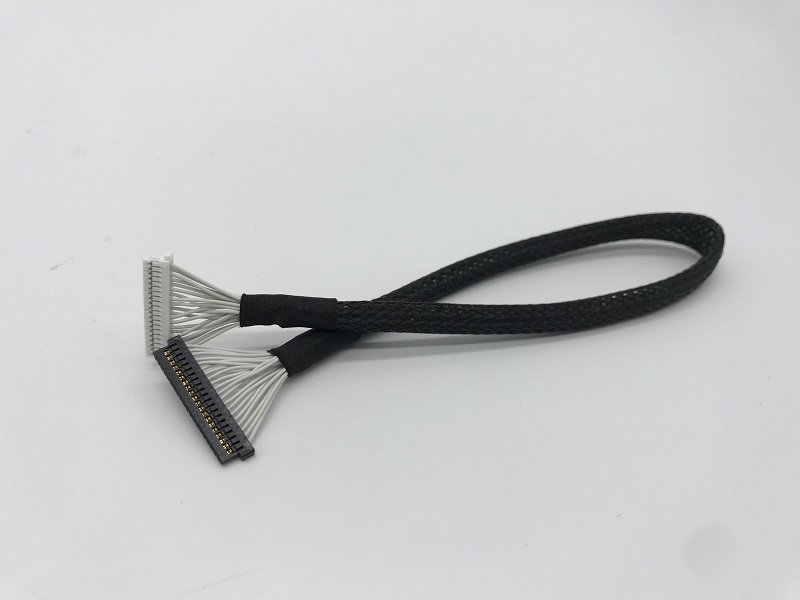

Twisted Pair Wire Harness FI-S20S Connector

Custom wire cable assembly LVDS series wire harness, find custom LVDS wire harness manufacturer for LCD TV monitor, small connector wire assembly from Xiamen KEHAN Electronics Co.,Ltd

Facebook Twitter Pinterest LinkedIn 分享

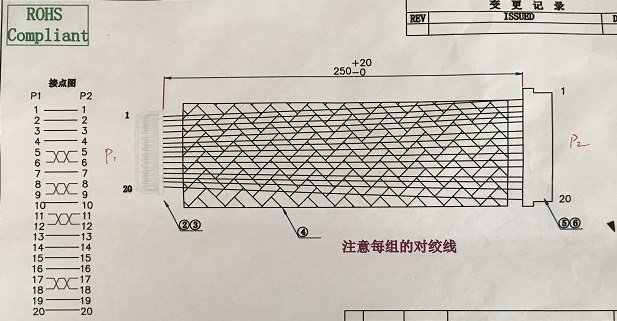

Product Name  Custom made wire harness LVDS series
Wire  UL1332 #30 AWG twisted pair wire
Color  White or optional
Length  265 mm or optional
Connector 1  FI-S20S
Connector 2  SHR-20V-S-B
Other  Φ6.0*20MM Sleeve Tubing
RoHS  Compliant  Yes
Test Condition  1. 100% short, open circuit test
2. insulation resistance 50KΩ, Conduction Resistance 5Ω
