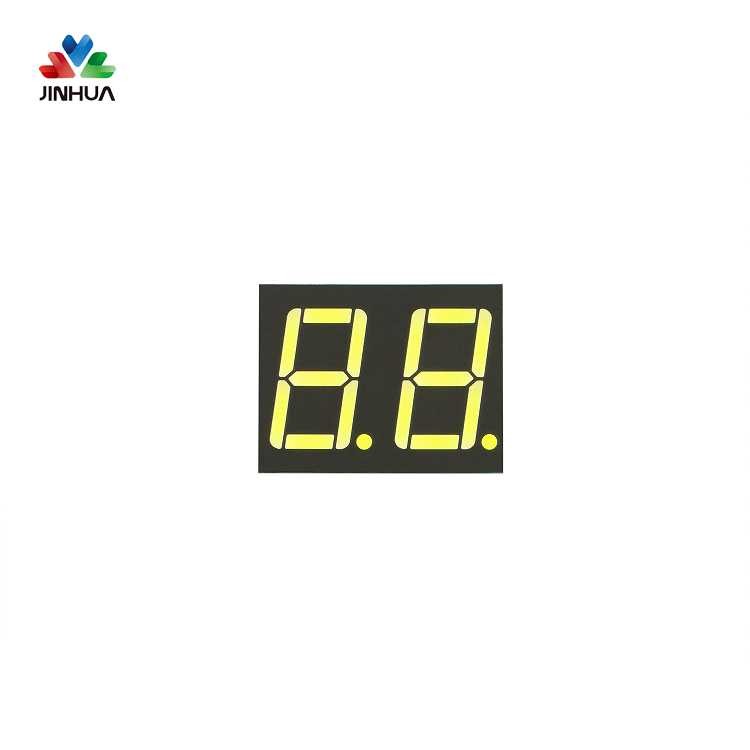

Two Digit 0.56" SMD LED 3014 Seven Segment Display China Supplier
It is a SMD LED 3014 7 segment LED product which has two digits to display any number at any time by programming. Normally, the numbers of LED chips mounted on the PCB board is determined by the size of the projector. The large the projector is and the more LED chips it requires.
The brightness of LED display will also be influenced by the height of the projector. Generally speaking, 10 mm height will be required for the projector in case of pointolite.
Small Size Seven Segment LED
Product Parameters
| Digit height |
0.56 inch (0.28 inch ~ 4 inch available) |
| Dimensions |
25 x 19 x 8mm |
| Digit quantity |
2 Digits |
| Available Emitting Color |
Red/Yellow Green/Yellow/Amber/Blue/White/Pure Green |
| Surface Color |
Black/Gray (white epoxy) |
| Epoxy Colors |
Red, Milky, Blue, Green and more |
| Polarity |
Common Anode/Common Cathode |
| Connector |
Pin |
| Operating Temperature |
-20-80°C |
| Requirements On Environmental Protection |
ROHS HSF |

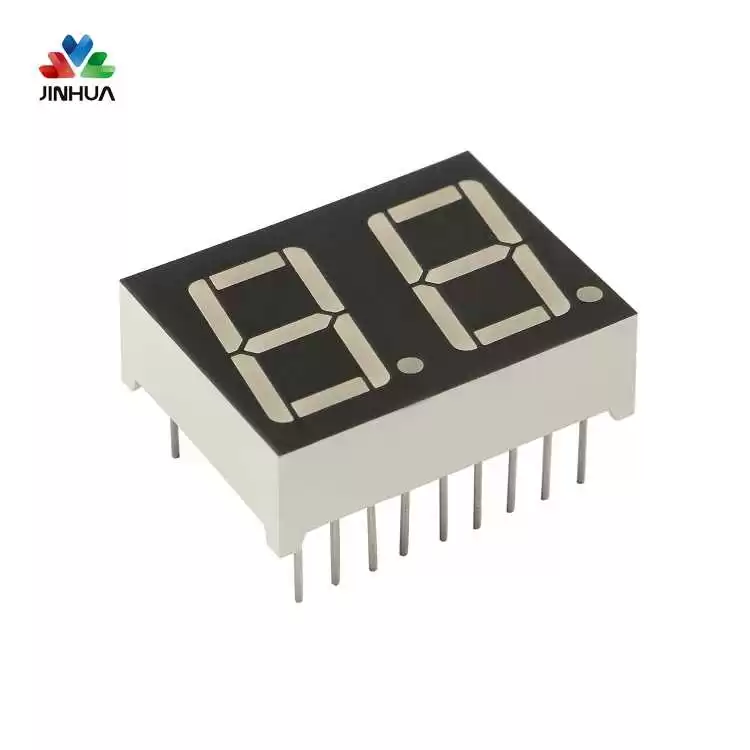

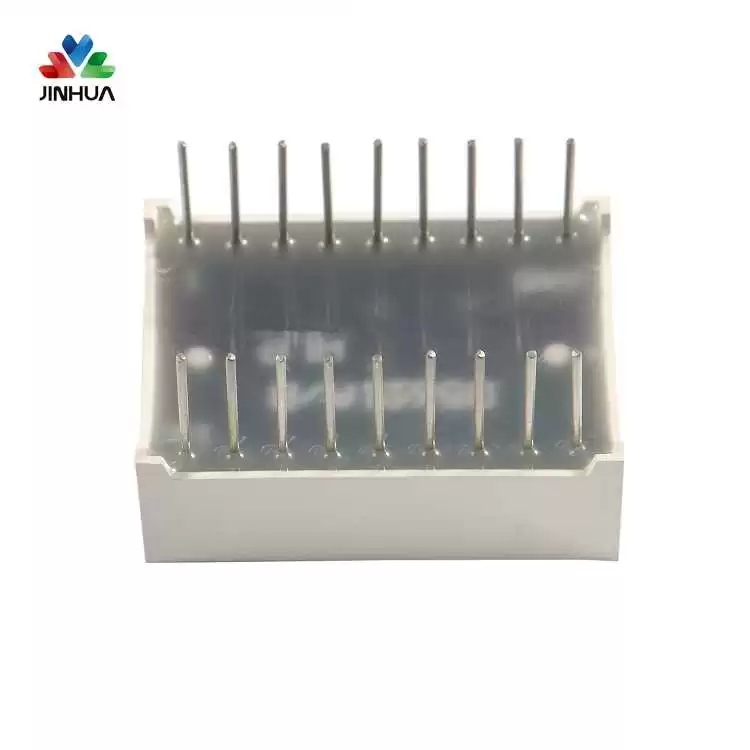

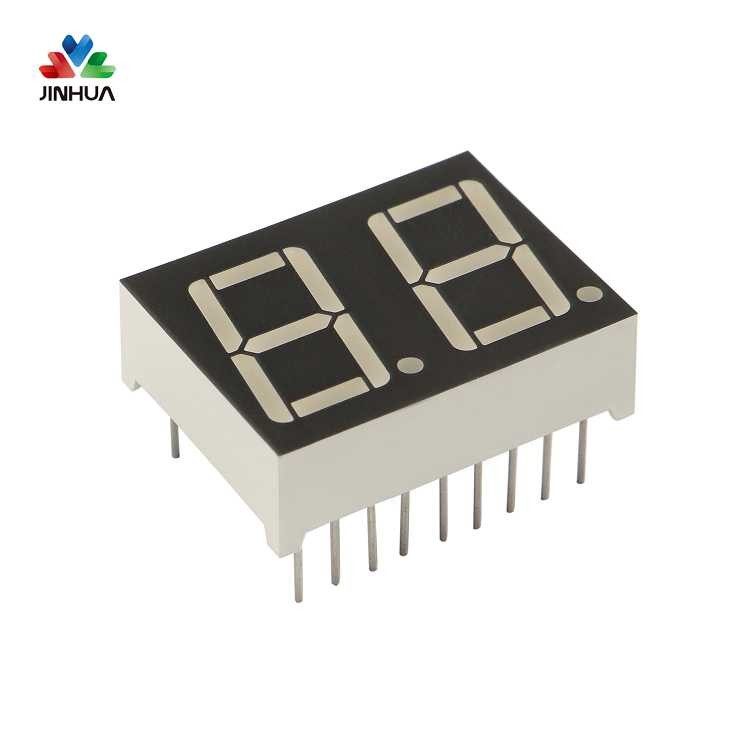

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
Seven Segment LED Display is able to display all kinds of shapes of seven segments by custom solution. Once the drawing is given by clients, we will realize it throughout printed foil and moulded projector. So by customed seven segments, the LED display is extensively applied to many devices such as meter&measuring device, industrial equipment, medical equipment, fiscal products etc.

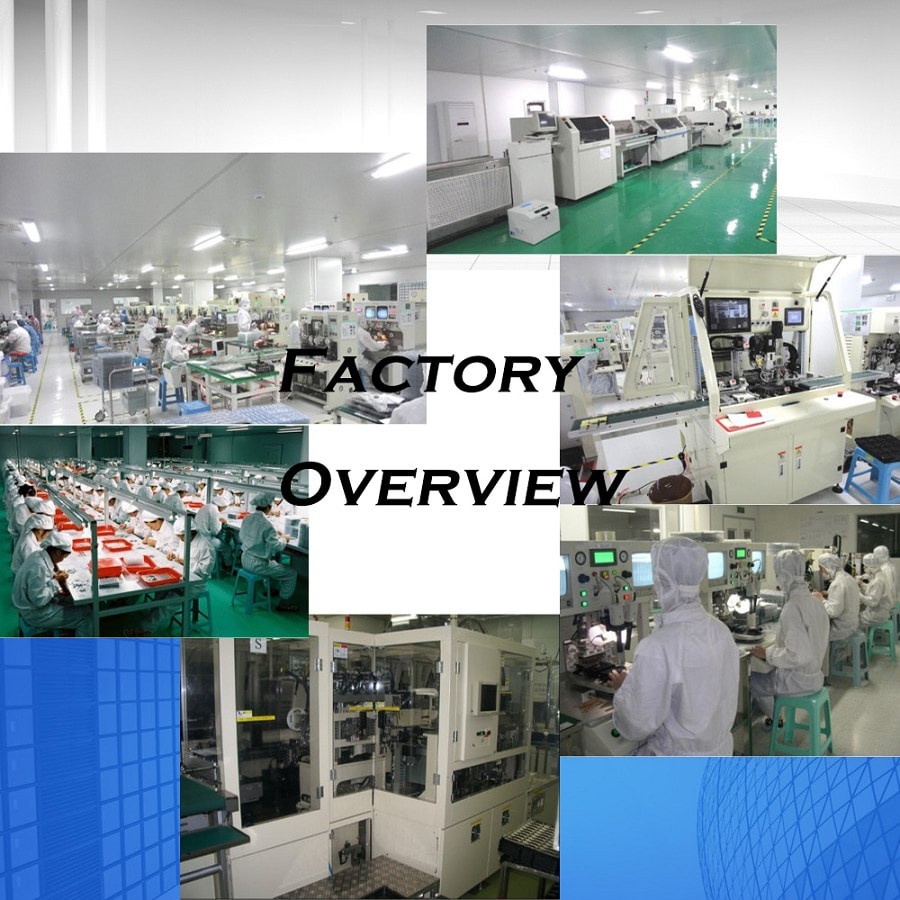

Production Line And Equipment
Company Profile
Why Choose Us
1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.
FAQ
Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
