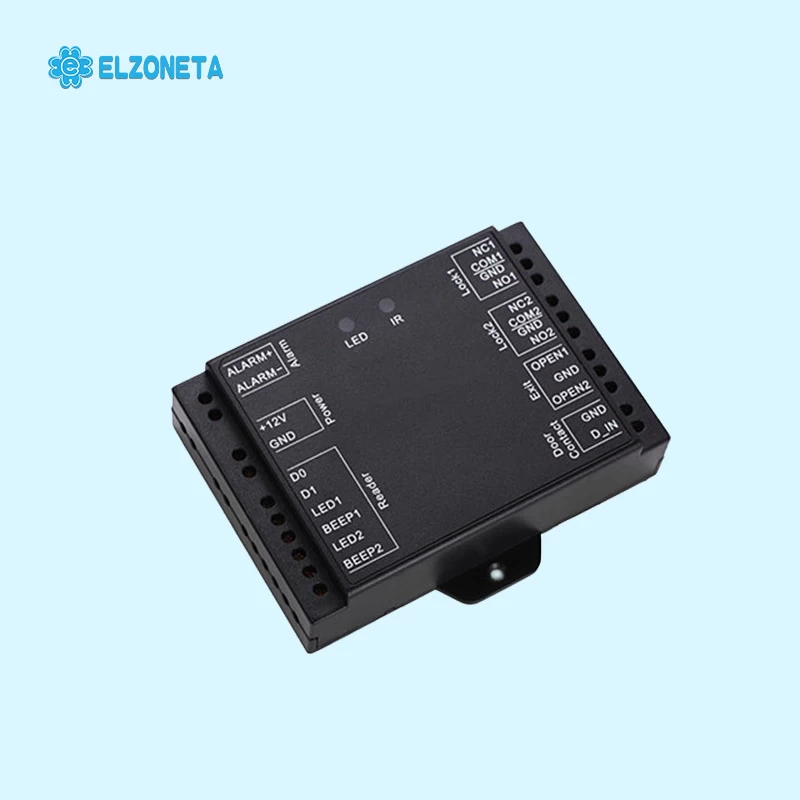

EC-CSII-W Two Zones Wifi Door Access Controller
Features:
• 2,100 users, user data can be transferred
• Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
• Can connect with any reader with Wiegand 26~37 bits output
• Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits Virtual number output
• Support Master Card function
• Support set principal card

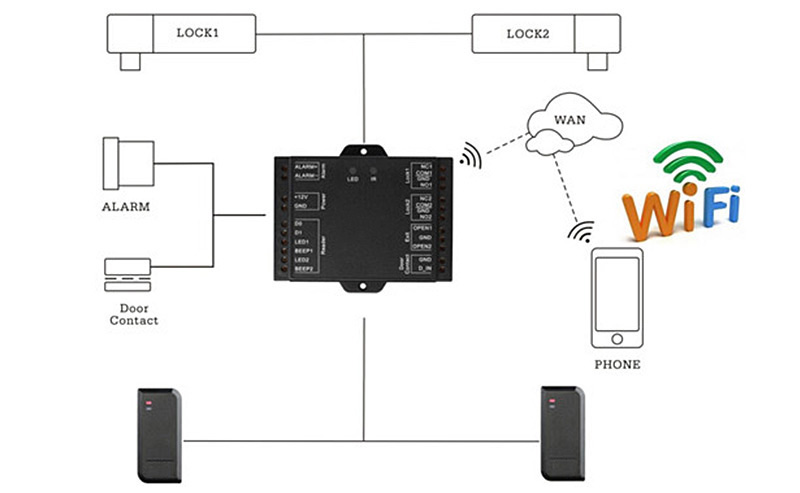

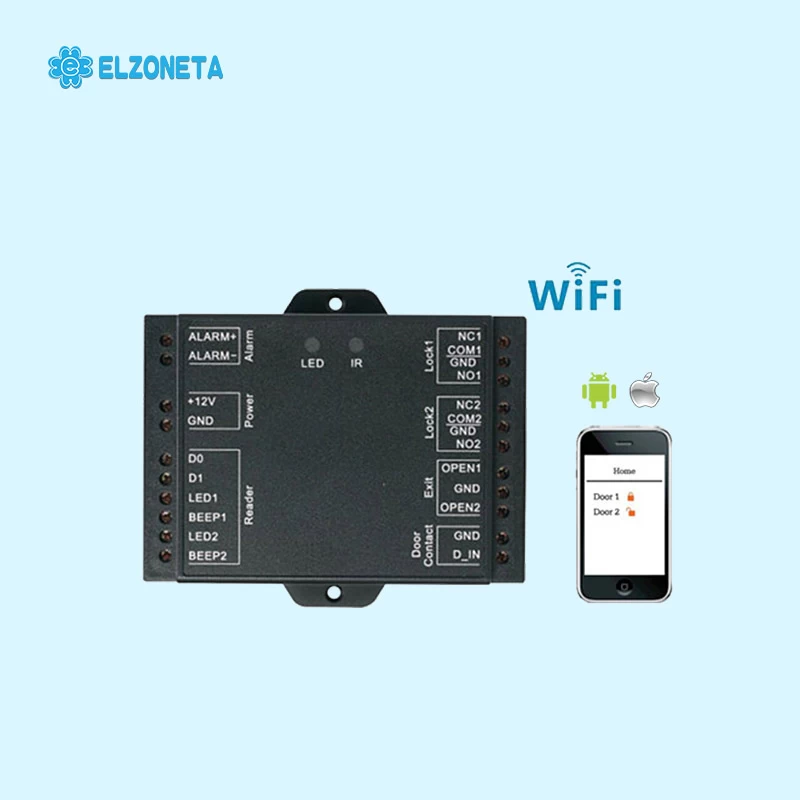

• Can communnicate with mobile by Wifi/GPRS
• Remotely open the door
Specification:
|
User Capacity
Zone 1
Zone 2
|
2,100
2,000
100
|
|
Operating Voltage
Idle Current
Idle Current (With Wifi)
|
9~24V DC
<30mA
<100Ma
|
|
Relay
Adjustable Relay
Output Time
Lock Output Load
|
1~99 Seconds (5 seconds default)
5 Amp Maximum
|
|
Wiegand Interface
Input
Output
|
Wiegand 26~37 bits
Wiegand 26~37 bits (for user transfer)
|
|
Environment
Operating Temperature
Operating Humidity
|
Indoor
-40 oC ~ 60 oC (-40 oF ~ 140 oF)
0~90%RH
|
|
Physical
Colour
Dimensions
Unit Weight
Shipping Weight
|
ABS Shell
Black
L100 x W86 x D26(mm)
110g
180g
|
