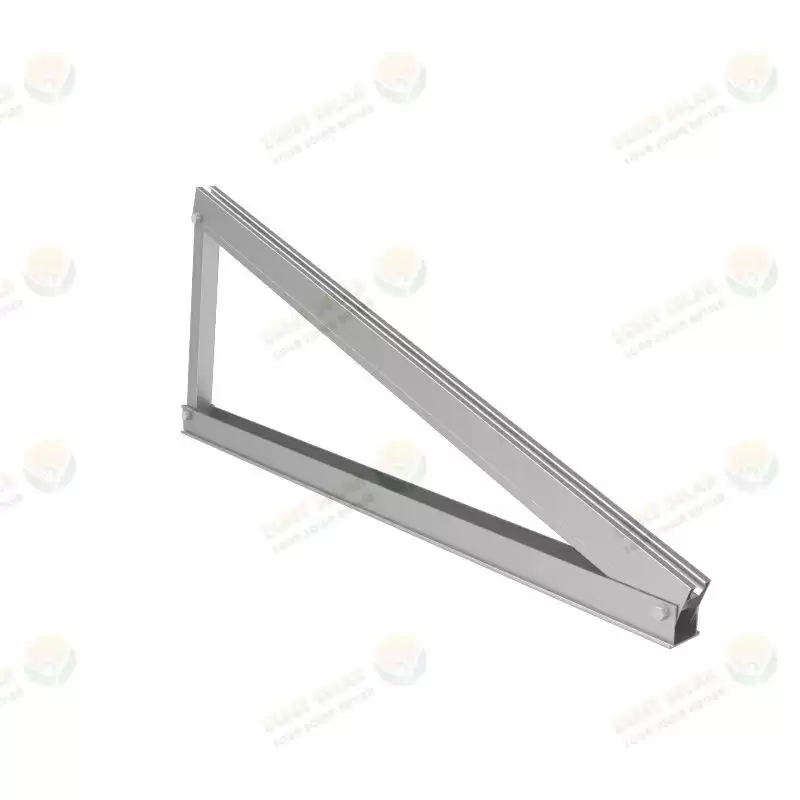

| Product name |
U Type Angular Triangle system |
| Model Number |
EG-TR-AR1 |
| Installation Site |
Solar Panel Mounting system |
| Surface Treatment |
Anodised |
| Wind Load |
60m/s |
| Snow load |
1.2KN/M² |
| Warranty |
12Years |
| Specification |
Adjustable Or Non-adjustable |

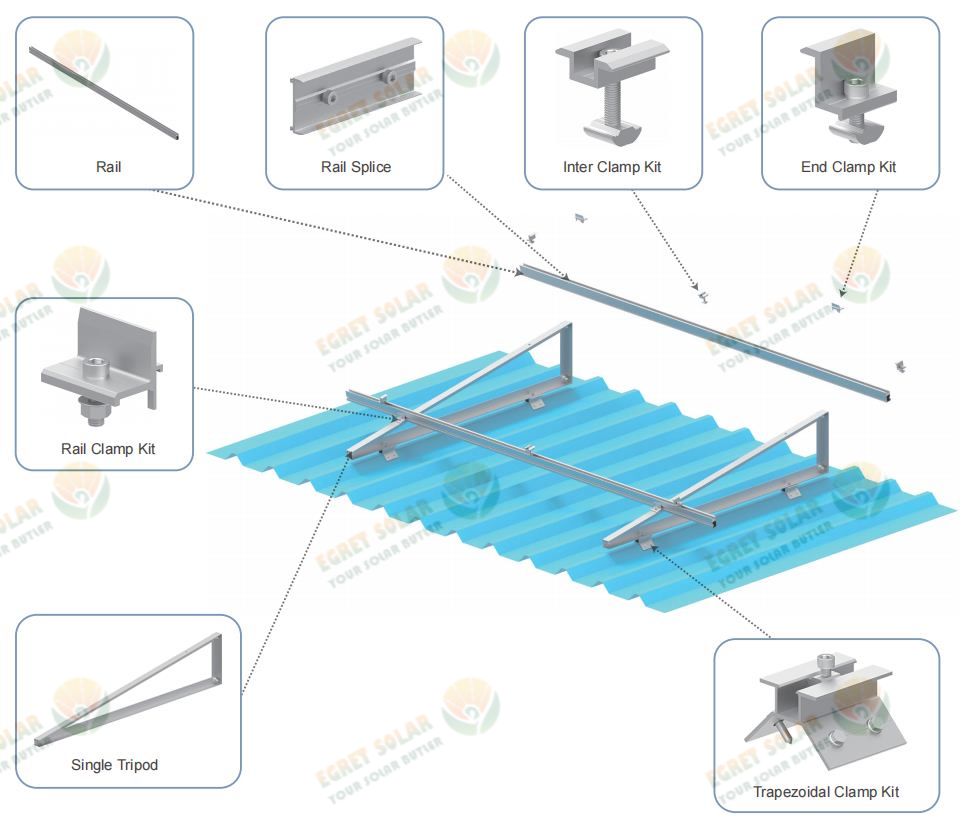

Product Description
Tripod pre-installed brackets for flat roof ballast mounts and agricultural greenhouse tripod mounts.

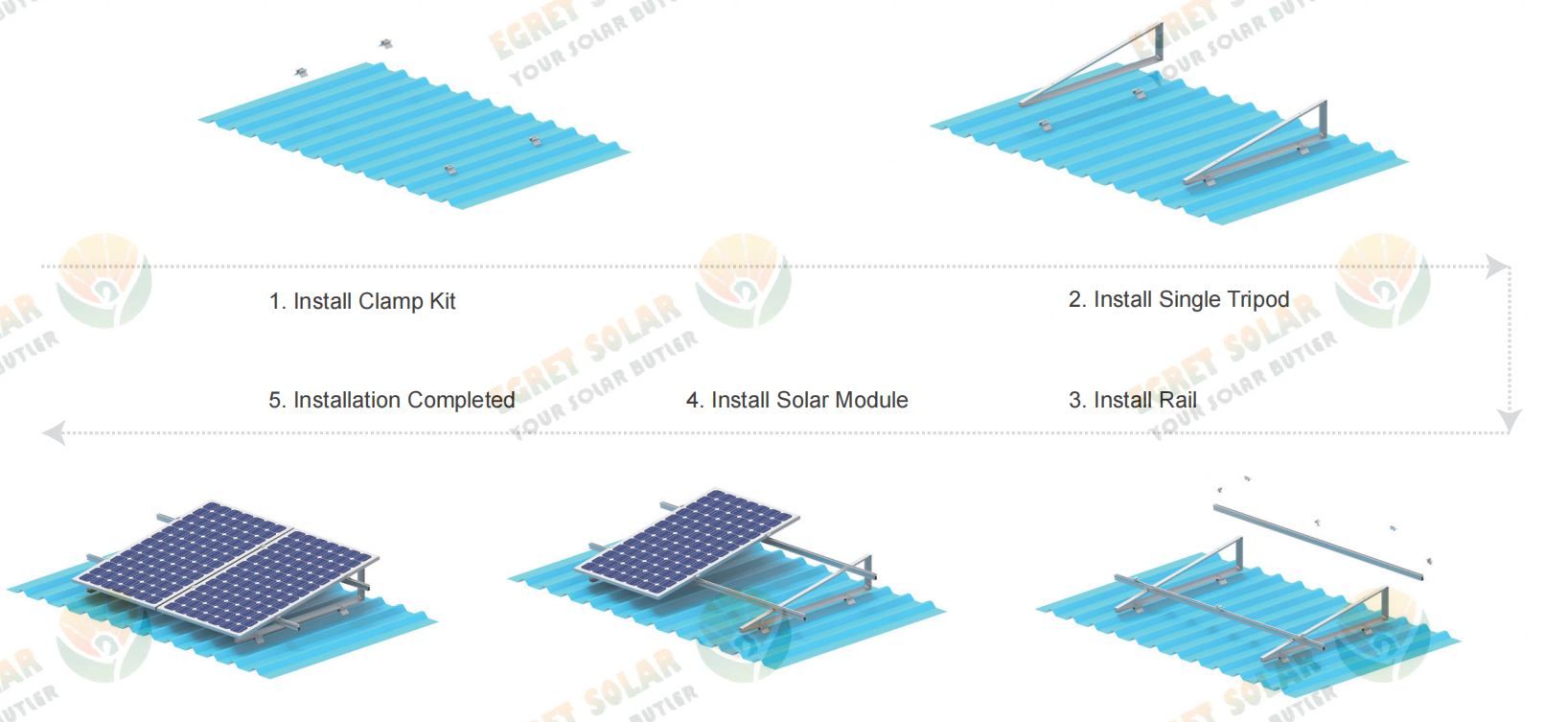

Installation Steps
Installation Steps
FAQ
1.The information of the solar panel:L:______mm,W:______mm,T:_____mm;Power:______w,Frame or Frameless?Panel array:row______column______
2.Wind Load:______m/s 3.Snow Load:______cm 4.Installation Angle:______degree,Portrait or Landscape? 5.Where is Solar panel installed? Salinity control or not?
1)Ground
Structure Type:Common Ground,Carport or Solar Farm?
Foundation:Concrete,Ground Screw,C Pile or U Pile?
Minimum Ground Clearance:______mm
Earth report or not
2)Roof
Roof Type:Tin Roof,Tile Roof or Concrete?
Fixed Solution:Hook,L foot,Clamp,Ballast or Tripod?
Purlin Span:______mm
