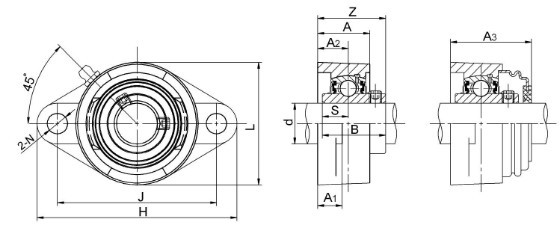

UCFL204 20mm 2 Bolt Flanged Bearing Unit dimension - all dimensions in mm
|
Shaft
|
H
|
J
|
A2
|
A1
|
A
|
N
|
L
|
B
|
S
|
Z
|
Bolt Size
|
|
20mm
|
113
|
90
|
15
|
11
|
25.5
|
12
|
60
|
31
|
12.7
|
33.3
|
M10
|
SKET manufacture and supply UCFL204 20mm 2 Bolt Flanged Bearing Unit with competitive price!
Standard duty four bolt flange bearing with wide inner ring with two set screws. Cast iron housing with grease fitting.
Contact us to get the competitive quotation now!
