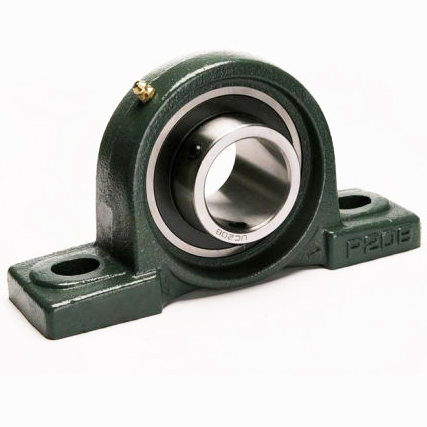

UCP200 Series Pillow Block Housed Bearing Unit
UCP200 series Pillow Block Housed Bearing Unit: Two bolt, pillow block, mounted bearing units, cast iron housing, inch or metric dimensioned shaft sizes.
SKET manufacture and supply standard duty pillow block bearings, with a wide inner ring and two set screws. The housing is cast iron material with grease fitting.
UCP200 Series Pillow Block Housed Bearing Unit dimensions - all dimensions in mm
|
Bearing Unit No.
|
Shaft Dia d
|
Dimensions(mm)
|
Bolt Used(mm)
|
|
h
|
a
|
e
|
b
|
S2
|
S1
|
g
|
w
|
t
|
Z
|
Bi
|
n
|
|
(in)
|
(mm)
|
|
UCP202
|
|
15
|
30.2
|
127
|
95
|
38
|
19
|
13
|
14
|
62
|
2
|
51
|
31
|
12.7
|
M10
|
|
UCP203
|
|
17
|
30.2
|
127
|
95
|
38
|
19
|
13
|
14
|
62
|
2
|
51
|
31
|
12.7
|
M10
|
|
UCP204-12
|
3/4
|
|
33.3
|
127
|
95
|
38
|
19
|
13
|
14
|
65
|
2
|
51
|
31
|
12.7
|
M10
|
|
UCP204
|
|
20
|
|
UCP205-13
|
13/16
|
|
36.5
|
140
|
105
|
38
|
19
|
13
|
15
|
71
|
2
|
57
|
34.1
|
14.3
|
M10
|
|
UCP205-14
|
7/8
|
|
|
UCP205-15
|
15/16
|
|
|
UCP205-16
|
1
|
|
|
UCP205
|
|
25
|
|
UCP206-17
|
1-1/16
|
|
42.9
|
165
|
121
|
48
|
21
|
17
|
17
|
83
|
2
|
62
|
38.1
|
15.9
|
M14
|
|
UCP206-18
|
1-1/8
|
|
|
UCP206-19
|
1-3/16
|
|
|
UCP206-20
|
1-1/4
|
|
|
UCP206
|
|
30
|
|
UCP207-20
|
1-1/4
|
|
47.6
|
167
|
127
|
48
|
21
|
17
|
18
|
93
|
3
|
72
|
42.9
|
17.5
|
M14
|
|
UCP207-21
|
1-5/16
|
|
|
UCP207-22
|
1-3/8
|
|
|
UCP207-23
|
1-7/16
|
|
|
UCP207
|
|
35
|
|
UCP208-24
|
1-1/2
|
|
49.2
|
184
|
137
|
54
|
21
|
17
|
18
|
98
|
3
|
82
|
49.2
|
19
|
M14
|
|
UCP208-25
|
1-9/16
|
|
|
UCP208
|
|
40
|
|
UCP209-26
|
1-5/8
|
|
54
|
190
|
146
|
54
|
21
|
17
|
20
|
106
|
3
|
82
|
49.2
|
19
|
M14
|
|
UCP209-27
|
1-11/16
|
|
|
UCP209-28
|
1-3/4
|
|
|
UCP209
|
|
45
|
|
UCP210-29
|
1-13/16
|
|
57.2
|
206
|
159
|
60
|
25
|
20
|
21
|
114
|
3
|
87
|
51.6
|
19
|
M16
|
|
UCP210-30
|
1-7/8
|
|
|
UCP210-31
|
1-15/16
|
|
|
UCP210-32
|
2
|
|
|
UCP210
|
|
50
|
|
UCP211-32
|
2
|
|
63.5
|
219
|
171
|
60
|
25
|
20
|
23
|
126
|
4
|
92
|
55.6
|
22.2
|
M16
|
|
UCP211-33
|
2-1/16
|
|
|
UCP211-34
|
2-1/8
|
|
|
UCP211-35
|
2-3/16
|
|
|
UCP211
|
|
55
|
|
UCP212-36
|
2-1/4
|
|
69.8
|
241
|
184
|
70
|
25
|
20
|
25
|
138
|
4
|
102
|
65.1
|
25.4
|
M16
|
|
UCP212-37
|
2-5/16
|
|
|
UCP212-38
|
2-3/8
|
|
|
UCP212-39
|
2-7/16
|
|
|
UCP212
|
|
60
|
|
UCP213-40
|
2-1/2
|
|
76.2
|
265
|
203
|
70
|
29
|
25
|
27
|
151
|
4
|
107
|
65.1
|
25.4
|
M20
|
|
UCP213-41
|
2-9/16
|
|
|
UCP213
|
|
65
|
|
UCP214-42
|
2-5/8
|
|
79.4
|
266
|
210
|
72
|
31
|
25
|
27
|
157
|
|
|
74.6
|
30.2
|
M20
|
|
UCP214-43
|
2-11/16
|
|
|
UCP214-44
|
2-3/4
|
|
|
UCP214
|
|
70
|
|
UCP215-45
|
2-13/16
|
|
82.6
|
275
|
217
|
74
|
31
|
25
|
28
|
163
|
|
|
77.8
|
33.3
|
M20
|
|
UCP215-46
|
2-7/8
|
|
|
UCP215-47
|
2-15/16
|
|
|
UCP215-48
|
3
|
|
|
UCP215
|
|
75
|
|
UCP216-50
|
3-1/8
|
|
88.9
|
292
|
232
|
78
|
31
|
25
|
30
|
175
|
|
|
82.6
|
33.3
|
M20
|
|
UCP216
|
|
80
|
|
UCP217-52
|
3-1/4
|
|
95.2
|
310
|
247
|
83
|
31
|
25
|
32
|
187
|
|
|
85.7
|
34.1
|
M20
|
|
UCP217
|
|
85
|
|
UCP218-56
|
3-1/2
|
|
101.6
|
327
|
262
|
88
|
33
|
27
|
33
|
200
|
|
|
96
|
39.7
|
M22
|
|
UCP218
|
|
90
|
