Features:
*Driver for the UPK-W Series
*0.75, 1.4 or 2.8A/Phase Output Currents
*Vibration Control to Minimize Mid-Frequency Resonance

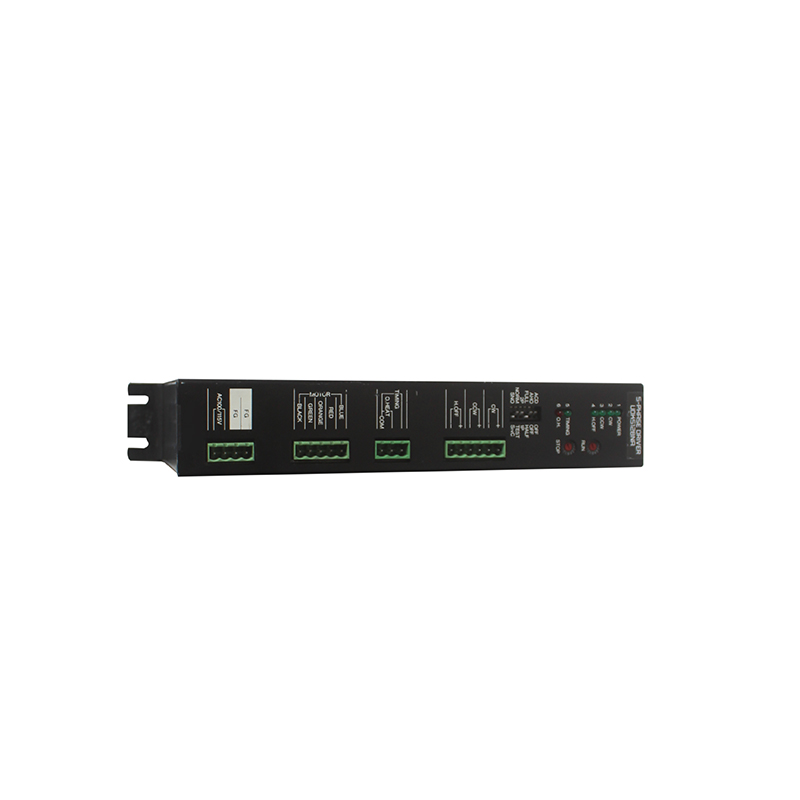

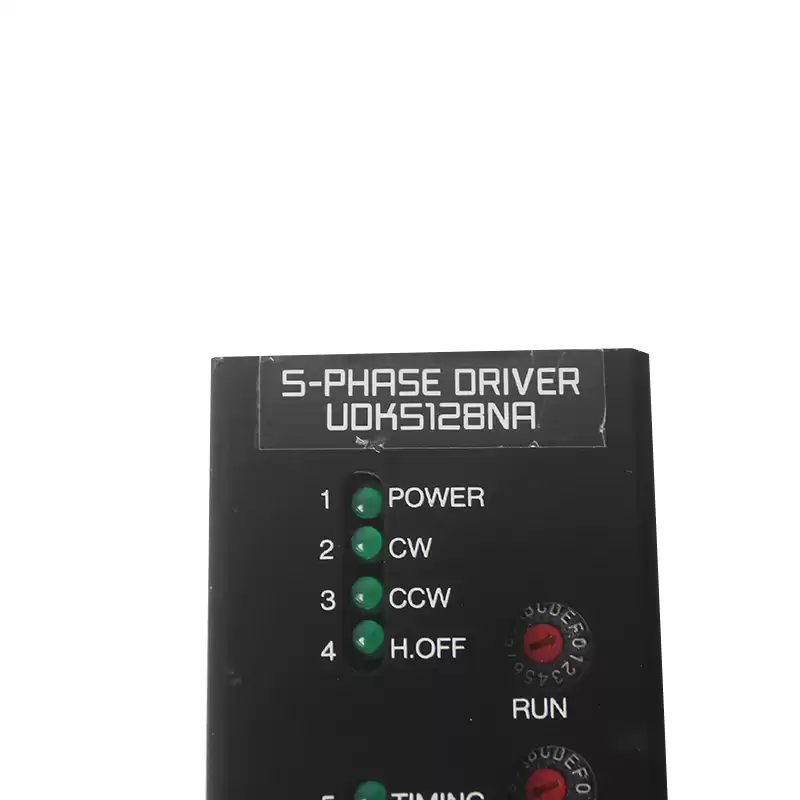

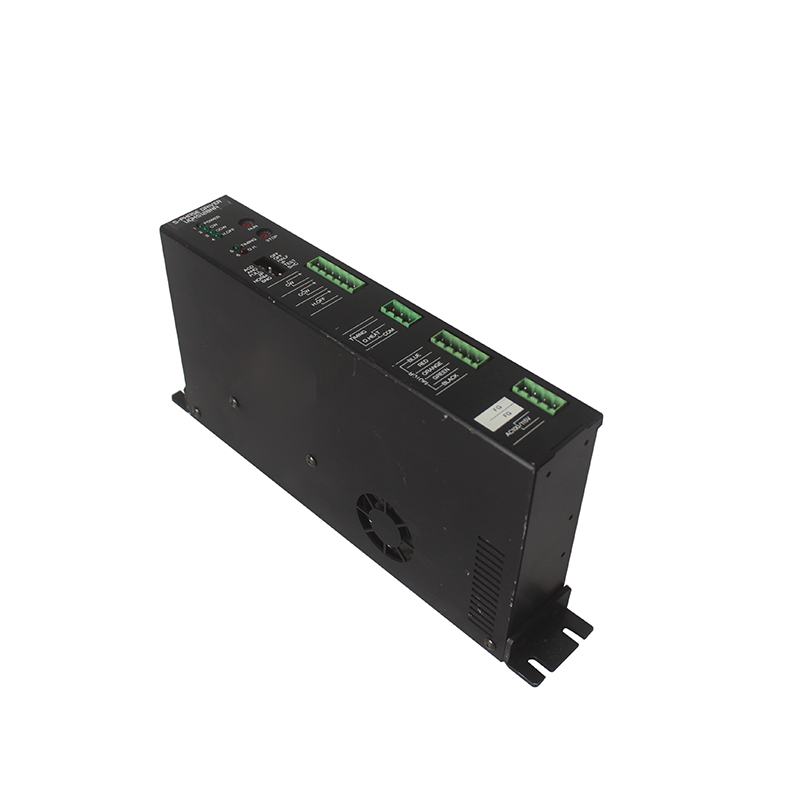

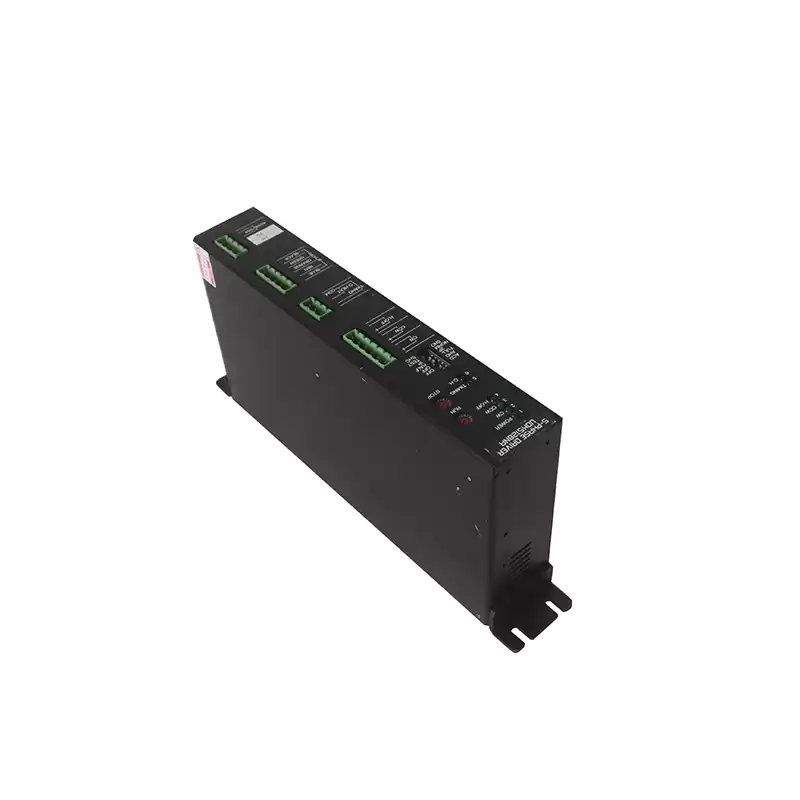

The UDK 5-Phase Driver Series are drivers for the PK Motor Series and UPK and UPK-W Motor/Driver Combination.

The UDK Series model has a maximum rated output current 1.4, or 2.8A/phase.

The UPK and UPK-W Series are a 5-phase stepping motor and dedicated driver package. These systems offers high resolution (resolution: 500 per rotation) and the stop accuracy (±3 minutes) enabling a high positional accuracy.

The combination of the Oriental Motors UPK/UDK 5-phase stepping motor and drive systems diminishes vibration peculiar to stepping motors.
