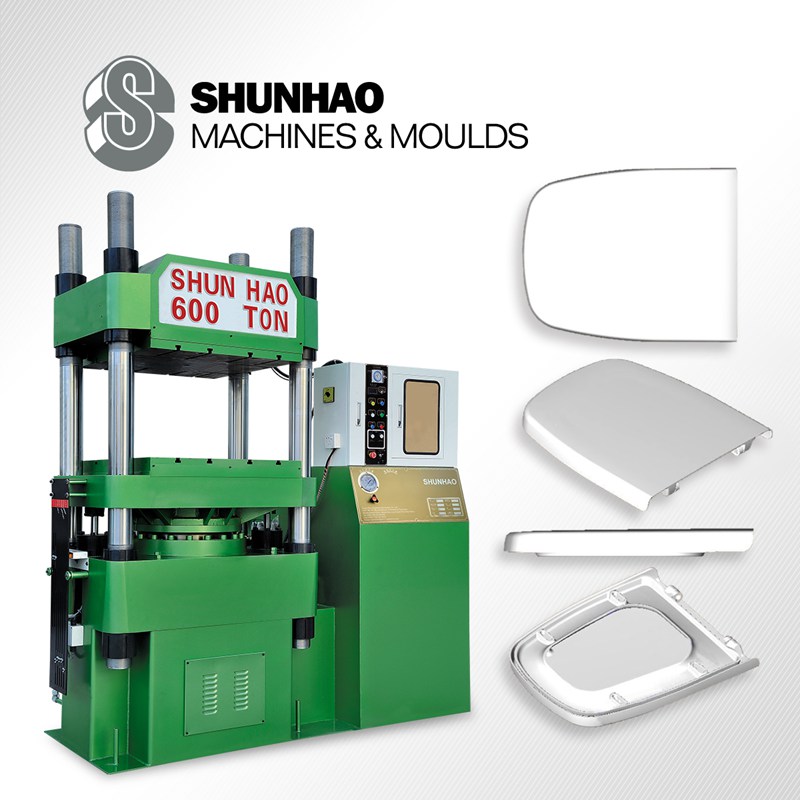

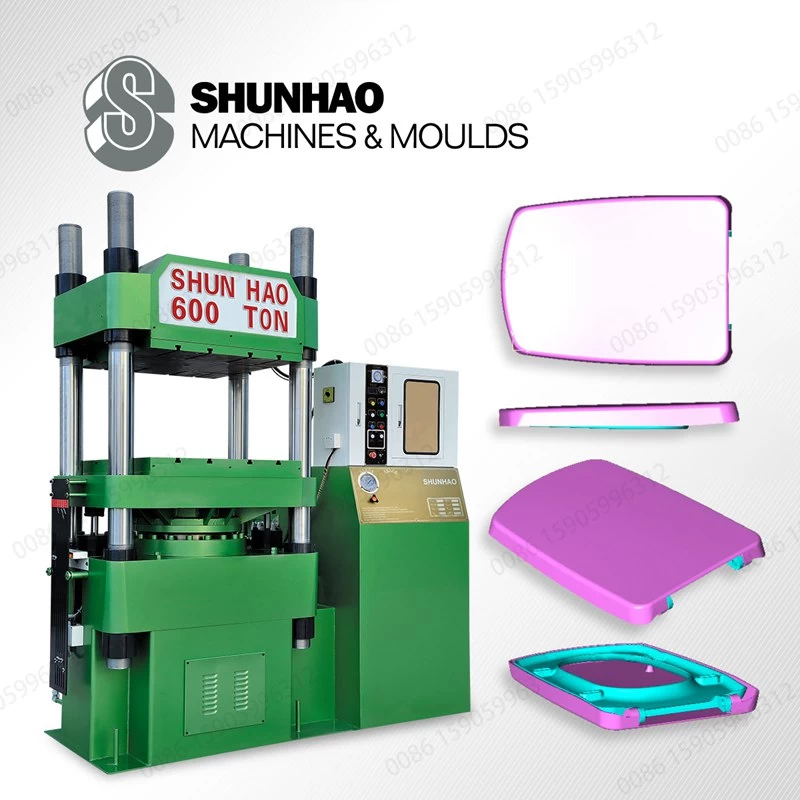

UF Toilet Seat Cover Compression Machine
Application
It can produce sanitary equipment, uraldehyde toilet seat cover and other products.
Features
1. Adopt PLC computer control, simple operation, low failure rate, easy maintenance, and control with touch screen to make the operation more user-friendly.
2. Can use the heart pumping function, the heart pumping speed and pressure are not limited, and can be designed according to customers' requirements.
3. The pressure has a correction function. Accurate pressure control and stable production. The product defect rate is low with a high effcient production.
Technical Parameters
|
No.
|
Content
|
DTB 600
|
|
1
|
Main Cylinder
Nominal Pressure
|
600Tons
|
|
2
|
Maximum Working
Pressure
|
210kg/cm2
|
|
3
|
Main Cylinder
Piston Diameter
|
Ø600mm
|
|
4
|
※Auxiliary Cylinder
|
Shaft Ø50/pressure
12T
|
|
5
|
Main Cylinder
Working Stroke
|
600mm
|
|
6
|
Adjustable Table
Distance
|
600~900mm
|
|
7
|
Heating Plate
Size
|
900*860mm
|
|
8
|
Working Layers
|
1 layer
|
|
9
|
Heating Plate
Material
|
45# Special crafts
|
|
10
|
Tension Column
(Heat Treatment Grinding)
|
Ø165*2692mm
|
|
11
|
Oil Hydraulic
Pump
|
21Mpa
|
|
12
|
Motor
Specifications
|
15HP
|
|
13
|
Heating Sheet
Total Power
|
20.4KW
|
|
14
|
Machine Total
Power
|
31.7KW
|
|
15
|
Machine
Size(length * width * height)
|
2.6*1.5*3.2 M
|
|
16
|
Machine Weight
|
12000KGS
|
■ PS: Specifications subject to change without notice.
