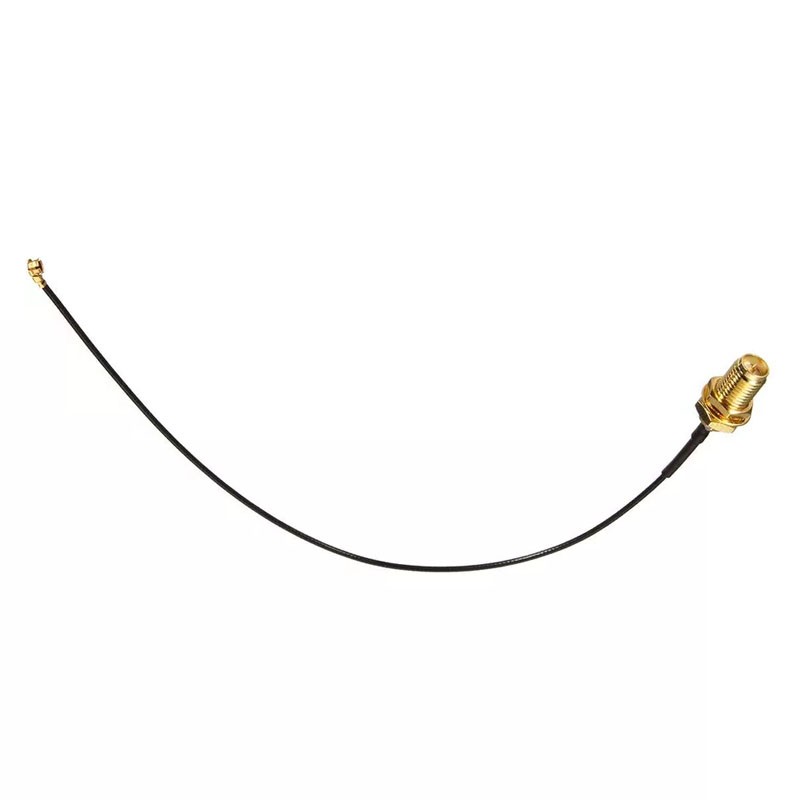

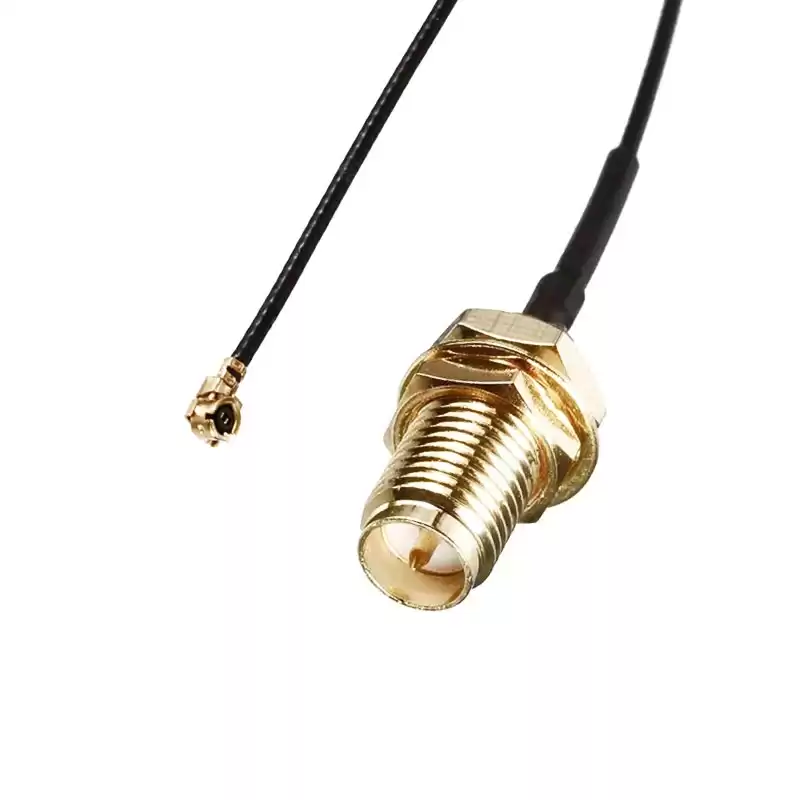

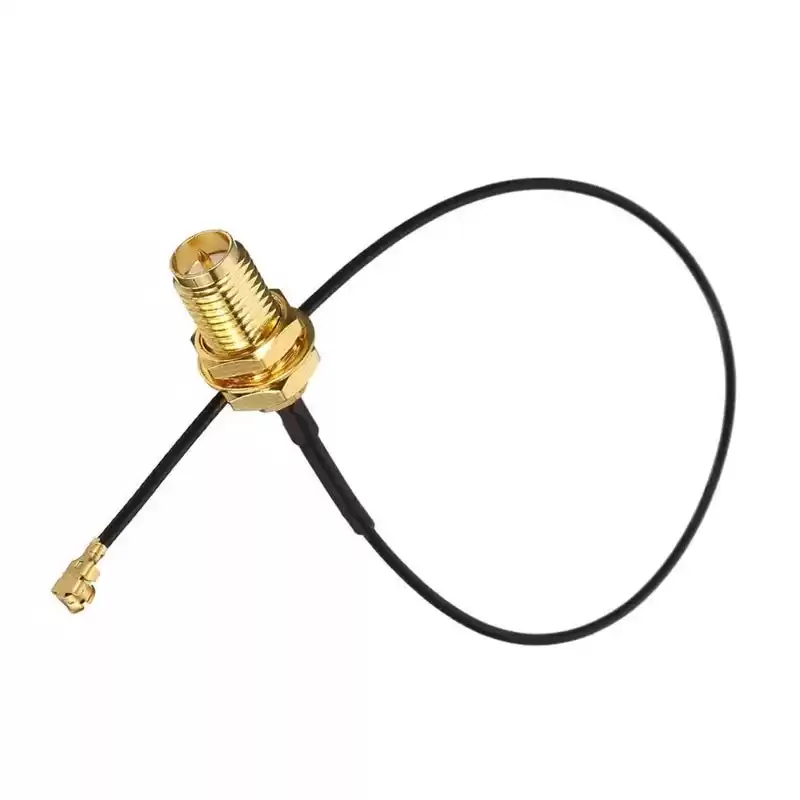

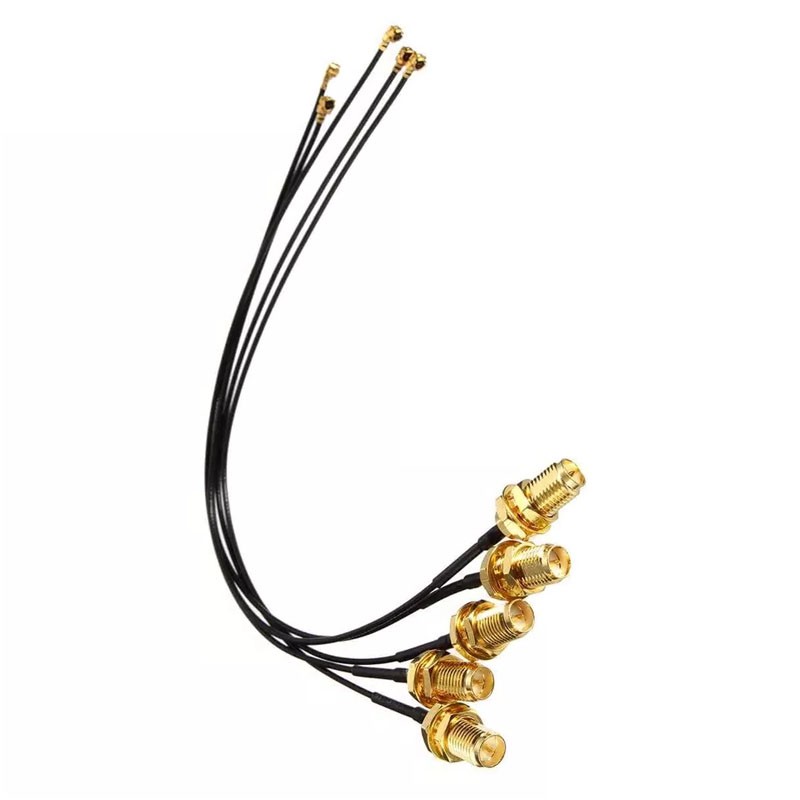

UFL IPEX to RP SMA Female RF Coaxial Connector Assembly with 1.13mm Cable for Antenna
The UFL cable assembly can use ultra-fine coaxial cable such as 0.81mm, 1.13mm, 1.37mm, RG178; the body of UFL to SMA cable assembly is straight connectors which is plug to female or plug to male gender. This UFL plug to RP SMA female cable assembly uses a 50ohm straight UFL for connector 1 and a 50ohm straight SMA for connector 2, Cable is a 50ohm Type 1.13mm.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
UFL/IPEX/MHF |
| Connector 1 Style |
Plug |
| Cable Type |
1.13mm |
| Connector 2 Series |
RP SMA |
| Connector 2 Style |
Str Female |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Max Frequency |
6GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Wireless LAN Devices (Wi-Fi 6)
- Bluetooth devices
- Car navigation
- drone,PDA,GPS
- wireless transmission devices
- electronic measuring devices
