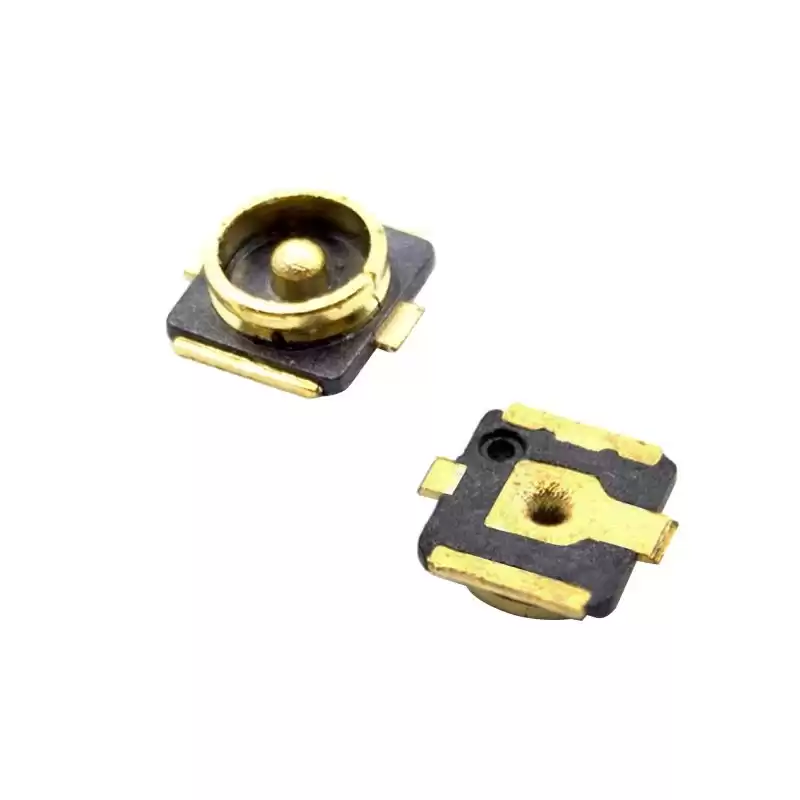

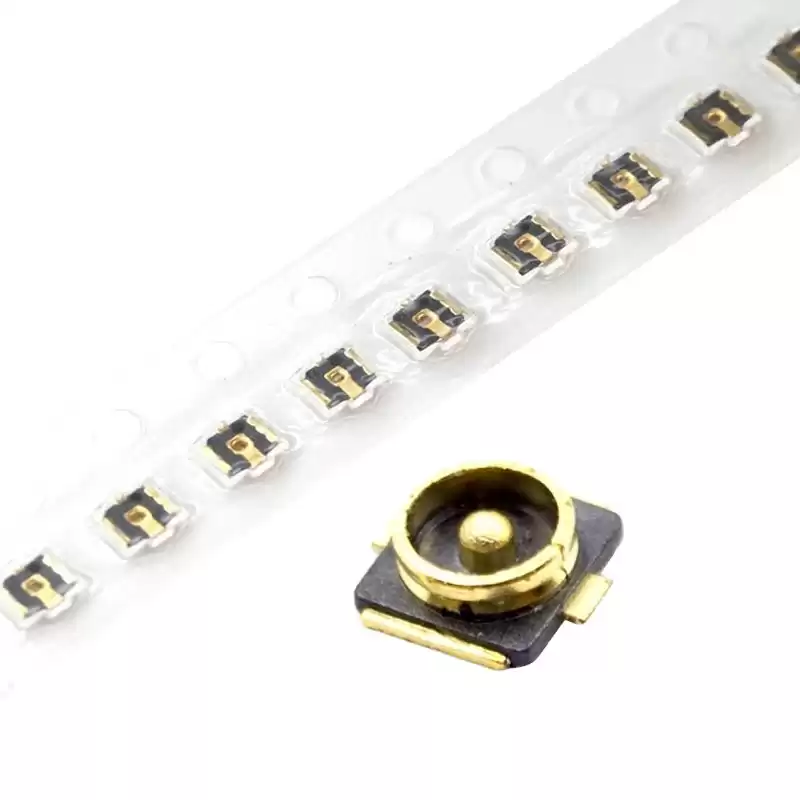

UFL3 IPEX3 MHF3 Male RF Coaxial SMT PCB Socket Connector for Antenna
The IPEX UFL MHF connector is a 1U CubeSat (of size 10 cm x 10 cm x 10 cm and a mass of ~1 kg) intended to flight validate technologies for onboard instrument processing ;The IPEX U.FL MHF spacecraft will use aligned magnets for passive stabilization in LEO (Low Earth Orbit).
Specifications
| ELECTRICAL DATA |
|
| Temperature Range |
-40°C ~+90°C |
| Characteristic impedancd |
50Ω |
| Frequency range |
0~6GHz |
| Working voltage |
170V(r ms) |
| VSWR |
≤1.25 |
| Insulation Resistance |
≥1000MΩ |
| Dielectric Withstanding voltage |
500V(r ms) |
| Contact resistance |
Center conductor ≤10mΩ |
| Outer conductor ≤5mΩ |
| Durability |
500 Cycles |
| Material And Plating |
|
| Body |
Brass , gold plated |
| Male center contacts |
Phosphor bronze , gold plated |
| Female center contacts |
Beryllium copper , gold plated |
| Insulators |
PTFE |
| Crimp Ferrules |
Copper alloy , nickel or gold plated |
Applications
- PHS
- GPS
- Cellular phones
- Wireless communication devices
- Electronic measuring instruments
- Mobile phones
- Wireless LAN
- Bluetooth
- Application requiring high frequency transmission using small coaxial connectors
