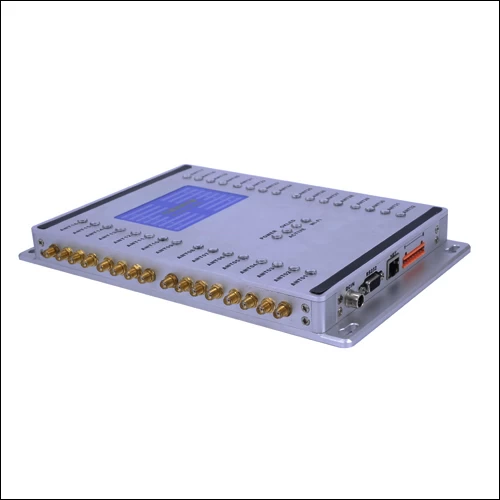

channel reader R2000 JT-932 is our new generation of UHF RFID Reader. It applies FCC ISM (902-928MHz) protocol and ETSI (865.6-867.6MHz) (need to specify when the order is placed). This device is designed to read ISO18000-6C(EPC C1 GEN2)Tags. Light weight, high receive sensitivity, easy to operation,reliable, stable performance. JT-932 provides API function for further development. Meanwhile, it is integrated with LAN interface, management software and database. The process of building a success system can meet all the needs of storage management, logistic, VMI-HUB, industrial production management, identification, access management, aero tunnels management,etc.,
Feature:
◆High speed reading and high sensitivity
◆Support multi work modes (auto,
command, triggering);
◆Could connect 32 external antenna
◆Multiple tags reading ability
◆Support DEMO and SDK; support
secondary development
Application:
1. Vehicle management: monitoring and managing autos and containers;
2. Customs management: great speed up the customs’ process;
3. Logistics management: parcels and whale house management;
4. Access control: including car access and personal access;
5. Production line management: monitoring products from end to end;
6. Asset management: dramatically improved the security level;
7. Aero tunnels management.
Specification:
|
Performance
parameters
|
|
Working
Frequency
|
902~928 MHz or
865~868MHz
|
|
Protocol
|
ISO18000-6C(EPC
C1 GEN2)
|
|
Chip
|
Impinj R2000
|
|
RF power
|
0~30dBm(Adjustable)
|
|
Software & SDK
|
DEMO and C#, VC,
Java
|
|
Communication
port
|
RS232,TCP/IP,WIFI
|
|
Industrial
lightning protection
|
6000V
|
|
Reading range
|
With 12dBi
antenna, stable reading range 30M(Depends on tag & environment)
|
|
Tag handling
volume
|
0-200 tags
|
|
Storage space
|
1M or 8M Flash
save without power supply(customized)
|
|
Real-time clock
|
without power
supply, real-time clock save and working(customized)
|
|
Frequency
modulation
|
hopping or fixed
frequency
|
|
Input/output
port
|
Two-way relay
output, one-way I/O input
|
|
RSSI
|
RSSI numerical
test
|
|
Physical
parameters:
|
|
|

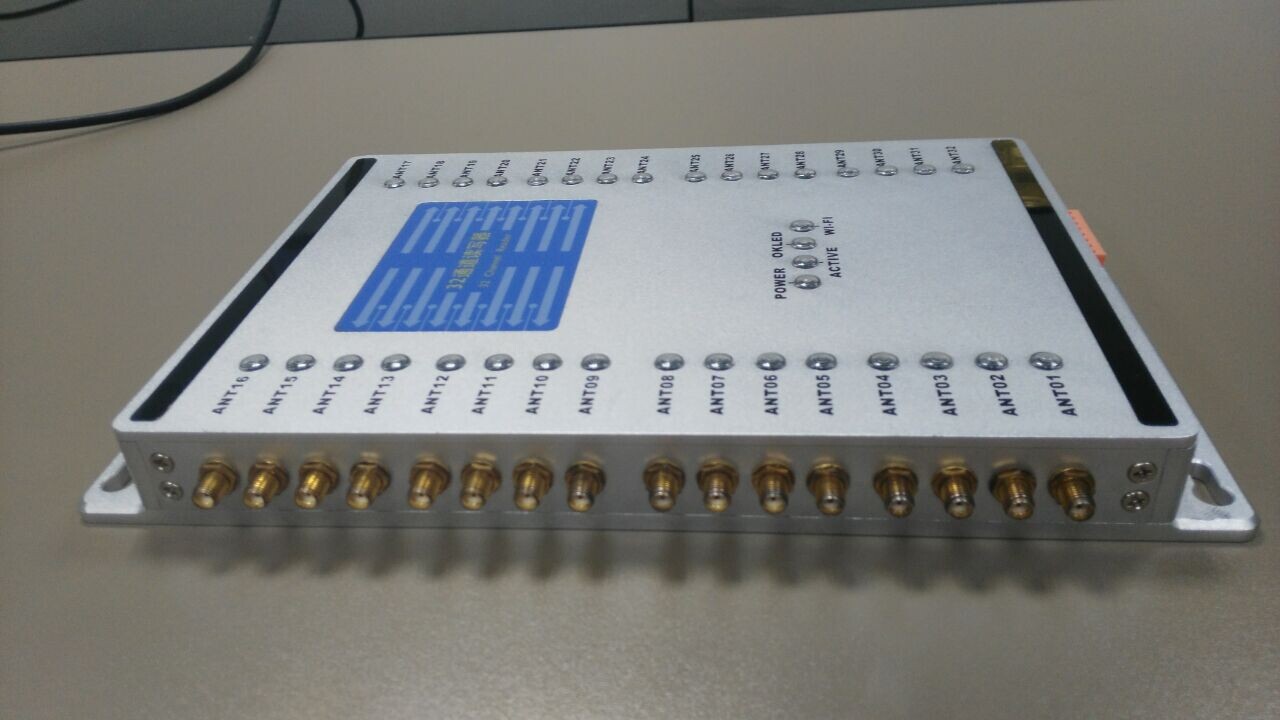

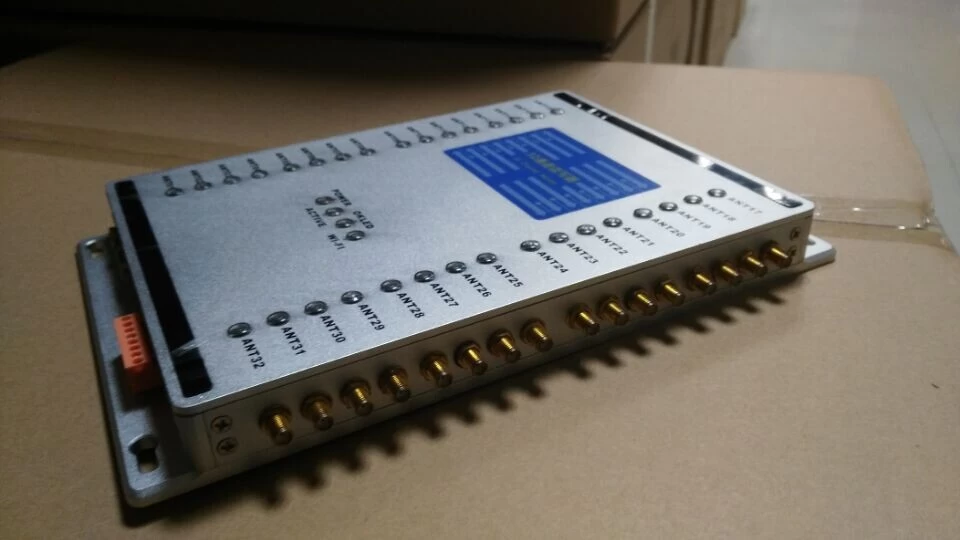

RF connector
|
32 SMA outer
female connector
|
|
Power
|
12V/3A Adaptor
|
|
Ethernet power
supply
|
POE(customized)
|
|
Working
temperature
|
-20℃~+65℃
|
|
Storage
temperature
|
-45℃~+95℃
|
|
Item size
|
240x180x30mm
|
|
Package size
|
410x270x110mm
|
|
Net weight
|
2KG
|
