Product Name:
50W Duplexer Filter is a UHF passive components,frequen range is around 350-380MHz/400-470MHz,the advantage of RF Duplexer Filter are a lot,like easy to install,good look, high reliability and so on...
Product Feature:
◆ Low Insertion loss &Low return loss
◆ Compact, low weight
◆ High reliability
◆ Simple installation
Technical &Mechanical Specifications:
|
Model No.
|
MNF-400-470/350-380-NF
|
|
Frequency range
|
400-470/350-380MHz
|
|
Frequency Separation
|
5-10MHz
|
|
Insertion Loss
|
≤1.2dB
|
|
Return Loss
|
≥18dB
|
|
Power(W)
|
50
|
|
Isolation
|
≥75dB
|
|
Connector
|
N-Female
|
|
Operating teperaure
|
-10~+60
|
Services:
1. Professional skills support for 50W Duplexer Filter UHF Band frequency range 400-470MHz/350-380MHz N-Female Connector
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose

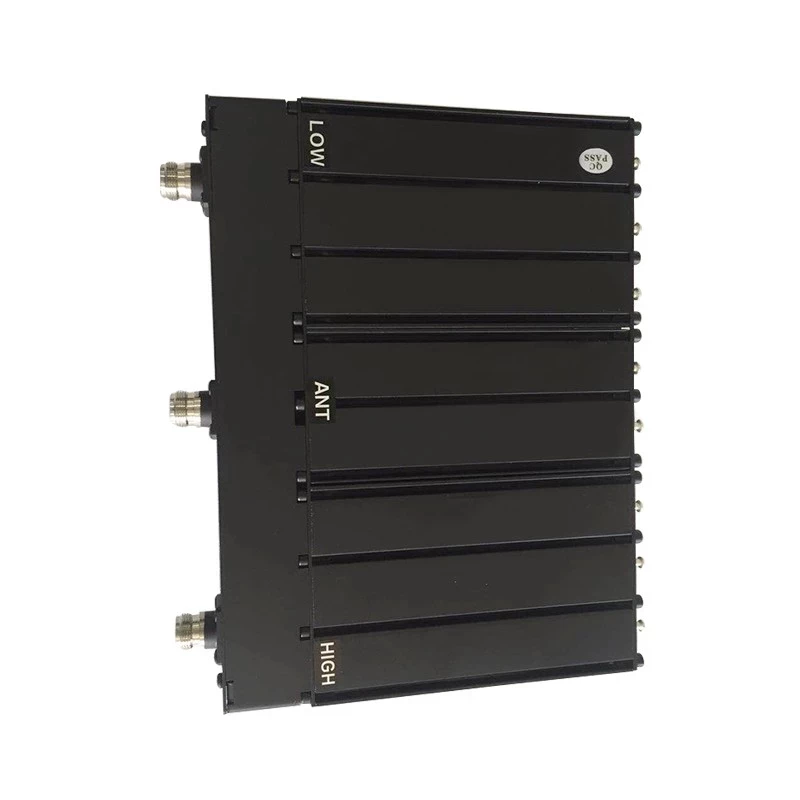

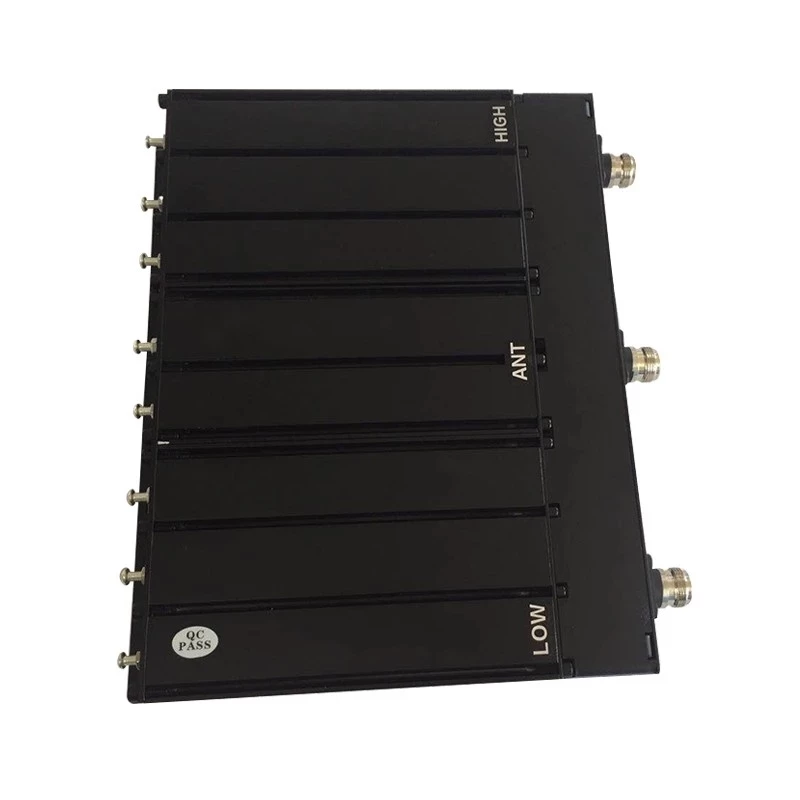

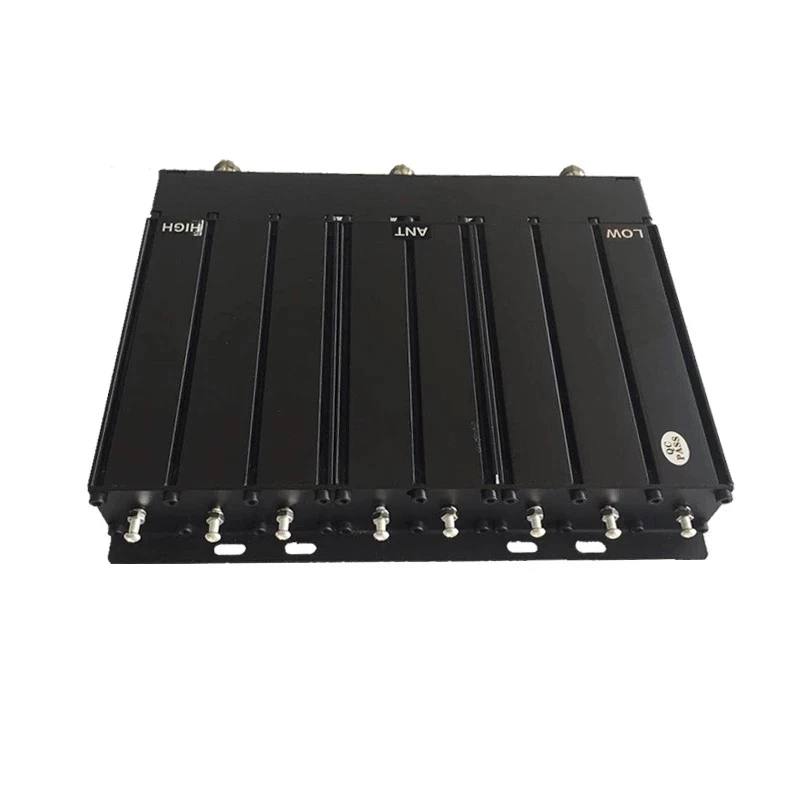

Detailed image:
