Application:
Radio-frequency reader antenna, used for terminals, parking lots, shopping malls, toll station.
Specification:
|
TYPLE
|
JT-603
|
|
Performance
parameters
|
|
|
Working
Frequency
|
902~928 MHz or
865~868MHz
|
|
Antenna gain
|
9dBi
|
|
Polarization
|
Circular
polarization
|
|
VSWR
|
≤1.3
|
|
Beam Width
H-Plane(°)
|
70°
|
|
Beam Width
E-Plane(°)
|
70°
|
|
Impedance(Ω)
|
50
|
|

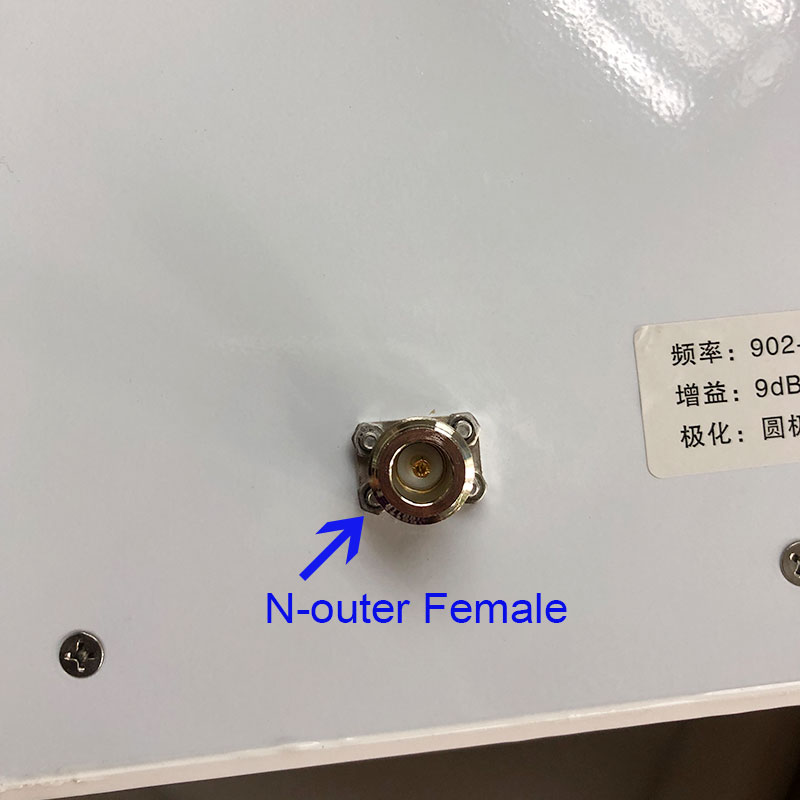

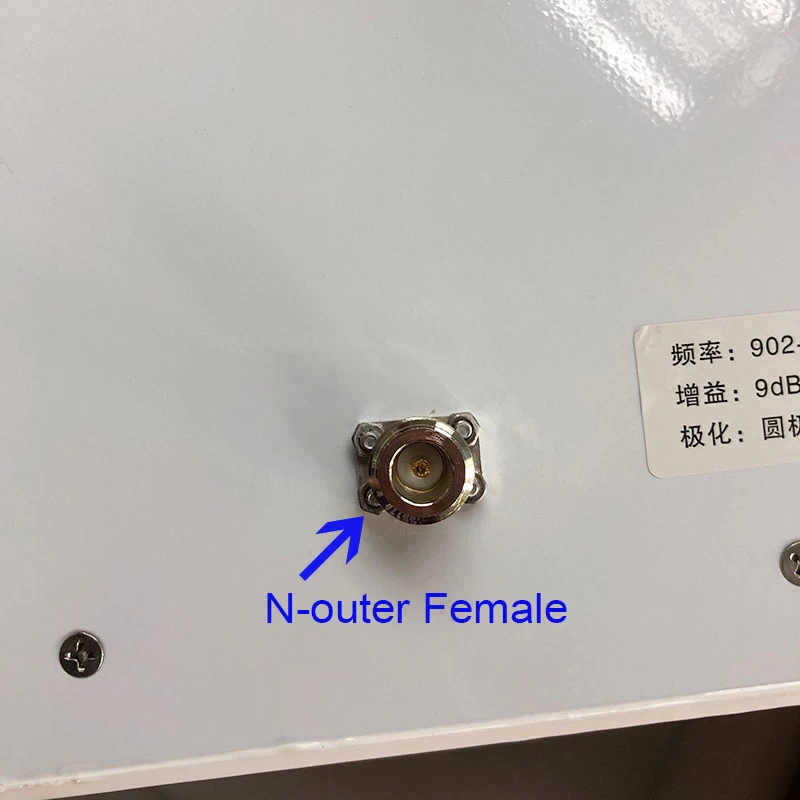

Connector
|
N-50K
|
|
Physical
parameters:
|
|
|
size
|
280x280x40mm
|
|
Package size
|
430x330x130mm
|
|
Net weight
|
2Kg
|
|
Material
|
Aluminum
|
|
Radome color
|
White
|
|
Radome material
|
ABS
|
|
Working
temperature
|
-40℃~+85℃
|
|
Storage temperature
|
-45℃~+95℃
|
|
Protection class
|
IP67
|
