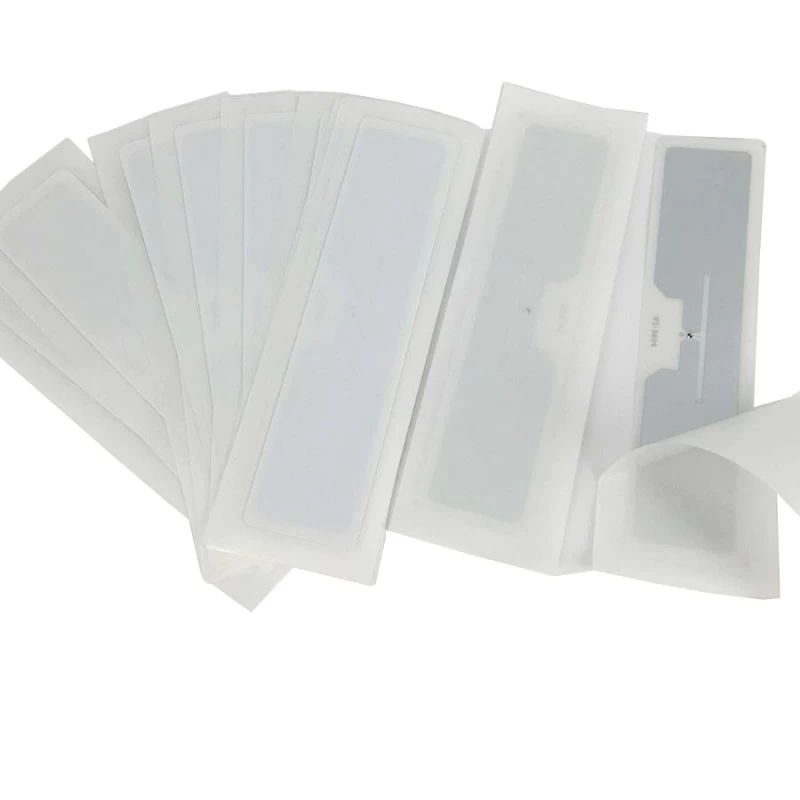

Product Name:Long Reading Distance RFID Tag Alien H3 9654 UHF RFID Label
Description
UHF follows the EPCglobal Gen2 standard , frequency:860~960 MHz , reading distance is longer than LF and HF RFID tags,the accurate reading distance is depends on your reader and working environment.
Specification
1.Material:Paper
2.Size:92*19 mm
3.Chip:Alien H3
4.Frequency:860~960 MHZ
5.Memory:EPC Class1 Gen2 chip with 96—480bit EPC memory, 512bit user memory , 64bit UTID with memory read protection.
6.Reading distance:0~ 12 meter
7.Crafts Available:Number /EPC Printing ,EPC / Password Data encoding
8.Material:
Our Inlay are covered in the surface material to form the final label. These are some materials:
Coated Paper: Low cost, easy to print on.
PET: Waterproof, heatproof, environmental protection.
PVC: Waterproof, corrosion resistance, high-temperature resistance.
Normal Double-sided adhesive: Robust, widely used, and cheaper than 3M Glue.
3M Glue: Higher cost but strong viscosity, good temperature tolerance & anti-corrosion.
Electrostatic adhesive:Electrostatic prevention, high temperature resistance, strong water resistance
For die-cutting the minimum size should be 4mm bigger than inlay normally.

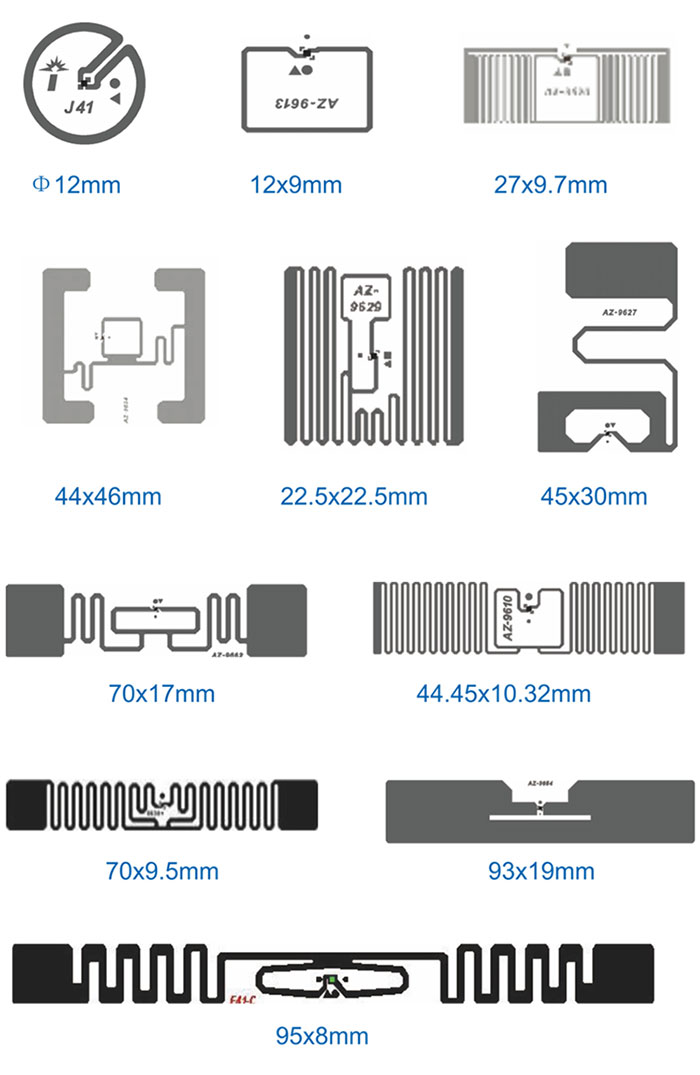

Custom Sizes
Common Package
1000 pcs /2000 pcs /5000 pcs in one roll,
10,000 pcs /50,000 pcs /100,000pcs per carton
Weight:About 2KG for 1000 pcs
Carton Size:49*23*20 cm;49*23*26 cm
Application
Asset management, production line management, supply chain management, warehousing management, luggage tag，anti-counterfeiting management (tobacco, liquor, medicine), retailmanagement, vehicle management, etc.
