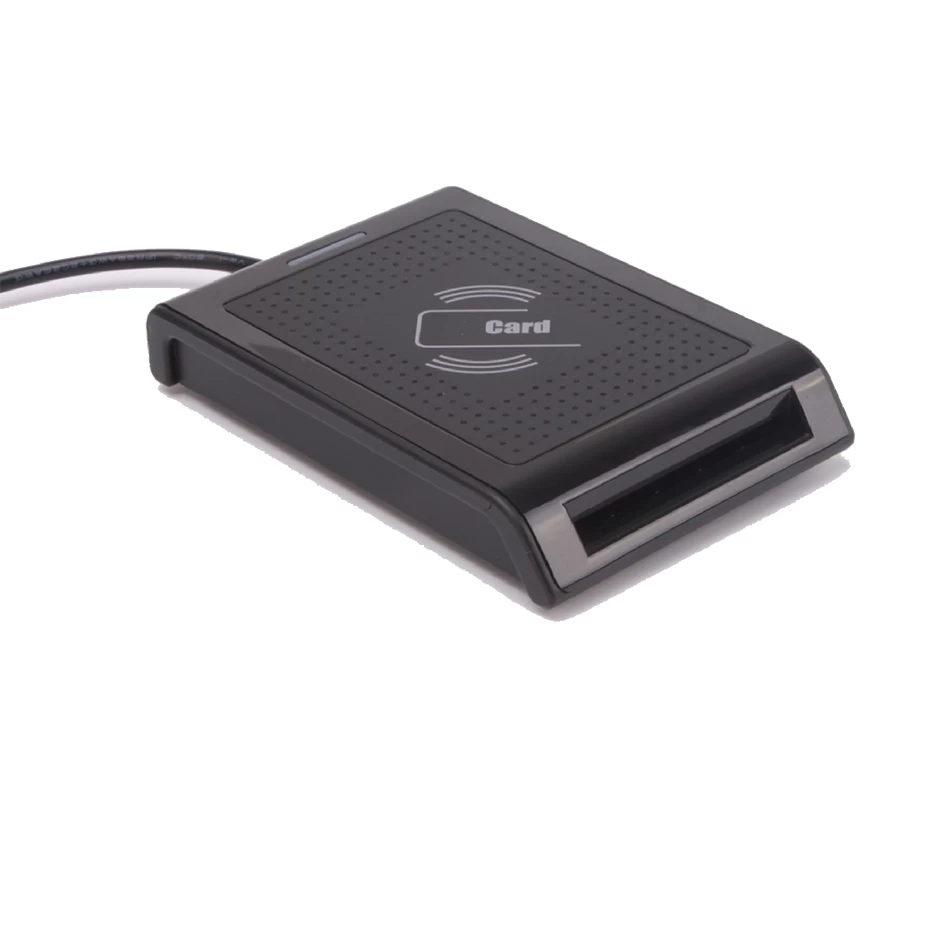

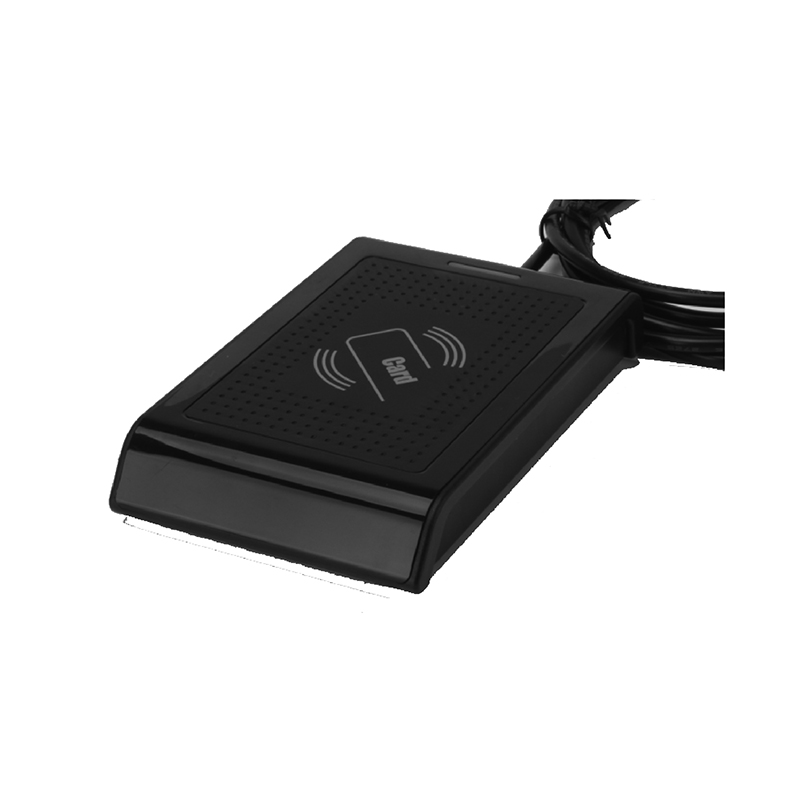

UHF EPC Gen2 ISO18000 6C Full Speed UHF RFID Desktop USB Reader

USB 2.0 Communication Interface, the input of serial port on the left, the output of keyboard on the right. It's stable for reading and and writing the data. Supported Operating Systems:Windows® XP, Windows® 7, Windows® 8.1, Windows® 10, Linux®, Android4.0 above.



UHF EPC Gen2 ISO18000 6C Full Speed UHF RFID Desktop USB Reader


UHF Reader-Spec V1.0 Description :

Our C-series UHF Readers are double USB fixed Desktop UHF RFID reader, andthe reader's default working frequency band is860-960MHZsupports ISO18000-6C (EPC C1 GEN2) protocol.

Host Interface
Interface
USB 2.0 Full Speed Device (HID)or High Speed RS232 (9600-115200bps)
Power Source
From USB port(400mA)
Supported Operating Systems
Windows® XP, Windows® 7, Windows® 8.1, Windows® 10, Linux®, Android4.0 above
UHF Interface
UHF Interface
Standard
UHF EPC Gen2(ISO18000-6C)
Support the card type
840~960MHz frequency band(frequency customization optional)
Power
RF output power up to 20dbm(adjustable)
Operating Distance
adjustable
Built-in Peripherals
Buzzer
Monotone
LED Status Indicators
2 LED (green and red)
Physical Specifications
Dimensions
118mm (L) x 78mm (W) x 18mm (H)
Weight
260g
Operating Conditions
Temperature
0°C – 60°C
Humidity
10% to 90%, non-condensing


Method of installation and use

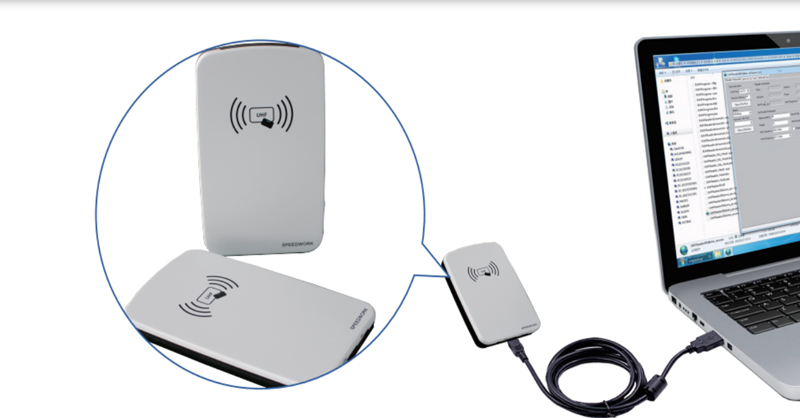

1. Connect with computer through USB interface directly. When the buzzer sounded, reader into the self-inspection. And the same time, LED turn into red means standby.
2. Open the output of computer software,such as Notepad\a word document or Excel sheets.
3. The mouse in Notepad or WORD document clicking.
4. Put tag on the top of reader, the software will output a data(EPC) of the tag. When reading the tag, LED light change from red to green.


Detecting device is connected
Open the Device Manager of computer, If appears Humans Input Device that means Reader has successfully into computer.
Precautions
1. Do not install the reader on the magnetic objects and metal objects, they will seriously affect the RF signal.
2. If after reading, the tag is still in the induction zone, the RF reader will not send data and without any hints.


Common problems
1. Operation without feedback: Please check whether the interface plugged in, whether the tag is a valid or whether another RF tag is within the reading range.
2. Data error: Please check Whether the mouse is moved, whether the reader is in a critical state and whether the cable length is too long.
