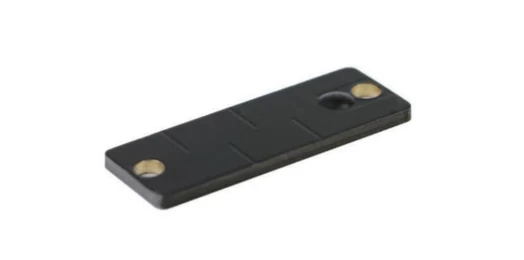

Functional specifications：

Protocol： EPC Class1 Gen2; ISO18000-6C

Frequency： 902-928MHZ ； 866-868MHZ

IC type： Alien higg4

Memory：EPC 96bit   User memory 512bit

Write cycles：100,000tiems

Size：42*15MM, Thickness 2MM ，Hole 4MM*2

Operation Temperature：-20℃ to 180℃

Storage Temperature：-40℃ to 280℃(280℃ for 50minutes,  250℃ for 150minutes)

Weight：2.2g

Material：High temperature resistant material

IP rating：IP68

RF Specification：

Read range：650CM-(902-928MHZ)（Fix reader:Thingmagic M6E，4W EIRP）

650CM-(865-868MHZ)（Fix reader:Thingmagic M6E，4W EIRP）

Read range：350CM-(902-928MHZ)（Handheld reader , 2W EIRP）

350CM-(865-868MHZ) （Handheld reader , 2W EIRP）

Test：100% test with Voyantic

Mounting：3M back glue or Screw

Certifications: Reach Approved , RoHS Approved, CE Approved

Individualization: Write EPC，Laser code，Printing LOGO
