UHF Male to BNC Female Jack RF Connector Adaptor

TNC adapters Features:

  • Allow to interface UHF connectors with BNC, F, N, SMA, TNC or UHF connectors;
  • Has female to female, female to male, male to female, male to male or male to plug gender combinations;
  • Has straight or right angle sharp;
  • Has bulkhead or mountless configurations;
  • Threaded coupling;
  • Ease of assembly;
  • Use in low frequency systems from 0.6 - 300 MHz.

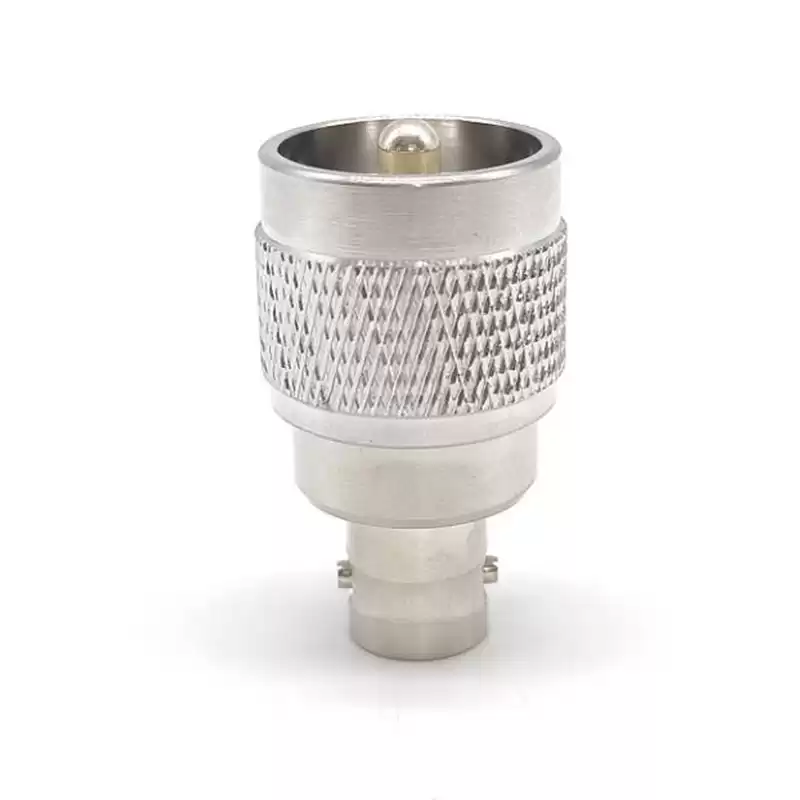

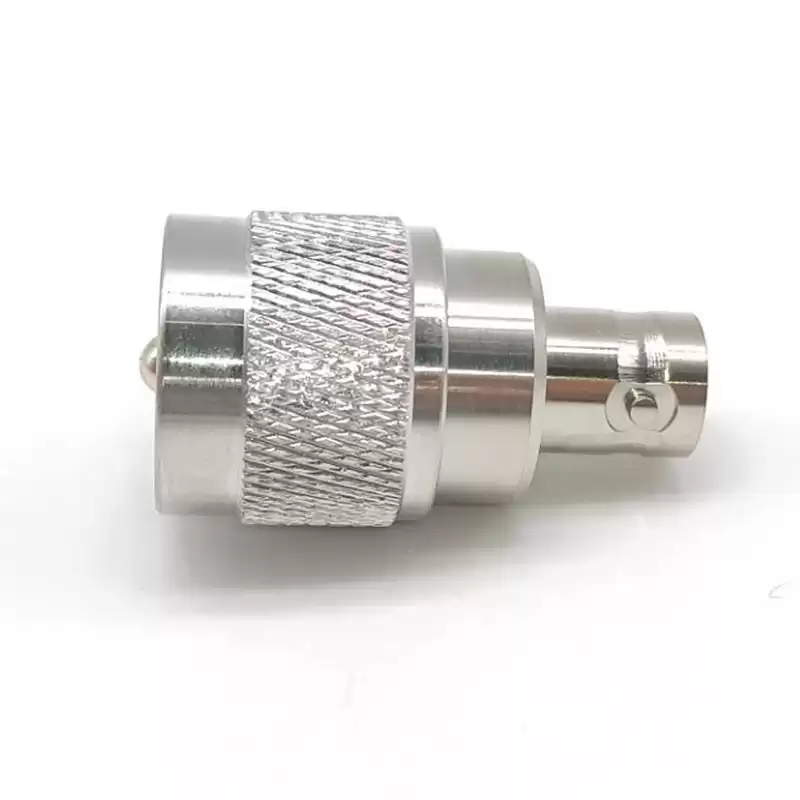

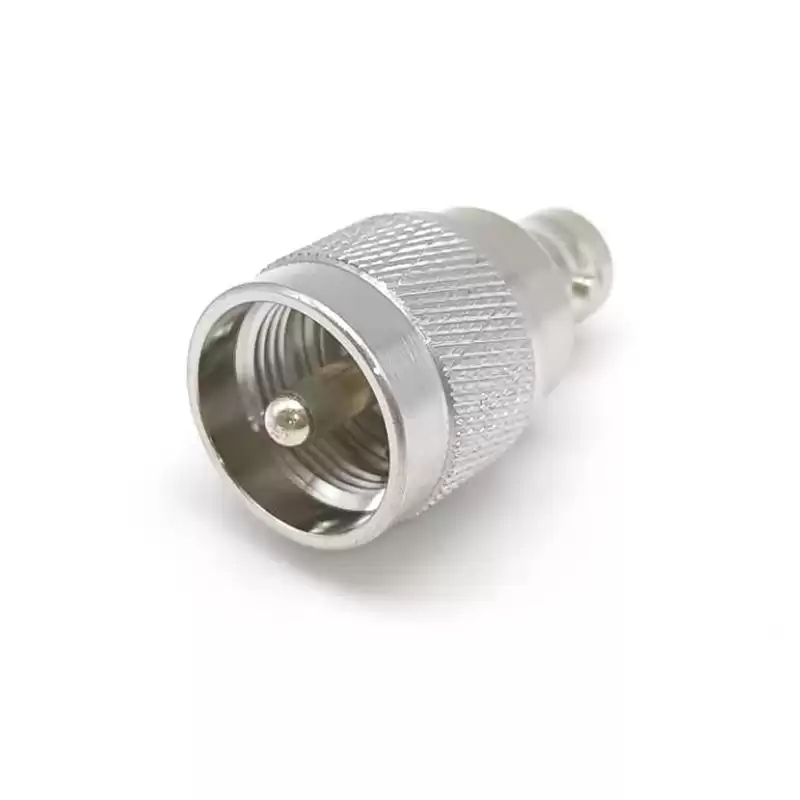

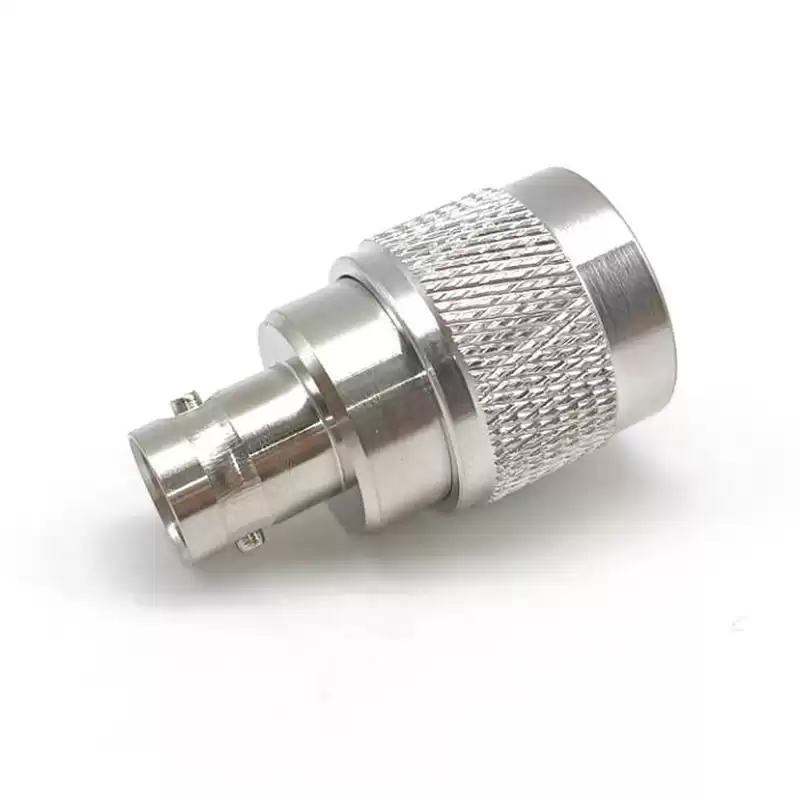

UHF Male to BNC Female Jack RF Connector Adaptor



The UHF Adapter has different UHF to BNC adapter gender, that is between a series coaxial adapter, The UHF to BNC adapters has female to female, female to male, male to female or male to male gender. This UHF male to BNC female adapter has a maximum frequency of 300MHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series UHF
Adapter Side 1 Style Male
Adapter Side 2 Series BNC
Adapter Side 2 Style Female
Frequency (Max GHz) 300MHz
Impedance (Ohms) 50
Low PIM No
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material PTFE



Applications

  • Civil wave band communication system
  • Closed-circuit television
  • Car radio device products
  • General Purpose Test
